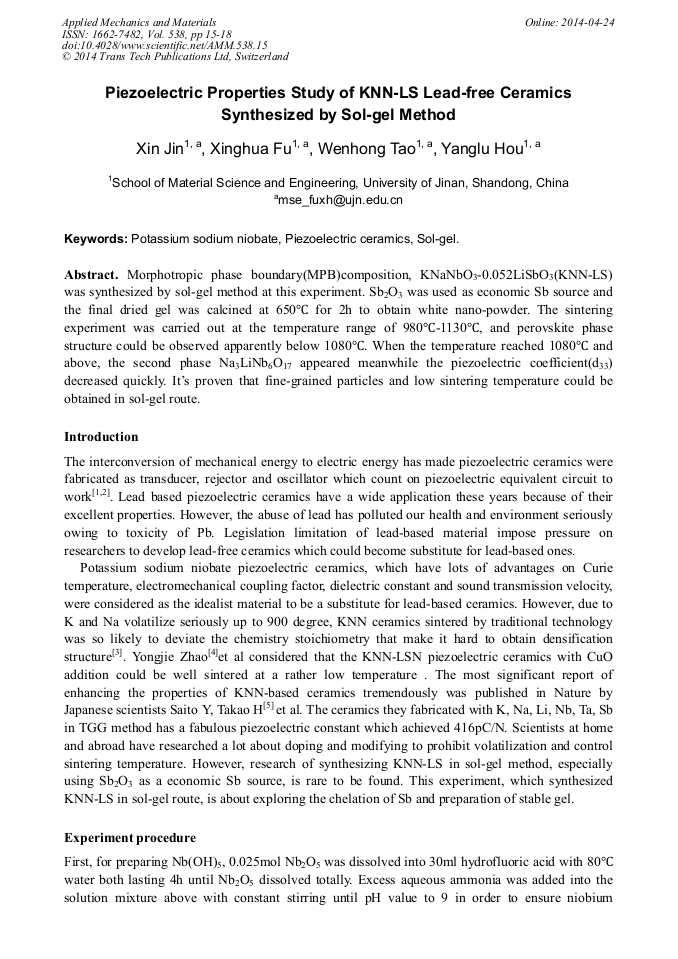

Piezoelectric Properties Study of KNN-LS Lead-Free Ceramics Synthesized by Sol-Gel Method

Abstract:

Morphotropic phase boundary (MPB) composition, KNaNbO₃-0.052LiSbO₃(KNN-LS) was synthesized by sol-gel method at this experiment. Sb₂O₃ was used as economic Sb source and the final dried gel was calcined at 650°C for 2h to obtain white nanopowder. The sintering experiment was carried out at the temperature range of 980°C-1130°C, and perovskite phase structure could be observed apparently below 1080°C. When the temperature reached 1080°C and above, the second phase Na₃LiNb₆O₁₇ appeared meanwhile the piezoelectric coefficient (d₃₃) decreased quickly. Its proven that fine-grained particles and low sintering temperature could be obtained in sol-gel route.

You might also be interested in these eBooks

Mechanical, Electronic and Engineering Technologies (ICMEET 2014)

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 538)

Pages:

15-18

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.538.15

Citation:

Cite this paper

Online since:

April 2014

Authors:

Xin Jin*, Xing Hua Fu, Wen Hong Tao, Yang Lu Hou

Keywords:

Piezoelectric Ceramic (PZT), Potassium Sodium Niobate, Sol-Gel

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y ZHAO, Ql LI, Sl WANG et al. Progresses in Development and Applications of Lead-free Piezoelectric Ceramics[J]. Bulletin of the Chinese Ceramic Society. 2010, 29(3): 616-626.

Google Scholar

[2] Hq LV, Lm WU et al. Progresses of the Researches on KNN Based Lead-free Piezoelectric Ceramics[J]. Journal of Liaocheng University(Nat. Sci). 2012, 25(2): 43-46.

Google Scholar

[3] My WU. Progresses of the Researches on Piezoelectric Ceramics at Low Temperature Sintering [J]. China Science and Technology Information, 2010(10): 153-154.

Google Scholar

[4] Yj Zhao, Yzh Zhao, et al. Microstructure and Piezoelectric Properties of CuO-doped 0. 95(K0. 5Na0. 5)NbO3–0. 05Li(Nb0. 5Sb0. 5)O3 lead-free ceramics[J]. Journal of the European Ceramic Society, 2011(31): 1939–(1944).

DOI: 10.1016/j.jeurceramsoc.2011.04.018

Google Scholar

[5] Saito Y, Takao H, Tani T, et al. Lead-free piezoceramics[J]. Nature. 2004, 432: 84-87.

DOI: 10.1038/nature03028

Google Scholar

[6] Dq Zhang, Zc Qin et al. Study on synthesis and evolution of sodium potassium niobate ceramic powders by an oxalic acid-based sol-gel method[J]. J Sol-Gel Sci Technol 2011, 57: 31-35.

DOI: 10.1007/s10971-010-2320-8

Google Scholar

[7] Yl DENG, LIAO et al, 0. 94(K0. 5Na0. 5)NbO3-0. 06LiNbO3 Lead-Free Fine Powders Prepared by sol-gel Process[J]. Journal of China West Normal University(Natual Sciences). 2008, 29(4): 356-359.

Google Scholar
