Research on Dynamic Model of Rotors with Bearing Misalignment

Abstract:

Based on the structural and mechanics analysis of aero-engines rotor system, the dynamic model of the flexible rotor system with multi-supports are presented in order to solve the bearing misalignment problem of rotor system in aero-engines. The motion equations are derived through Lagrange method. The relationship between structural and mechanics characteristics parameters are built up. Finally, the dynamic influence of bearing misalignment on rotor system is divided into three kinds: additional rotor bending rigidity, additional bearing misalignment excitation force and additional imbalance. The equations suggest that additional imbalance excitation force activates the nonlinearity on rotor system and an additional 2× excitation force might appear.

You might also be interested in these eBooks

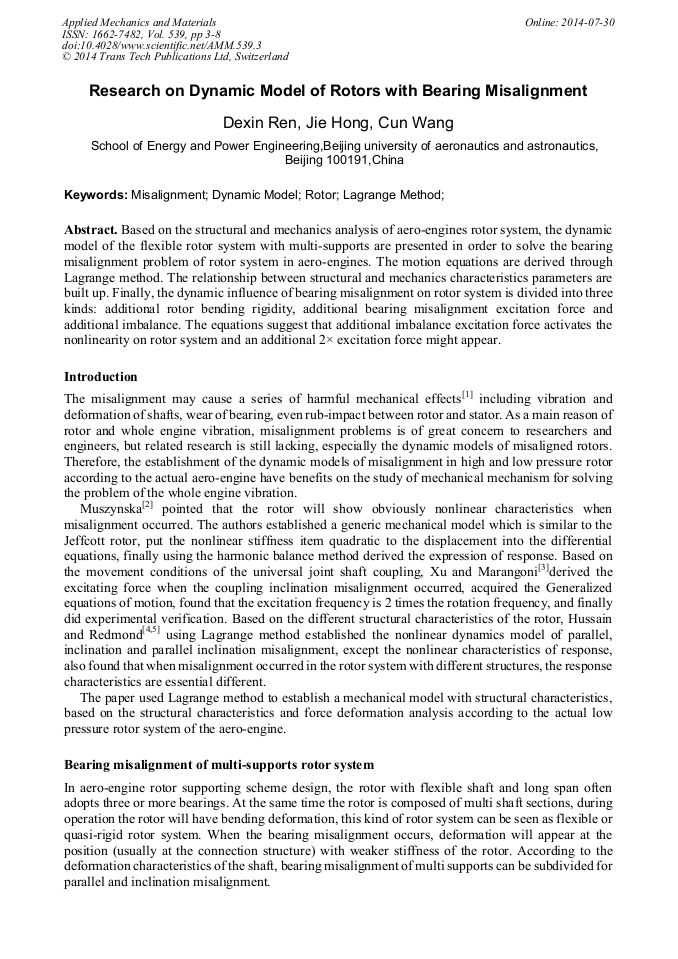

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 539)

Pages:

3-8

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.539.3

Citation:

Cite this paper

Online since:

July 2014

Authors:

De Xin Ren*, Jie Hong, Cun Wang

Keywords:

Dynamic Model, Lagrange Method, Misalignment, Rotor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Piotrowski J, 2007, Shaft alignment handbook,. New York: CRC Press.

Google Scholar

[2] Muszynska A, 2005, Rotordynamics, New York: CRCPress.

Google Scholar

[3] Xu M, Marangoni R D, 1994, Vibration analysis of a motor-flexible coupling-rotor system subject to misalignment and unbalance. Part I: Theoretical model analysis, Journal of Sound Vibration, 176(5), 663-679.

DOI: 10.1006/jsvi.1994.1405

Google Scholar

[4] Redmond I, 2010, Study of a misaligned flexibly coupled shaft system having nonlinear bearings and cyclic cou-pling stiffness-theoretical model and analysis, Journal of Sound and Vibration, 329(6): 700-720.

DOI: 10.1016/j.jsv.2009.09.039

Google Scholar

[5] Hussain K M, 2003, Dynamic stability of two rigid rotors connected by a flexible coupling with angular misalignment, Journal of Sound and Vibration, 266(2): 217-234.

DOI: 10.1016/s0022-460x(02)01627-9

Google Scholar
