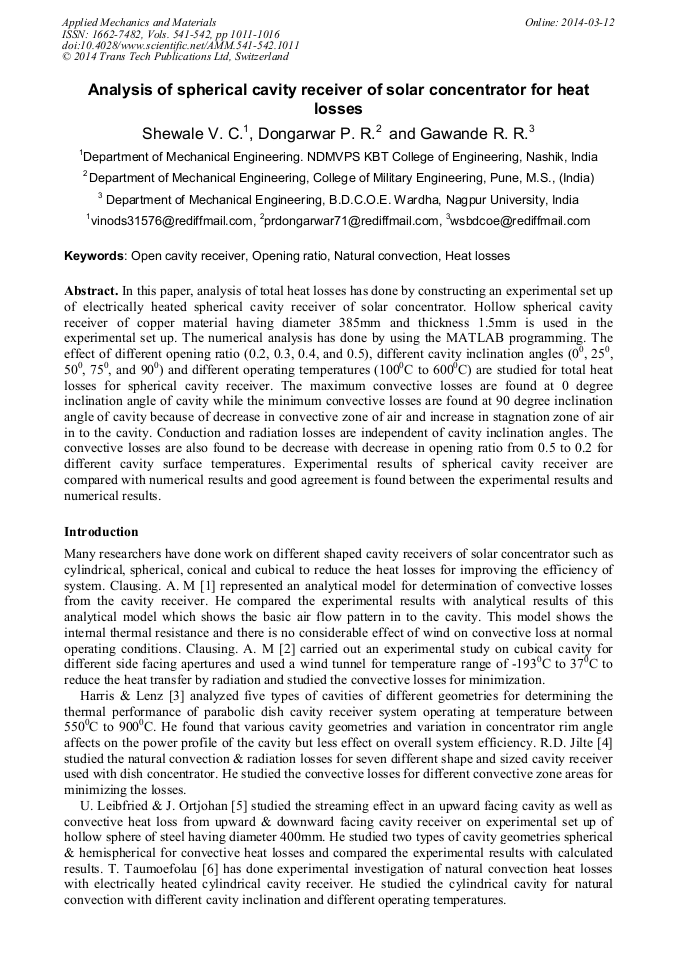

Analysis of Spherical Cavity Receiver of Solar Concentrator for Heat Losses

Abstract:

In this paper, analysis of total heat losses has done by constructing an experimental set up of electrically heated spherical cavity receiver of solar concentrator. Hollow spherical cavity receiver of copper material having diameter 385mm and thickness 1.5mm is used in the experimental set up. The numerical analysis has done by using the MATLAB programming. The effect of different opening ratio (0.2, 0.3, 0.4, and 0.5), different cavity inclination angles (0⁰, 25⁰, 50⁰, 75⁰, and 90⁰) and different operating temperatures (100°C to 600°C) are studied for total heat losses for spherical cavity receiver. The maximum convective losses are found at 0 degree inclination angle of cavity while the minimum convective losses are found at 90 degree inclination angle of cavity because of decrease in convective zone of air and increase in stagnation zone of air in to the cavity. Conduction and radiation losses are independent of cavity inclination angles. The convective losses are also found to be decrease with decrease in opening ratio from 0.5 to 0.2 for different cavity surface temperatures. Experimental results of spherical cavity receiver are compared with numerical results and good agreement is found between the experimental results and numerical results.

• Periodical: Applied Mechanics and Materials (Volumes 541-542)
• Pages: 1011-1016
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.541-542.1011
• Online since: March 2014
• Authors: V.C. Shewale*, P.R. Dongarwar, R.R. Gawande
• Keywords: Heat Loss, Natural Convection, Open Cavity Receiver, Opening Ratio

References

[1] Clausing, A. M., 'An Analysis of Convective Losses From Cavity Solar Central Receivers, ', Sol. Energy, 27 (1981), p.295–300.

DOI: 10.1016/0038-092x(81)90062-1

[2] Clausing, A. M., Waldvogel, J. M., and Lister, L. D., 'Natural Convection From Isothermal Cubical Cavities With a Variety of Side Facing Apertures, ', ASME J. Heat Transfer Trans., 109 (1987), p.407–412.

DOI: 10.1115/1.3248095

[3] Harris, J. A., and Lenz, T. G., 'Thermal Performance of Concentrator/ Cavity Receiver Systems, ', Sol. Energy, 34 (1985), p.135–142.

DOI: 10.1016/0038-092x(85)90170-7

[4] R.D. Jilte, S.B. Kedare, & J.K. Nayak, Natural convection & radiation heat loss from open cavities of different shapes & sizes used with dish concentrator., http: /dx. doi. org/10. 5539/mer. v3n1p25.

DOI: 10.5539/mer.v3n1p25

[5] Leibfried, U., and Ortjohann, J., 'Convective Heat Loss from Upward and Downward-Facing Cavity Solar Receivers: Measurements and Calculations, ', J. Sol. Energy Eng., 117 (1995), p.75–84.

DOI: 10.1115/1.2870873

[6] T. Taumoefolau, S. Paitoonsurikarn, G. Hughes, K. Lovegrove, "Experimental investigation of natural convection heat loss from a model solar concentrator cavity receiver, Journal of Solar Energy Engineering 126 (2004), 801-807.

DOI: 10.1115/1.1687403

[7] N. Sendhil Kumar, K.S. Reddy. " Study of combined natural convection and surface radiation heat transfer in a Modified cavity receiver of solar parabolic dish. International Journal of Thermal Sciences, 47 (2008), 1647-1657.

DOI: 10.1016/j.ijthermalsci.2007.12.001

[8] Stine, W. B., and McDonald, C. G., 'Cavity Receiver Heat Loss Measurements, ', Proc. Of ISES World Congress, Kobe, Japan. (1989), pp.1318-1322.

[9] Prakash, M.; Kedare, S.B.; and Nayak, J.K., " Numerical study of natural convection loss from opens cavities. International Journal of Thermal Sciences, 51 (2012) 23-30.

DOI: 10.1016/j.ijthermalsci.2011.08.012

[10] Barahate S.D., Prakash M., Kedare S.B., Heat loss analysis of cavity receivers for solar concentrators, Proceeding of IMECE2004 International Mechanical Engineering Conference and Expo, Kuwait, 2004, pp.136-152.
