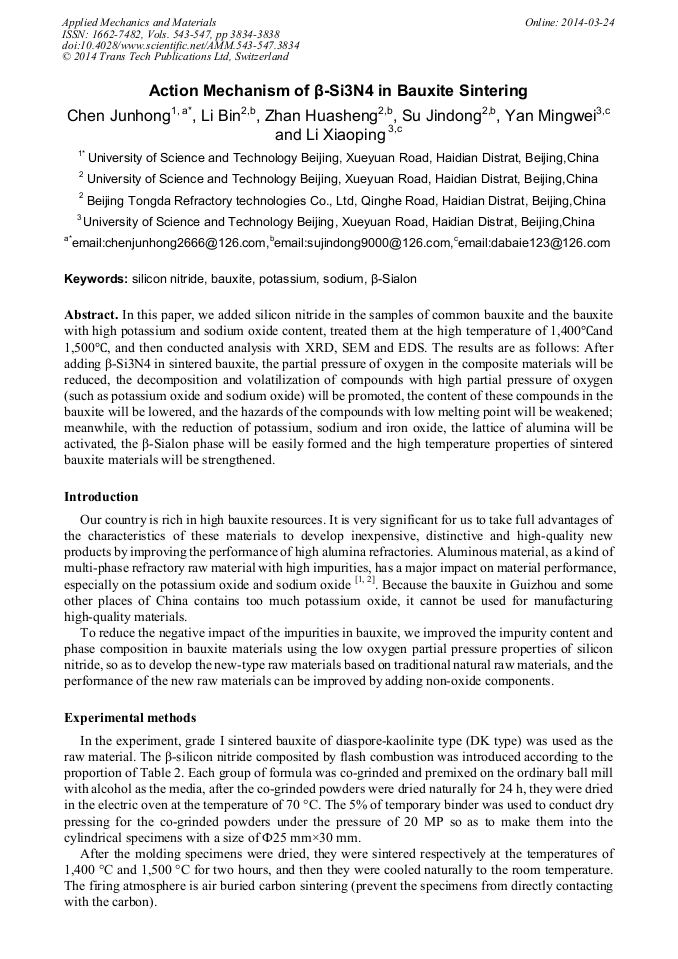

Action Mechanism of β-Si3N4 in Bauxite Sintering

Abstract:

In this paper, we added silicon nitride in the samples of common bauxite and the bauxite with high potassium and sodium oxide content, treated them at the high temperature of 1,400°Cand 1,500°C, and then conducted analysis with XRD, SEM and EDS. The results are as follows: After adding β-Si3N4 in sintered bauxite, the partial pressure of oxygen in the composite materials will be reduced, the decomposition and volatilization of compounds with high partial pressure of oxygen (such as potassium oxide and sodium oxide) will be promoted, the content of these compounds in the bauxite will be lowered, and the hazards of the compounds with low melting point will be weakened; meanwhile, with the reduction of potassium, sodium and iron oxide, the lattice of alumina will be activated, the β-Sialon phase will be easily formed and the high temperature properties of sintered bauxite materials will be strengthened.

• Periodical: Applied Mechanics and Materials (Volumes 543-547)
• Pages: 3834-3838
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.543-547.3834
• Online since: March 2014
• Authors: Jun Hong Chen*, Bin Li, Hua Sheng Zhan, Jin Dong Su, Ming Wei Yan, Xiao Ping Li
• Keywords: Bauxite, Potassium, Silicon Nitride, Sodium, Β-Sialon

References

[1] Zhang Lanyin, Sun Gengchen, Zhong Xiangchong. The effect of CaO additive on the phase composition, microstructure and high temperature mechanical properties of sintered bauxites. Bulletin of the Chinese Cerrmic Society. 1998, 16(5): 438-445.

[2] Li Nan, Wu Qingfeng, Bi Shuhui, et al. The relationship between K2O content in alumina and composition of its sintering clinker phase. Bulletin of the Chinese Cerrmic Society. 1984, 3(6): 7-4.

[3] Chen Zhaoyou. Chemical Thermodynamics of Refractorics. Beijing: Metallurgical Industry Press. (2005).

[4] Wang Jinxiang, ZhongXiangchon. The effects of potassium oxide and iron oxide additions on the phase composition of sintered bauxites (DK TYPE). Bulletin of the Chinese Cerrmic Society. 1984, 12(1): 75-82.

[5] Sun Gengchen, ZhongXiangchong. The effects of zircon addition on the microstructure and high temperature mechanical properties of sintered bauxites. Bulletin of the Chinese Cerrmic Society. 1987, 15(5): 445-453.

[6] Qiu Wendong, Wang Xizhang, Sun Jialin et al. Study on microstructure of zirconia-mullite decomposition in alumina-zirconia-carbon slide gate. NaihuoCailiao. 1999, 33(1): 9.

[7] Hou Xinmei, Zhong Xiangchong. Investigation on synthesis of SiAlON from bauxite and silicon powder. NaihuoCailiao. 2005, 39(5): 333.
