Numerical Analysis on High Speed Liquid-Solid Impact of 17-4PH Material

Abstract:

In this paper, anaxis-symmetry mode is set up to simulate the high speed liquid-solid impact of 17-4ph material, which is widely used inwet steam turbine bladesof the nuclear power units. The initial speed of the droplet with the diameter of 0.3mm is 400m/s. The deformation of the solid and the stress distribution variation with time are obtained via numerical method. And the variation of the pressure inside the droplet and solid target has also been analyzed in detail. In this case, the maximum pressure in the vertical direction of the solid is 1099MPa, and the maximum deformation distance of the plateis 140nm. The results provide useful supplement and reference to the high-speed liquid-solid impact theory.

You might also be interested in these eBooks

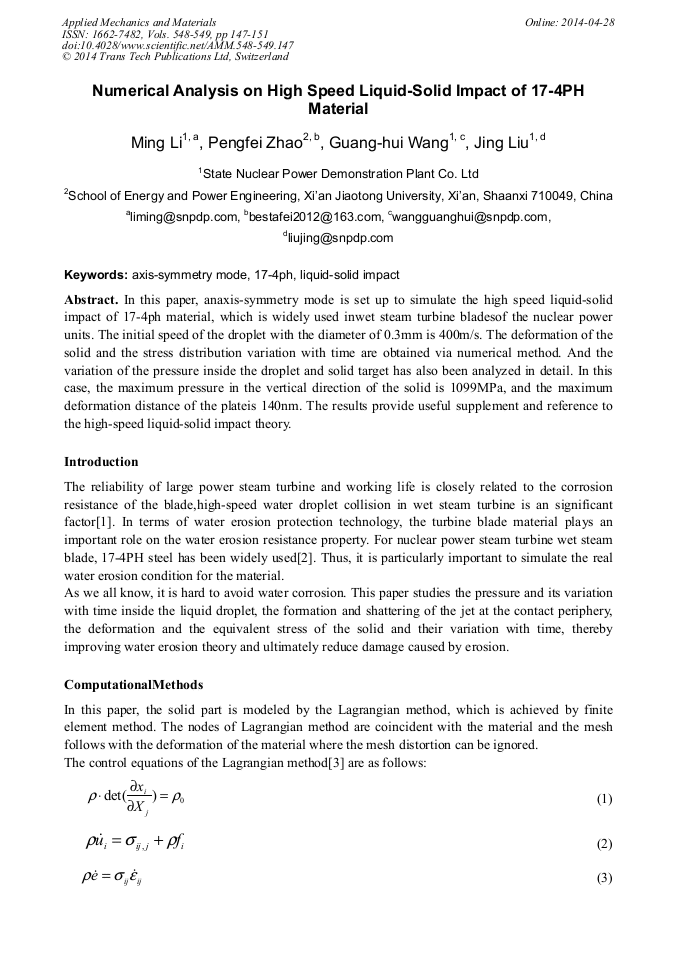

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 548-549)

Pages:

147-151

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.548-549.147

Citation:

Cite this paper

Online since:

April 2014

Authors:

Ming Li*, Peng Fei Zhao, Guang Hui Wang, Jing Liu

Keywords:

17-4PH, Axis-Symmetry Mode, Liquid-Solid Impact

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] DU Zhanbo. Experimental and numerical study of gas-liquid two-phase 3-D movement in the stator cascade of wet steam turbine [D]. Xi'an: Xi'an Jiaotong University, 2003(in Chinese).

Google Scholar

[2] Hsiao C N, Chiou C S, Yong J R. Aging Reactions in a l 7-4PH Stainless Steel fJ1[J]. Materials Chemistry and Physics, 2O02, 74: 132-l42.

Google Scholar

[3] Aquelet N, Souli M, Olovsson L. Euler–Lagrange coupling with damping effects: Application to slamming problems[J]. Computer methods in applied mechanics and engineering, 2006, 195(1): 110-132.

DOI: 10.1016/j.cma.2005.01.010

Google Scholar

[4] Youngs D L. Time-dependent multi-material flow with large fluid distortion[J]. Numerical methods for fluid dynamics, 1982, 24: 273-285.

Google Scholar

[5] Liu M B, Liu G R, Lam K Y. Investigations into water mitigation using a meshless particle method[J]. Shock waves, 2002, 12(3): 181-195.

DOI: 10.1007/s00193-002-0163-0

Google Scholar
