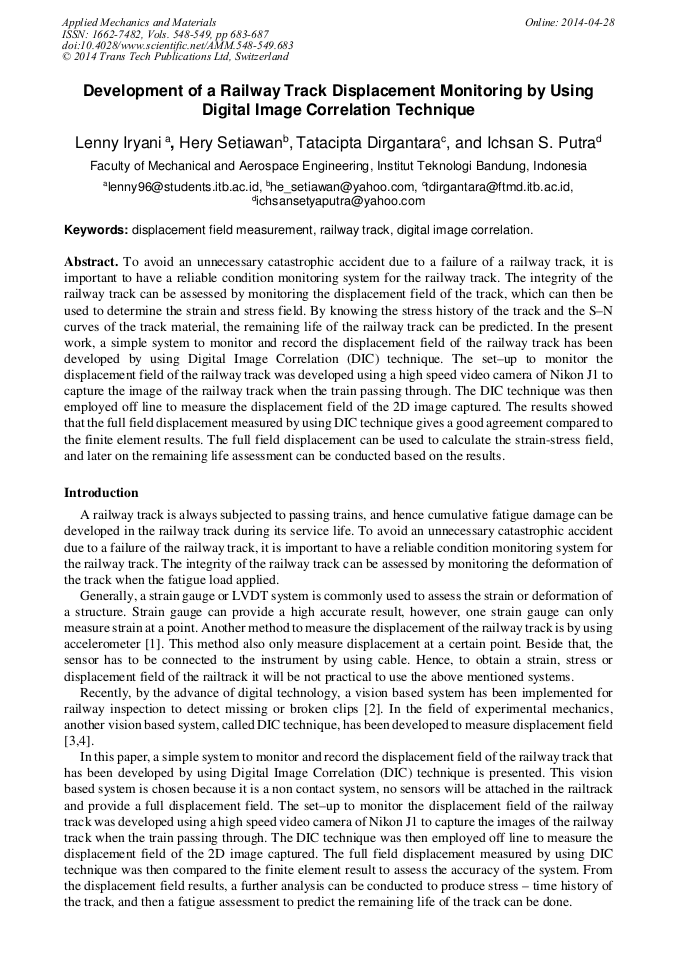

Development of a Railway Track Displacement Monitoring by Using Digital Image Correlation Technique

Abstract:

To avoid an unnecessary catastrophic accident due to a failure of a railway track, it is important to have a reliable condition monitoring system for the railway track. The integrity of the railway track can be assessed by monitoring the displacement field of the track, which can then be used to determine the strain and stress field. By knowing the stress history of the track and the S–N curves of the track material, the remaining life of the railway track can be predicted. In the present work, a simple system to monitor and record the displacement field of the railway track has been developed by using Digital Image Correlation (DIC) technique. The set–up to monitor the displacement field of the railway track was developed using a high speed video camera of Nikon J1 to capture the image of the railway track when the train passing through. The DIC technique was then employed off line to measure the displacement field of the 2D image captured. The results showed that the full field displacement measured by using DIC technique gives a good agreement compared to the finite element results. The full field displacement can be used to calculate the strain-stress field, and later on the remaining life assessment can be conducted based on the results.

• Periodical: Applied Mechanics and Materials (Volumes 548-549)
• Pages: 683-687
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.548-549.683
• Online since: April 2014
• Authors: Lenny Iryani*, Hery Setiawan, Tatacipta Dirgantara, Ichsan Setya Putra
• Keywords: Digital Image Correlation (DIC), Displacement Field Measurement, Railway Track

References

[1] Dr. M. E. Heelis, Dr. A.C. Collop, A.R. Dawson, Dr. D.N. Chapman, Prof. Victor Krylov: Predicting and measuring vertical track displacements on soft subgrades. Loughborough University, 1999. Conference Papers and Contributions (Aeronautical and Automotive Engineering). https: /dspace. lboro. ac. uk/2134/11609.

[2] Maneesha Singh, Sameer Singh, Jay Jaiswal, John Hempshall. Autonomous Rail Track Inspection using Vision Based System. Computational Intelligence for Homeland Security and Personel Safety. Alexandria, VA, USA, (2006).

DOI: 10.1109/cihsps.2006.313313

[3] W. H. Peters and W. F. Ranson: Digital imaging techniques in experimental stress analysis. Optical Engineering, 21(3), (1982), p.427–431.

[4] M. A. Sutton,W. J. Wolters,W. H. Peters,W. F. Ranson, and S. R. McNeill: Determination of displacements using an improved digital correlation method. Image and Vision Computing, 1(3), August (1983), p.133–139.

DOI: 10.1016/0262-8856(83)90064-1

[5] L. Louis, T. -F. Wong, and P. Baud: Imaging strain localization by X-ray radiography and digital image correlation: Deformation bands in Rothbach sandstone. Journal of Structural Geology, 29(1), January (2007), p.129–140.

DOI: 10.1016/j.jsg.2006.07.015

[6] T. Dirgantara , A. S. Jaya, and I. S. Putra, Performance Evaluation Of The Correlation And Smoothing Methods Of The Digital Image Correlation And Its Application To The Opening Specimens, Proc. SPIE 7522, Fourth International Conference on Experimental Mechanics, 75224J (April 14, 2010); doi: 10. 1117/12. 851751.

DOI: 10.1117/12.851751

[7] S. Yoneyama, T. Ogawa, and Y. Kobayashi: Evaluating mixed-mode stress intensity factors from full-field displacement fields obtained by optical methods. Engineering Fracture Mechanics, 74(9), June (2007), p.1399–1412.

DOI: 10.1016/j.engfracmech.2006.08.004

[8] L. Iryani, T. Dirgantara, S. Mihradi, I. S. Putra: The Effect of DIC Parameters in the Measurement of KI and KII, Journal of Mechanical Engineering, Vol. 10 No. 1, (2013).

[9] Bing Pan, Kemao Qian, Huimin Xie and Anand Asundi. Two-dimensional digital image correlation for in-plane displacement and strain measurement: a review. Measurement Science and Technology, Meas. Sci. Technol. 20 (2009) 062001 (17pp).

DOI: 10.1088/0957-0233/20/6/062001
