The Fully Digital Controlled Corrector Magnet Power Converter with a Shunt as a Current Sensing Component

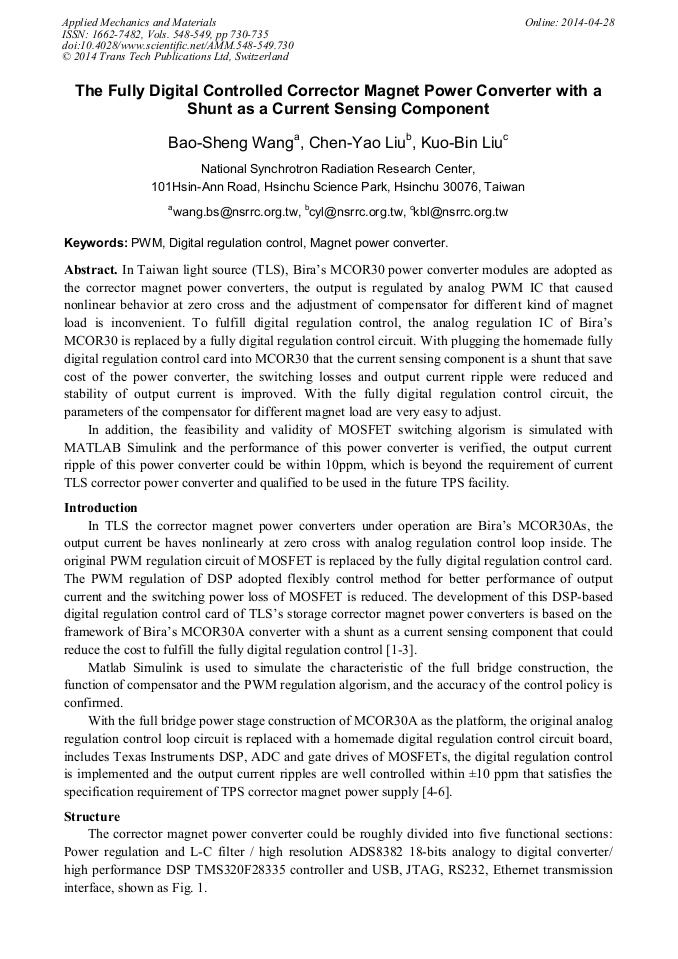

Abstract:

In Taiwan light source (TLS), Bira’s MCOR30 power converter modules are adopted as the corrector magnet power converters, the output is regulated by analog PWM IC that caused nonlinear behavior at zero cross and the adjustment of compensator for different kind of magnet load is inconvenient. To fulfill digital regulation control, the analog regulation IC of Bira’s MCOR30 is replaced by a fully digital regulation control circuit. With plugging the homemade fully digital regulation control card into MCOR30 that the current sensing component is a shunt that save cost of the power converter, the switching losses and output current ripple were reduced and stability of output current is improved. With the fully digital regulation control circuit, the parameters of the compensator for different magnet load are very easy to adjust. In addition, the feasibility and validity of MOSFET switching algorism is simulated with MATLAB Simulink and the performance of this power converter is verified, the output current ripple of this power converter could be within 10ppm, which is beyond the requirement of current TLS corrector power converter and qualified to be used in the future TPS facility.

• Periodical: Applied Mechanics and Materials (Volumes 548-549)
• Pages: 730-735
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.548-549.730
• Online since: April 2014
• Authors: Bao Sheng Wang, Chen Yao Liu, Kuo Bin Liu
• Keywords: Digital Regulation Control, Magnet Power Converter, PWM

References

[1] Information on http: /www. bira. com/products/bipolar_power_supply.

[2] C. Rodrigues and A. R. Silva: A New DC Bipolar Current Source For Orbit Corrector, COBEP'05, Recife, June (2005), p.636.

[3] K. B. Liu, Y. D. Li, B.S. Wang and K. T. Hsu: TPS Magnet Power Supply System, IPAC'10 conference, May (2010).

[4] Yao-Ching Hsieh, Wei-Guang Chen, Chen-Yao Liu: Charge-Equalization Circuit for Series-Connected Batteries with Quasi-resonant Flyback Converters, EPE Journal, Vol. 20 N°3, September (2010), p.34~39.

DOI: 10.1080/09398368.2010.11463767

[5] K.H. Park, S.H. Jeong, D.E. Kim, B.K. Kang: High Resolution Voltage Reference for Magnet Power Supply, Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, Vol. 607, No. 3, Aug. (2009).

DOI: 10.1016/j.nima.2009.06.054

[6] A. C. de Lira, J. A. Pomilio, D. Wisnivesky: Power Supplies for the LNLS Magnets, PAC-89, Chicago, March (1898), p.1922.

DOI: 10.1109/pac.1989.72970

[7] Chen-Yao Liu and Yi-Da Li: Design and Implementation a Resonant DC Power Bus, IPAC (2010), Kudo, Japan.

[8] V. S. Kashikhin et al. : A New Correction Magnet Package for the Fermilab Booster Synchrotron, in Proc. of (2005) PAC, Knoxville, Tennessee, pp.1204-1206.

[9] A. C. de Lira, A. R. Silva, L. H. Oliveira and G. Monteiro: Power Supplies for the 500Mev Booster Synchrotron at the Brazilian Synchrotron Light Laboratory, COBEP'01, Florianopolis, November (2001), p.541.

[10] E.J. Prebys, et al.: New Corrector System for the Fermilab Booster, MOPAS016, PAC '07(2007).

[11] Information on http: /www. ti. com.

[12] Information on http: /en. wikipedia. org/wiki/PID_controller.

[13] William J. Palm III: MATLAB for Engineering Applications, McGraw-Hill, Inc. (1999).

[14] M. Fathizadeh: Design and Simulation of High Accuracy Power Supplies for Injector Synchrotron Dipole Magnets, Particle Accelerator Conference, (1991).

DOI: 10.1109/pac.1991.164489
