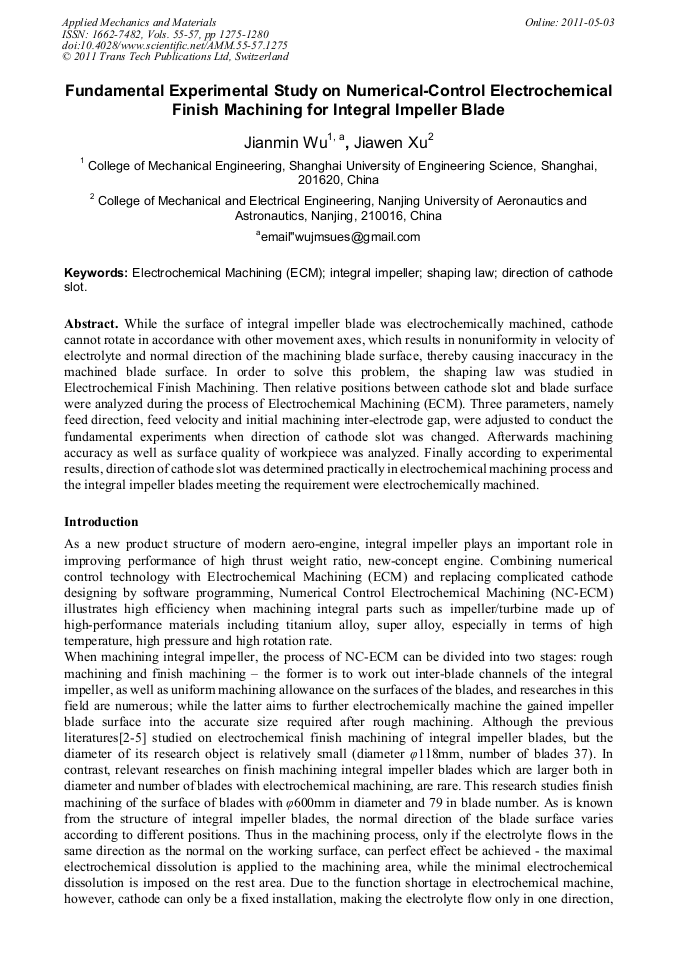

Fundamental Experimental Study on Numerical-Control Electrochemical Finish Machining for Integral Impeller Blade

Abstract:

While the surface of integral impeller blade was electrochemically machined, cathode cannot rotate in accordance with other movement axes, which results in nonuniformity in velocity of electrolyte and normal direction of the machining blade surface, thereby causing inaccuracy in the machined blade surface. In order to solve this problem, the shaping law was studied in Electrochemical Finish Machining. Then relative positions between cathode slot and blade surface were analyzed during the process of Electrochemical Machining (ECM). Three parameters, namely feed direction, feed velocity and initial machining inter-electrode gap, were adjusted to conduct the fundamental experiments when direction of cathode slot was changed. Afterwards machining accuracy as well as surface quality of workpiece was analyzed. Finally according to experimental results, direction of cathode slot was determined practically in electrochemical machining process and the integral impeller blades meeting the requirement were electrochemically machined.

• Periodical: Applied Mechanics and Materials (Volumes 55-57)
• Pages: 1275-1280
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.55-57.1275
• Online since: May 2011
• Authors: Jian Min Wu, Jia Wen Xu
• Keywords: Direction of Cathode Slot, Electrochemical Machining (ECM), Integral Impeller, Shaping Law

References

[1] Xu Jiawen, Yun Naizhang, Yan Derong. Research, Application and Development of Numerically Controlled Electrochemical Machining of Blisk [J]. Machinery & Electrical New Products Guide, 2006, (10): 40-42.

[2] Kang Min, Xu Jiawen. Determination of Tool – cathode Movement Path of Precision Electrochemical Contour Evolution Machining of Integral Impeller [J], CHINA MECHANICAL ENGINEERING, 2006, 17(4): 346-349.

[3] Kang Min, Xu Jiawen. Technology of Precision Electrochemical Contour Evolution Machining of Integral Impeller [J], Transactions of the Chinese Society for Agricultural Machinery, 2006，37(7)：208-210.

[4] KANG Min, XU Jia-wen. Studies on the Algorithm for Precision Electrochemical Contour Evolution Machining of Integral Impeller [J]. Mechanical Science and Technology, 2002, 21(5): 748-750.

[5] Gan Weimin. Fundamental Research on Numerically Electrochemical Contour Evolution Grinding Integral Impeller [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, (2003).

[6] Kang Min. Study on Precision Electrochemical Contour Evolution Machining of Integral Impeller [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, (2003).

[7] Wang Jianye, Xu Jiawen. Principle and its Application of Electrochemical Machining(ECM) [M]. National Defence Industry Press, (2001).

[8] Wu Jianmin. Research on the Large Diameter Integral Impeller with Numerical Control Electrochemical Machining [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, (2008).
