Research on Vibration Characteristics of Horn with Longitudinal Bending Vibration

Abstract:

Based on the theory of the chute can achieve single excitation longitudinal and bending vibration, design chute horn with longitudinal bending vibration . Using finite element analysis method combined with experiment,research on vibration characteristics of horn with longitudinal bending vibration, obtained the resonance frequency and the amplitude of longitudinal and bending of the horn, in different angle and the number of chute .Verified it can realize longitudinal bending complex vibration by opening chute on the horn, and in the different chute, and gained variation of the resonance frequency and the amplitude of longitudinal and bending of the horn, in different angle and the number of chute ,to lay the foundation for the two-dimensional ultrasonic vibration in ultraprecision cutting.

You might also be interested in these eBooks

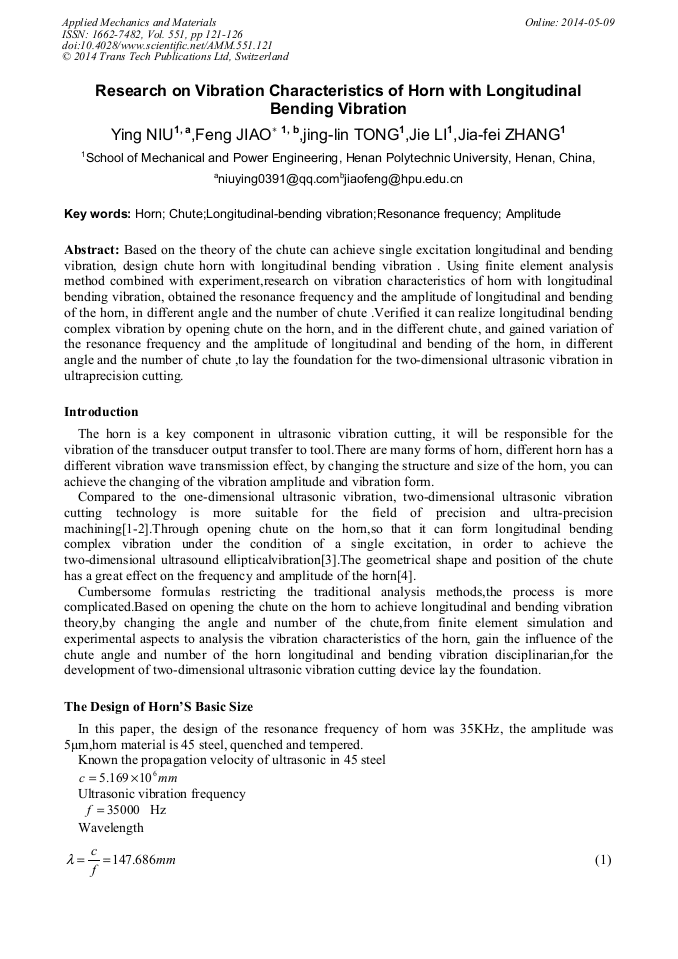

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 551)

Pages:

121-126

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.551.121

Citation:

Cite this paper

Online since:

May 2014

Authors:

Ying Niu, Feng Jiao*, Jing Lin Tong, Jie Li, Jia Fei Zhang

Keywords:

Amplitude, Chute, Horn, Longitudinal-Bending Vibration, Resonance Frequency

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Brinksmeier E, Glabe. R, Elliptical vibration cutting steel with diamond tools, In: Proc. Of 14th AnnualASPE Meeting, 1999(S): 163-166.

Google Scholar

[2] ChunxiangMa, Shamoto. E. Suppression of chatter in turning by elliptical vibration cutting, Mem . of Grad. School Sci&Technol. KobeUniv, 1999(17A): 17-62.

Google Scholar

[3] HuaLi, Zhang Deyuan. Study on New Elliptic Ultrasonic Vibration System Excited by Single Longitudinal Vibration. China Mechanical Engineering, 2005, 16(22): 1983-(1990).

Google Scholar

[4] GuofuGao. Research on dressing of Diamond Grinding Wheel with elliptical ultrasonic vibration and grinding performance. [Dissertation]. (2008).

Google Scholar

[5] XunLi. Research Situation of the Ultra-sonic Vibration Turning Technology[Dissertation]. (2007).

Google Scholar
