Experimental Study on Diesel Engine Intake Ports with Reverse Engineering Technology

Abstract:

Compared the principle and application effect of non-contact measuring data collecting method of intake ports: the nondestructive scanning method and laser scanning method. A intake port was developed for a four-valve diesel engine with reverse engineering technology, and different core boxes of intake port were made respectively by different measureing and manufacturing method, and were investigated in the steady-flow test with the original cylinder head of the diesel engine. The results show that the performance of the metal core box based on laser scanning is consistent with the original cylinder head. Compared with the epoxy resin core box based on nondestructive scanning method, the metal core box based on laser scanning can satisfy the requirement of development of intake port.

You might also be interested in these eBooks

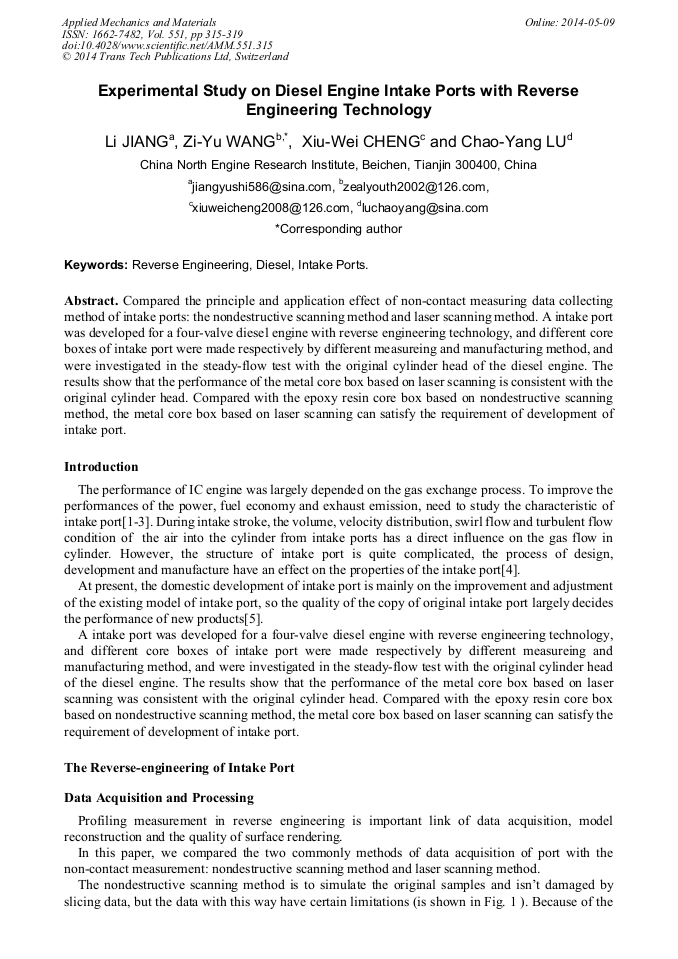

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 551)

Pages:

315-319

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.551.315

Citation:

Cite this paper

Online since:

May 2014

Authors:

Li Jiang, Zi Yu Wang*, Xiu Wei Cheng, Chao Yang Lu

Keywords:

Diesel, Intake Ports, Reverse Engineering

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Kang K Y, Reitz R D, The Effect of Intake Valve Alignment on Swirl Generation in a DI Diesel Engine, J. Experimental Thermal and Fluid Science, 20 (1999) 94-103.

DOI: 10.1016/s0894-1777(99)00034-5

Google Scholar

[2] Liu S L, Li Y F, Gong X H, et al, Effects of Combination and Orientation of Intake Ports on Swirl in Four-valve DI Diesel Engine, J. Transactions of CSICE, 19 (2001) 209-214. ( In Chinese ).

Google Scholar

[3] Wang T Y, Lin R W, Liu S L, et al, Study on Steady Flow Test Method for Inlet Port of DI Diesel Engine with Variable Pressure Drop, J. Transactions of CSICE, 23(2005) 131-136. ( In Chinese ).

Google Scholar

[4] Zhao C L, Zhou L, Yue Y S, et al, Improvement of Diesel Engine by Intake System Optimization, J. Transactions of CSICE, 21 (2003) 244-248. ( In Chinese ).

Google Scholar

[5] Feng W W, Sun P, Jiang C, et al, Application of Reverse Technique to the Design of Inlet Port, J. Machinery Design and Manufacture, 2 (2008) 52-54. ( In Chinese ).

Google Scholar

[6] Li L, Zhang S W, Xu J M, Research on Modeling of Diesel Engine Inlet Port Based on Reverse Technical, J. Manufacturing Automation, 18 (2011) 141-144. ( In Chinese ).

Google Scholar
