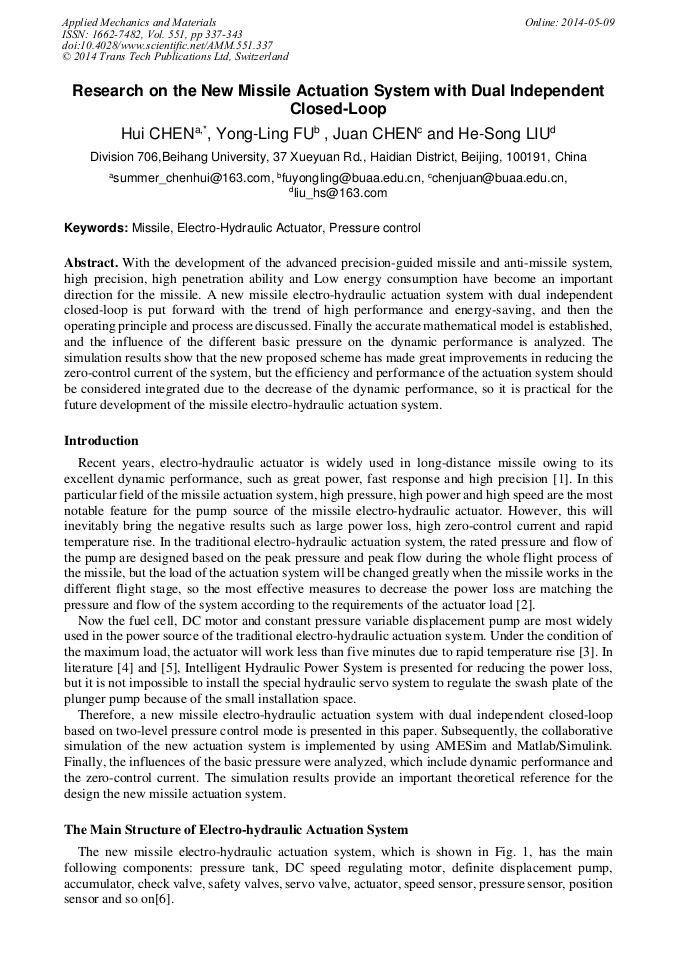

Research on the New Missile Actuation System with Dual Independent Closed-Loop

Abstract:

With the development of the advanced precision-guided missile and anti-missile system, high precision, high penetration ability and Low energy consumption have become an important direction for the missile. A new missile electro-hydraulic actuation system with dual independent closed-loop is put forward with the trend of high performance and energy-saving, and then the operating principle and process are discussed. Finally the accurate mathematical model is established, and the influence of the different basic pressure on the dynamic performance is analyzed. The simulation results show that the new proposed scheme has made great improvements in reducing the zero-control current of the system, but the efficiency and performance of the actuation system should be considered integrated due to the decrease of the dynamic performance, so it is practical for the future development of the missile electro-hydraulic actuation system.

• Periodical: Applied Mechanics and Materials (Volume 551)
• Pages: 337-343
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.551.337
• Online since: May 2014
• Authors: Hui Chen*, Yong Ling Fu, Juan Chen, He Song Liu
• Keywords: Electro-Hydraulic Actuator, Missile, Pressure Control

References

[1] X.D. Song, X.X. Yao, J.J. Wang, X.M. Wu. Reducing non-effective power of hydraulic actuator by variable-speed pumping source. [J]. Control Technology of Tactical Missile, 2009, 31 (1): 46-51.

[2] S Helduser. Electric-hydrostatic drive—an innovative energy-saving power and motion control system [J]. Proc Instn Mech Engrs Vol 213 Part I. 1999: 427-437.

DOI: 10.1243/0959651991540250

[3] H.Y. Yang. Analysis of Temperature Rising in the Hydraulic-Pressure Actuator [J]. Control Technology of Tactical Missile, 2004, 44 (1): 32-34.

[4] Z.L. Wang, L.H. Qiu, L.M. Yu. Major Development Trends of Aircraft Hydraulic System. [C]. Proceedings of the International Conference on Recent Advances in Aerospace Actuation Systems and Components, Toulouse: France, pp.147-154, Jun. (2001).

[5] S.F. Wang. Research on key technologies for intelligent hydraulic power system [D]. Beijing University of Aeronautics and Astronautics, (2004).

[6] Y.Z. Ji, L.H. Qiu, Z.L. Wang, X.Y. Qi. Research on Pump and Valve Combined EHA Based on Variable Pressure Control [C]. Recent Advances in Aerospace Actuation Systems and Components, Toulouse: France, pp.68-72, Jun. (2007).

[7] Y.L. Fu, X.Y. Qi. System modeling and simulation based on AMESim. [M]. Beijing University of Aeronautics and Astronautics Press, (2006).

[8] H.T. Qi, Y.L. Fu. Simulation of Electro-hydrostatic Actuator Based on AMESim [J]. Machine Tool & Hydraulics, 2007, 35(2): 184-186.
