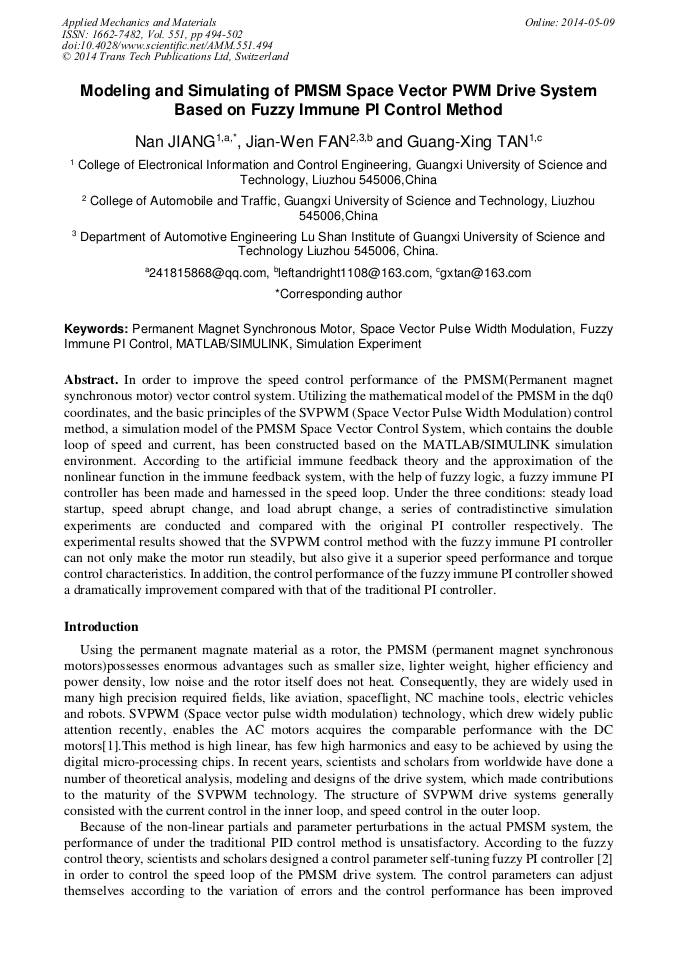

Modeling and Simulating of PMSM Space Vector PWM Drive System Based on Fuzzy Immune PI Control Method

Abstract:

In order to improve the speed control performance of the PMSM(Permanent magnet synchronous motor) vector control system. Utilizing the mathematical model of the PMSM in the dq0 coordinates, and the basic principles of the SVPWM (Space Vector Pulse Width Modulation) control method, a simulation model of the PMSM Space Vector Control System, which contains the double loop of speed and current, has been constructed based on the MATLAB/SIMULINK simulation environment. According to the artificial immune feedback theory and the approximation of the nonlinear function in the immune feedback system, with the help of fuzzy logic, a fuzzy immune PI controller has been made and harnessed in the speed loop. Under the three conditions: steady load startup, speed abrupt change, and load abrupt change, a series of contradistinctive simulation experiments are conducted and compared with the original PI controller respectively. The experimental results showed that the SVPWM control method with the fuzzy immune PI controller can not only make the motor run steadily, but also give it a superior speed performance and torque control characteristics. In addition, the control performance of the fuzzy immune PI controller showed a dramatically improvement compared with that of the traditional PI controller.

• Periodical: Applied Mechanics and Materials (Volume 551)
• Pages: 494-502
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.551.494
• Online since: May 2014
• Authors: Nan Jiang*, Jian Wen Fan, Guang Xing Tan
• Keywords: Fuzzy Immune PI Control, MATLAB/SIMULINK, Permanent Magnet Synchronous Motor, Simulation Experiment, Space Vector Pulse Width Modulation

References

[1] Yang WANG, Yong-guang LIU. Simulation of PMSM with Vector Control Based on Simulation, Modular Machine Tool& Automatic Manufacturing Technique, 2 (2011)78-82.

[2] Min-jun CHEN, Yu-rong NAN, Ai-li Wu. Fuzzy Speed Control of PMSM Based on SVPWM Vector Control, Electrical Drives, 9 (2005) 57-61.

[3] Peng ZHOU, Study for Fuzzy Immune PID controller, Journal of Yunyang Teachers College, 3 (2011) 82-84.

[4] Jian-lin MO, Cheng-gao ZHU, Fuzzy Self-adaption PID Control and Accomplishment, Techniques of Automation and Applications, 3 (1998) 4-8.

[5] Yong-le YAN, Qing-zhou LI, Shu-xin YU. A Survey of Intelligent PID Control, PLC&FA, 12 (2006)9-14.

[6] Xue-lun WANG, Zhi CHENG, lei FU, etc. Design of Fuzzy-Immune-PID Controller in servo Control System, Small & Special Electrical Machines. 4 (2011) 58-61.

[7] Ji-ai HE, Hui-qin WANG. Simulation of PMSM Controlled by Space Vector PWM, Proceedings of the CSU-EPSA. 6 (2005) 14-16.

[8] Guo-dong LI, Meng-xiao WANG. Fuzzy Immune-PID Controller and Its Application in Caustic Process, Computer Engineering. 1 (2009) 218-220.

[9] Ying-zi TAN, Jiong SHEN, Zhen-zhong LU. Study of Immune PID Controller for Surperheated Steam Temperature Control System, Proceedings of the CSEE. 10 (2002) 148-152.

[10] Shao-bai CHEN, Guang-xing TAN, Zong-yuan Mao. Optimizing Parameters of PID Controller Based on an Immune Networks Model, J of Wuhan Uni of Sci& Tech(Natural Science Edition). 3 (2006)313-315.

[11] Sheng-hua NING, guang-xing TAN, Ran LI. Parameter optimization in purely mechanical steering system of Automotive Based on Immune Genetic PID, Journal of Guangxi University Of Technology. 3 (2010) 38-41.
