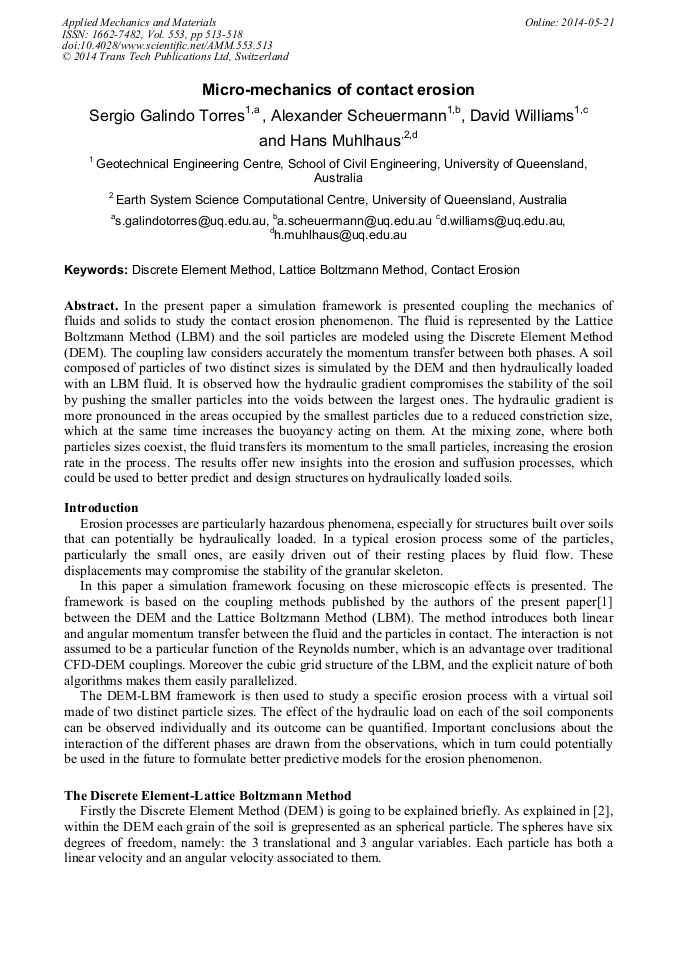

Micro-Mechanics of Contact Erosion

Abstract:

In the present paper a simulation framework is presented coupling the mechanics of fluids and solids to study the contact erosion phenomenon. The fluid is represented by the Lattice Boltzmann Method (LBM) and the soil particles are modeled using the Discrete Element Method (DEM). The coupling law considers accurately the momentum transfer between both phases. A soil composed of particles of two distinct sizes is simulated by the DEM and then hydraulically loaded with an LBM fluid. It is observed how the hydraulic gradient compromises the stability of the soil by pushing the smaller particles into the voids between the largest ones. The hydraulic gradient is more pronounced in the areas occupied by the smallest particles due to a reduced constriction size, which at the same time increases the buoyancy acting on them. At the mixing zone, where both particles sizes coexist, the fluid transfers its momentum to the small particles, increasing the erosion rate in the process. The results offer new insights into the erosion and suffusion processes, which could be used to better predict and design structures on hydraulically loaded soils.

• Periodical: Applied Mechanics and Materials (Volume 553)
• Pages: 513-518
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.553.513
• Online since: May 2014
• Authors: Sergio Andres Galindo-Torres*, Alexander Scheuermann, David Williams, Hans Mühlhaus
• Keywords: Contact Erosion, Discrete Element Method, Lattice Boltzmann Method

References

[1] Galindo-Torres, S.A., A coupled Discrete Element Lattice Boltzmann Method for the simulation of fluid–solid interaction with particles of general shapes. Computer Methods in Applied Mechanics and Engineering, 2013. 265(0): pp.107-119.

DOI: 10.1016/j.cma.2013.06.004

[2] Galindo-Torres, S.A. and D.M. Pedroso, Molecular dynamics simulations of complex-shaped particles using Voronoi-based spheropolyhedra. Physical Review E, 2010. 81(6): p.061303.

DOI: 10.1103/physreve.81.061303

[3] Cundall, P. and O. Strack, A discrete numerical model for granular assemblies. Geotechnique, 1979. 29(1): pp.47-65.

DOI: 10.1680/geot.1979.29.1.47

[4] Galindo-Torres, S.A., et al., Breaking processes in three-dimensional bonded granular materials with general shapes. Computer Physics Communications, 2012. 183(2): pp.266-277.

DOI: 10.1016/j.cpc.2011.10.001

[5] Sun, W., M.R. Kuhn, and J.W. Rudnicki, A multiscale DEM-LBM analysis on permeability evolutions inside a dilatant shear band. Acta Geotechnica, 2012: pp.1-16.

DOI: 10.1007/s11440-013-0210-2
