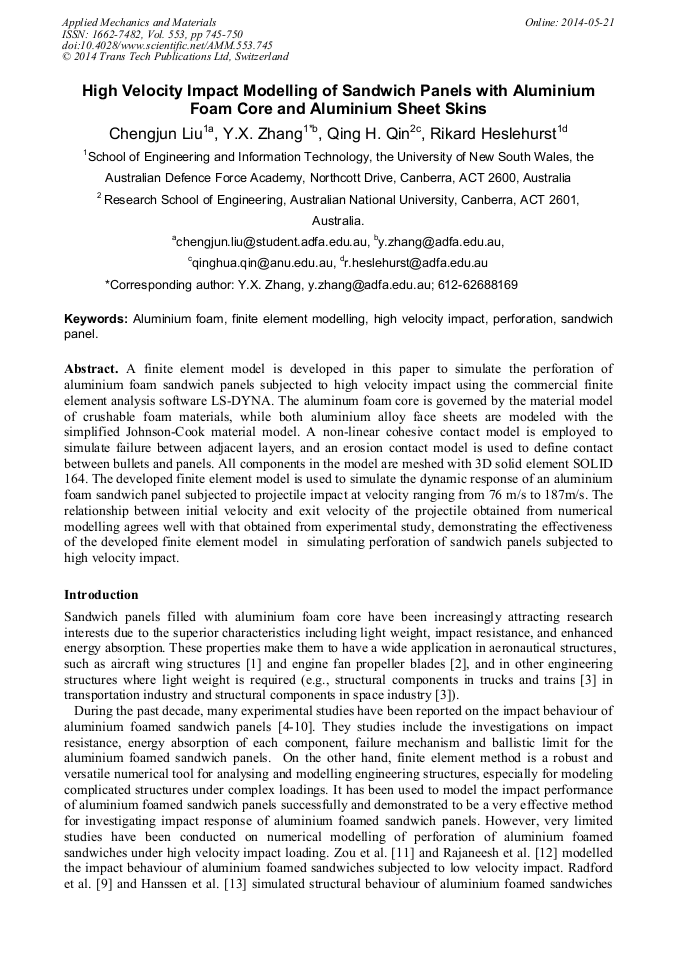

High Velocity Impact Modelling of Sandwich Panels with Aluminium Foam Core and Aluminium Sheet Skins

Abstract:

A finite element model is developed in this paper to simulate the perforation of aluminium foam sandwich panels subjected to high velocity impact using the commercial finite element analysis software LS-DYNA. The aluminum foam core is governed by the material model of crushable foam materials, while both aluminium alloy face sheets are modeled with the simplified Johnson-Cook material model. A non-linear cohesive contact model is employed to simulate failure between adjacent layers, and an erosion contact model is used to define contact between bullets and panels. All components in the model are meshed with 3D solid element SOLID 164. The developed finite element model is used to simulate the dynamic response of an aluminium foam sandwich panel subjected to projectile impact at velocity ranging from 76 m/s to 187m/s. The relationship between initial velocity and exit velocity of the projectile obtained from numerical modelling agrees well with that obtained from experimental study, demonstrating the effectiveness of the developed finite element model in simulating perforation of sandwich panels subjected to high velocity impact.

• Periodical: Applied Mechanics and Materials (Volume 553)
• Pages: 745-750
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.553.745
• Online since: May 2014
• Authors: Cheng Jun Liu, Yi Xia Zhang*, Qing Hua Qin, Rikard Heslehurst
• Keywords: Aluminum Foam, Finite Element Modeling (FEM), High Velocity Impact, Perforation, Sandwich Panel

References

[1] J.B. Min, L.J. Ghosn, B.A. Lerch, S.V. Raj, F.A. Jr. Holland, M.G. Hebsur, Analysis of stainless steel sandwich panels with a metal foam core for lightweight fan blade design, Collection of Technical Papers-AIAA/ASME/ASCE/AHS/ASC Structures, Structural Dynamics and Materials Conference  5(2004).

DOI: 10.2514/6.2004-1836

[2] C. Betts, Benefits of metal foams and developments in modelling techniques to assess their materials behaviour: A review, Materials Science and Technology 28(2012) 129-143.

DOI: 10.1179/026708311x13135950699290

[3] J. Banhart, H.W. Seeliger,  Aluminium foam sandwich panels: metallurgy, manufacture and applications, Advanced Engineering Materials 10(2008) 792-802.

DOI: 10.1002/adem.200800091

[4] ] W.H. Hou, F. Zhu, G.X. Lu, D.N. Fang, Ballistic impact experiments of metallic sandwich panels with aluminium foam core, International Journal of Impact Engineering 37(2010) 1045-1055.

DOI: 10.1016/j.ijimpeng.2010.03.006

[5] C. Bisagni, C. Walters, Projectile impact testing of glass fiber-reinforced composite and layered corrugated aluminium and aluminium foam core sandwich panels: a comparative study, International Journal of Crashworthiness 17(2013) 508-518.

DOI: 10.1080/13588265.2012.690215

[6] I. Elnasri, H. Zhao, Y. Girard, Perforation of aluminium foam core sandwich panels under impact loading, Journal De Physique IV : JP 134(2006) 921-927.

DOI: 10.1051/jp4:2006134141

[7] H. Zhao, I. Elnasri, Y. Girard, Perforation of aluminium foam core sandwich panels under impact loading-an experimental study, International Journal of Impact Engineering 34( 2007) 1246-1257.

DOI: 10.1016/j.ijimpeng.2006.06.011

[8] Y. Girard,   I. Elnasri,  H. Zhao,   Study of cellular materials sandwich under dynamic loading for bird strike application, IUTAM Bookseries 12(2009) 207-216.

DOI: 10.1007/978-1-4020-9404-0_22

[9] D.D. Radford, G.J. McShane, V.S. Deshpande,  N.A. Fleck,  The response of clamped sandwich plates with metallic foam cores to simulated blast loading, International Journal of Solids and Structures  43(2006) 2243-2259.

DOI: 10.1016/j.ijsolstr.2005.07.006

[10] V.G. Reyes, G. Villanueva, W.J. Cantwell,  The high velocity impact response of composite and FML-reinforced sandwich structures, Composites Science and Technology 64(2004) 35-54.

DOI: 10.1016/s0266-3538(03)00197-0

[11] R. Zou, D. Ruan, G.X. Lu, Finite element simulation of aluminium foam sandwich panels subjected to impact loading, Advanced Materials Research 261-263(2011) 761-764.

DOI: 10.4028/www.scientific.net/amr.261-263.761

[12] A. Rajaneesh, I. Sridhar, S. Rajendran, Numerical modeling of low velocity impact response on metal foam cored sandwich panels: effect of various facesheet materials. 18th ICCM International Conferences on Composite Materials, South Korea, (2011).

DOI: 10.1016/j.compstruct.2011.12.021

[13] A.G. Hanssen,  Y. Girard, L. Olovsson, T. Berstad, M. Langseth, A numerical model for bird strike of aluminium foam-based sandwich panels, International Journal of Impact Engineering  32(2006) 1127-1144.

DOI: 10.1016/j.ijimpeng.2004.09.004

[14] LS-DYNA Keyword User's Manual, Livermore Software Technology Corporation (LSTC). Volume II: material models. Version 971, (2012).

[15] T. Mukai, H. Kanahashi, T. Miyoshi, M. Mabuchi, T.G. Nieh, K. Higashi, Experimental study of energy absorption in a closed cell aluminium foam under dynamic loading, Scr. Material, 40(1999), 921–927.

DOI: 10.1016/s1359-6462(99)00038-x

[16] Mukai, T., Kanahashi, H., Miyoshi, T., Mabuchi, M., Nieh, T.G., Higashi, K., 1999. Experimental study of energy absorption in a closed cell aluminium foam under dynamic loading. Scr. Mater. 40, 921–927.

DOI: 10.1016/s1359-6462(99)00038-x

[17] Jianhu Shen, Guoxing Lu, Dong Ruan. Compressive behaviour of closed-cell aluminium foams at high strain rates. Composites: Part B, 41 (2010) 678–685.

DOI: 10.1016/j.compositesb.2010.07.005

[18] M. Vesenjak,  C. Veyhl, T. Fiedler, Analysis of anisotropy and strain rate sensitivity of open-cell metal foam, Materials Science and Engineering: A, 541(2012) 105-109.

DOI: 10.1016/j.msea.2012.02.010

[19] I. Elnasri, S. Pattofatto, H. Zhao, H. Tsitsiris, F. Hild, Y. Girard, Shock enhancement of cellular structures under impact loading: Part I Experiments, Journal of the Mechanics and Physics of Solids, 55 (2007), 2652–2671.

DOI: 10.1016/j.jmps.2007.04.005

[20] Deshpande, V.S., Fleck, N. A,. High strain rate compressive behaviour of aluminium. International Journal of Impact Engineering. 24(2000), 277–298.

DOI: 10.1016/s0734-743x(99)00153-0

[21] G. Kay, D. Goto, R. Couch. Statistical testing of aluminum, titanium, lexan and composites for transport airplane rotor burst fragment shielding. FAA Rep. No. DOT/FAA/AR-07/26, Federal Aviation Administration, Washington DC, (2007).
