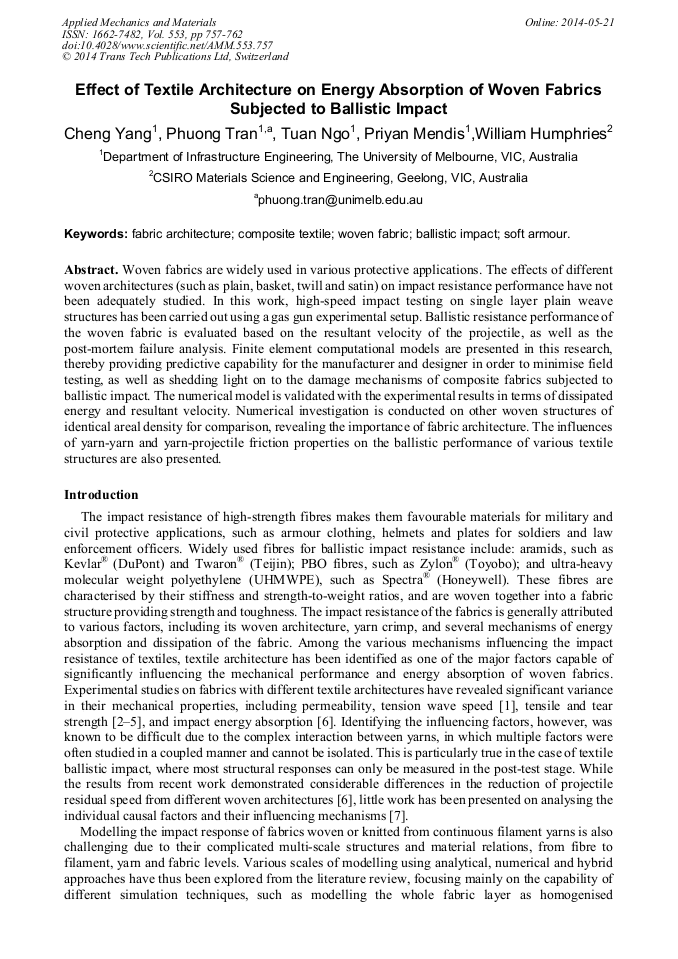

Effect of Textile Architecture on Energy Absorption of Woven Fabrics Subjected to Ballistic Impact

Abstract:

Woven fabrics are widely used in various protective applications. The effects of different woven architectures (such as plain, basket, twill and satin) on impact resistance performance have not been adequately studied. In this work, high-speed impact testing on single layer plain weave structures has been carried out using a gas gun experimental setup. Ballistic resistance performance of the woven fabric is evaluated based on the resultant velocity of the projectile, as well as the post-mortem failure analysis. Finite element computational models are presented in this research, thereby providing predictive capability for the manufacturer and designer in order to minimise field testing, as well as shedding light on to the damage mechanisms of composite fabrics subjected to ballistic impact. The numerical model is validated with the experimental results in terms of dissipated energy and resultant velocity. Numerical investigation is conducted on other woven structures of identical areal density for comparison, revealing the importance of fabric architecture. The influences of yarn-yarn and yarn-projectile friction properties on the ballistic performance of various textile structures are also presented.

• Periodical: Applied Mechanics and Materials (Volume 553)
• Pages: 757-762
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.553.757
• Online since: May 2014
• Authors: Cheng Yang, Phuong Tran*, Tuan Ngo, Priyan Mendis, William Humphries
• Keywords: Ballistic Impact, Composite Textile, Fabric Architecture, Soft Armour, Woven Fabric

References

[1] Backer, S., The Relationship Between the Structural Geometry of a Textile Fabric and Its Physical Properties : Part IV: Interstice Geometry and Air Permeability. Textile Research Journal, (1951).

DOI: 10.1177/004051755102101002

[2] Scelzo, W.A., S. Backer, and M.C. Boyce, Mechanistic Role of Yarn and Fabric Structure in Determining Tear Resistance of Woven Cloth Part I: Understanding Tongue Tear. Textile Research Journal, (1994).

DOI: 10.1177/004051759406400506

[3] Kumpikaitė, E. and A. Sviderskytė, The Influence of Woven Fabric Structure on the Woven Fabric Strength. Materials Science (Medžiagotyra). 2006. 12.

[4] Suppakul, P. and S. Bandyopadhyay, The effect of weave pattern on the mode-I interlaminar fracture energy of E-glass / vinyl ester composites. Composites Science and Technology, 2002. 62: pp.709-717.

DOI: 10.1016/s0266-3538(01)00220-2

[5] Teixeira, N.A., M.M. Platt, and W.J. Hamburger, Mechanics of Elastic Performance of Textile Materials : Part XII: Relation of Certain Geometric Factors to the Tear Strength of Woven Fabrics. Textile Research Journal, (1955).

DOI: 10.1177/004051755502501003

[6] Shimek, M.E. and E.P. Fahrenthold, Effects of Weave Type on Ballistic Performance of Fabrics. AIAA Journal, 2012. 50(11): pp.2558-2565.

DOI: 10.2514/1.j051708

[7] Tabiei, A. and G. Nilakantan, Ballistic Impact of Dry Woven Fabric Composites: A Review. Applied Mechanics Reviews, 2008. 61: p.010801.

DOI: 10.1115/1.2821711

[8] Barauskas, R. and A. Abraitienė, Computational analysis of impact of a bullet against the multilayer fabrics in LS-DYNA. International Journal of Impact Engineering, 2007. 34: pp.1286-1305.

DOI: 10.1016/j.ijimpeng.2006.06.002

[9] Duan, Y., et al., A numerical investigation of the influence of friction on energy absorption by a high-strength fabric subjected to ballistic impact. International Journal of Impact Engineering, 2006. 32: pp.1299-1312.

DOI: 10.1016/j.ijimpeng.2004.11.005

[10] Rao, M.P., et al., Modeling the effects of yarn material properties and friction on the ballistic impact of a plain-weave fabric. Composite Structures, 2009. 89: pp.556-566.

DOI: 10.1016/j.compstruct.2008.11.012
