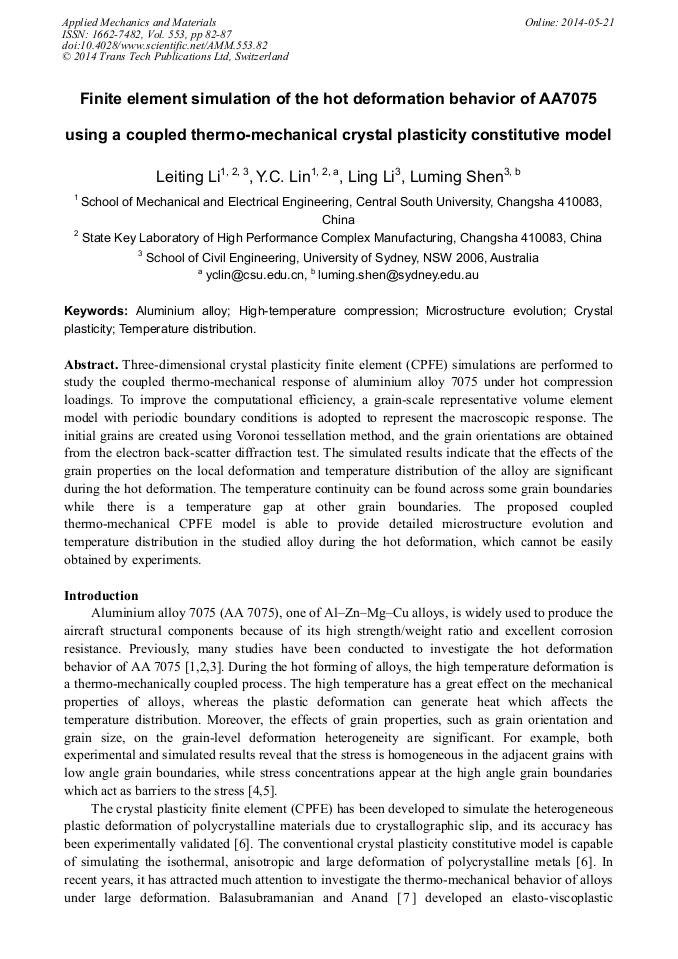

Finite Element Simulation of the Hot Deformation Behavior of AA7075 Using a Coupled Thermo-Mechanical Crystal Plasticity Constitutive Model

Abstract:

Three-dimensional crystal plasticity finite element (CPFE) simulations are performed to study the coupled thermo-mechanical response of aluminium alloy 7075 under hot compression loadings. To improve the computational efficiency, a grain-scale representative volume element model with periodic boundary conditions is adopted to represent the macroscopic response. The initial grains are created using Voronoi tessellation method, and the grain orientations are obtained from the electron back-scatter diffraction test. The simulated results indicate that the effects of the grain properties on the local deformation and temperature distribution of the alloy are significant during the hot deformation. The temperature continuity can be found across some grain boundaries while there is a temperature gap at other grain boundaries. The proposed coupled thermo-mechanical CPFE model is able to provide detailed microstructure evolution and temperature distribution in the studied alloy during the hot deformation, which cannot be easily obtained by experiments.

• Periodical: Applied Mechanics and Materials (Volume 553)
• Pages: 82-87
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.553.82
• Online since: May 2014
• Authors: Lei Ting Li, Y.C. Lin, Ling Li, Lu Ming Shen
• Keywords: Aluminium Alloy, Crystal Plasticity, High-Temperature Compression, Microstructure Evolution, Temperature Distribution

References

[1] Y.C. Lin, L.T. Li, Y.C. Xia, Y.Q. Jiang, Hot deformation and processing map of a typical Al-Zn-Mg-Cu alloy, J. Alloys Comp. 550 (2013) 438-445.

DOI: 10.1016/j.jallcom.2012.10.114

[2] L.T. Li, Y.C. Lin, H.M. Zhou, Y.C. Xia, Y.Q. Jiang, Modeling the high-temperature creep behaviors of 7075 and 2124 aluminum alloys by continuum damage mechanics model, Comput. Mater. Sci. 73 (2013) 72-78.

DOI: 10.1016/j.commatsci.2013.02.022

[3] Y.C. Lin , L.T. Li , Y.Q. Jiang, A phenomenological constitutive model for describing thermo-viscoplastic behavior of Al-Zn-Mg-Cu alloy under hot working condition, Exp. Mech. 52 (2012) 993-1002.

DOI: 10.1007/s11340-011-9546-4

[4] M. Sachtleber, Z. Zhao, D. Raabe, Experimental investigation of plastic grain interaction, Mater. Sci. Eng. A 336 (2002) 81-87.

DOI: 10.1016/s0921-5093(01)01974-8

[5] L. Li, L. Shen, G. Proust, C.K.S. Moy, G. Ranzi, Three-dimensional crystal plasticity finite element simulation of nanoindentation on aluminium alloy 2024, Mater. Sci. Eng. A 579 (2013) 41-49.

DOI: 10.1016/j.msea.2013.05.009

[6] E.B. Marin, Sandia National Laboratories, (2006).

[7] S. Balasubramanian, L. Anand, Elasto-viscoplastic constitutive equations for polycrystalline fcc materials at low homologous temperatures, J. Mech. Phys. Solids 50 (2002) 101-126.

DOI: 10.1016/s0022-5096(01)00022-9

[8] S. Ganapathysubramanian, N. Zabaras, Modeling the thermoelastic-viscoplastic response of polycrystals using a continuum representation over the orientation space, Int. J. Plast. 21 (2005) 119-144.

DOI: 10.1016/j.ijplas.2004.04.005

[9] A. Saai, H. Louche, L. Tabourot, H.J. Chang, Experimental and numerical study of the thermo-mechanical behavior of Al bi-crystal in tension using full field measurements and micromechanical modeling, Mech. Mater. 42 (2010) 275-292.

DOI: 10.1016/j.mechmat.2009.11.011

[10] E.B. Marin, P.R. Dawson, On modelling the elasto-viscoplastic response of metals using polycrystal plasticity, Comput. Methods Appl. Mech. Eng. 165 (1998) 1-21.

DOI: 10.1016/s0045-7825(98)00034-6

[11] P. Rosakis, A.J. Rosakis, G. Ravichandran, J. Hodowany, A thermodynamic internal variable model for the partition of plastic work into heat and stored energy in metals, J. Mech. Phys. Solids 48 (2000) 581-607.

DOI: 10.1016/s0022-5096(99)00048-4

[12] Abaqus/Standard version 6. 11-2, Dassult Systems Simulia Corp., Providence, RI, USA (2011).

[13] R. Quey, P.R. Dawson, F. Barbe, Large-scale 3D random polycrystals for the finite element method: Generation, meshing and remeshing, Comput. Methods Appl. Mech. Eng. 200 (2011) 1729-1745.

DOI: 10.1016/j.cma.2011.01.002

[14] B. Lin, L.G. Zhao, J. Tong, H.J. Christ, Crystal plasticity modeling of cyclic deformation for a polycrystalline nickel-based superalloy at high temperature, Mater. Sci. Eng. A 527 (2010) 3581-3587.

DOI: 10.1016/j.msea.2010.02.045

[15] S. Dumoulin, O. Engler, O.S. Hopperstad, O.G. Lademo, Description of plastic anisotropy in AA6063-T6 using the crystal plasticity finite element method, Modelling Simul. Mater. Sci. Eng. 20 (2012) 055008.

DOI: 10.1088/0965-0393/20/5/055008
