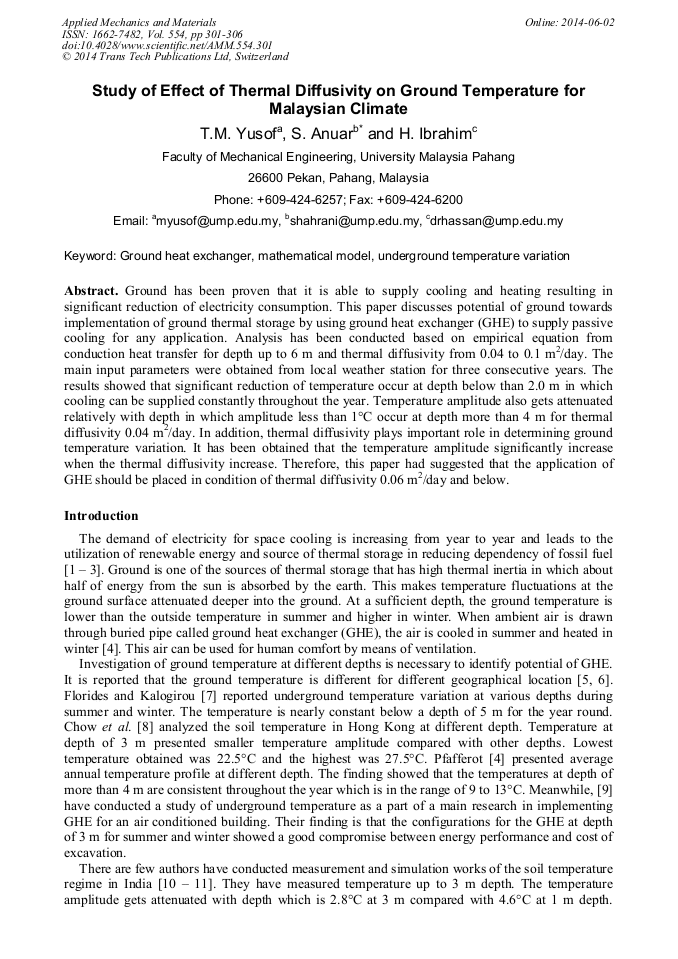

Study of Effect of Thermal Diffusivity on Ground Temperature for Malaysian Climate

Abstract:

Ground has been proven that it is able to supply cooling and heating resulting in significant reduction of electricity consumption. This paper discusses potential of ground towards implementation of ground thermal storage by using ground heat exchanger (GHE) to supply passive cooling for any application. Analysis has been conducted based on empirical equation from conduction heat transfer for depth up to 6 m and thermal diffusivity from 0.04 to 0.1 m²/day. The main input parameters were obtained from local weather station for three consecutive years. The results showed that significant reduction of temperature occur at depth below than 2.0 m in which cooling can be supplied constantly throughout the year. Temperature amplitude also gets attenuated relatively with depth in which amplitude less than 1°C occur at depth more than 4 m for thermal diffusivity 0.04 m²/day. In addition, thermal diffusivity plays important role in determining ground temperature variation. It has been obtained that the temperature amplitude significantly increase when the thermal diffusivity increase. Therefore, this paper had suggested that the application of GHE should be placed in condition of thermal diffusivity 0.06 m²/day and below.

• Periodical: Applied Mechanics and Materials (Volume 554)
• Pages: 301-306
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.554.301
• Online since: June 2014
• Authors: Taib Mohd Yusof, Shahrani Anuar*, Hassan Ibrahim
• Keywords: Ground Heat Exchanger, Mathematical Models, Underground Temperature Variation

References

[1] M. Shekarchian, M. Moghavvemi, F. Motasemi, F. Zarifi, T.M.I. Mahlia, Energy and fuel consumption forecast by retrofitting absorption cooling in Malaysia from 2012 to 2025, Renewable and sustainable Energy Reviews, 16 (2012) 6128-6141.

DOI: 10.1016/j.rser.2012.07.013

[2] V. Khalajzadeh, M. Farmahini-Farahani, G. Heidarinejad, A novel integrated system of ground heat exchanger and indirect evaporative cooler, Energy and Buildings 49 (2012) 604–610.

DOI: 10.1016/j.enbuild.2012.03.009

[3] I. Daut, M. Adzrie, M. Irwanto, P. Ibrahim, M. Fitra, Solar Powered Air Conditioning System, Energy Procedia 36 ( 2013 ) 444 – 453.

DOI: 10.1016/j.egypro.2013.07.050

[4] J. Pfafferott, Evaluation of earth-to-air heat exchangers with a standardised method to calculate energy efficiency, Energy and Buildings 35 (2003) 971–983.

DOI: 10.1016/s0378-7788(03)00055-0

[5] T. Kasuda, P.R. Archenbach, Earth Temperature and thermal diffusivity at selected station in the United States, ASHRAE Transaction, 71, Part 1 (1965) 61-75.

[6] A. Argiriuou, Ground cooling. In: M. Santamouris and D. Asimakopoulos, editors. Passive cooling of buildings, London, James & James (2001) 360-401.

[7] G. Florides, S. Kalogirou, Ground heat exchangers—A review of systems, models and applications, Renewable Energy, 32 (2007) 2461–2478.

DOI: 10.1016/j.renene.2006.12.014

[8] T.T. Chow, H. Long, H.T. Mok, K.W. Li, Estimation of soil temperature profile in Hong Kong from climate variables, Energy and Building, 43 (2011) 3568-3575.

DOI: 10.1016/j.enbuild.2011.09.026

[9] F. Ascione, L. Bellia, F. Minichiello, Earth-to-air heat exchangers for Italian climates, Journal of Renewable Energy, 36 (2011) 2177-2188.

DOI: 10.1016/j.renene.2011.01.013

[10] G. Sharan, R. Jadhav, Soil temperature regime at Ahmedabad, Journal of Agricultural Engineering, 39, 1, (2002) January-March.

[11] G. Sharan, R. Jadhav, Performance of single pass earth tube heat exchanger: An experimental study, Journal of Agricultural Engineering, 40, 1 (2003) 1-8.

[12] F. Al-Ajmi, D.L. Loveday, V.I. Hanby, The cooling potential of earth-air heat exchangers for domestic buildings in a desert climate. Building and Environment, 41 (2006) 235-244.

DOI: 10.1016/j.buildenv.2005.01.027

[13] M.R. Alam, M.F.M. Zain, A.B.M. A Kaish, Energy efficient green building based on geo cooling system in sustainable construction of Malaysia. Int. Journal of Sustainable Construction Engineering & Technology, 3, 2 (2012) 96-1. 5.

[14] W. Cui, Q. Liao, G, Chang, G. Chen, Q. Peng, T.C. Jen, Measurement and prediction of undisturbed underground temperature distribution. Proceeding of the ASME 2011 International Mechanical Engineering Congress & Exposition IMECE2011, Denver, Colorado, USA (2011).

DOI: 10.1115/imece2011-63311

[15] N.Z.S. Aliyah, L. Shao, N. Ibrahim, Passive ground cooling system for low energy buildings in Malaysia (hot and humid climates). Renewable Energy, 49 (2013) 193-196.

DOI: 10.1016/j.renene.2012.01.033

[16] ASHRAE. 2009. ASHRAE HVAC System and Equipment, Atlanta, Ga. American Society of Heating, Refrigerating and Air-Conditioning Engineers, Inc., (2009).

[17] M. Perpar, Z. Rek, S. Bajric, I. Zun, Soil thermal conductivity prediction for district heating pre-insulated pipeline in operation. Energy, 44 (2012) 197-210.

DOI: 10.1016/j.energy.2012.06.037
