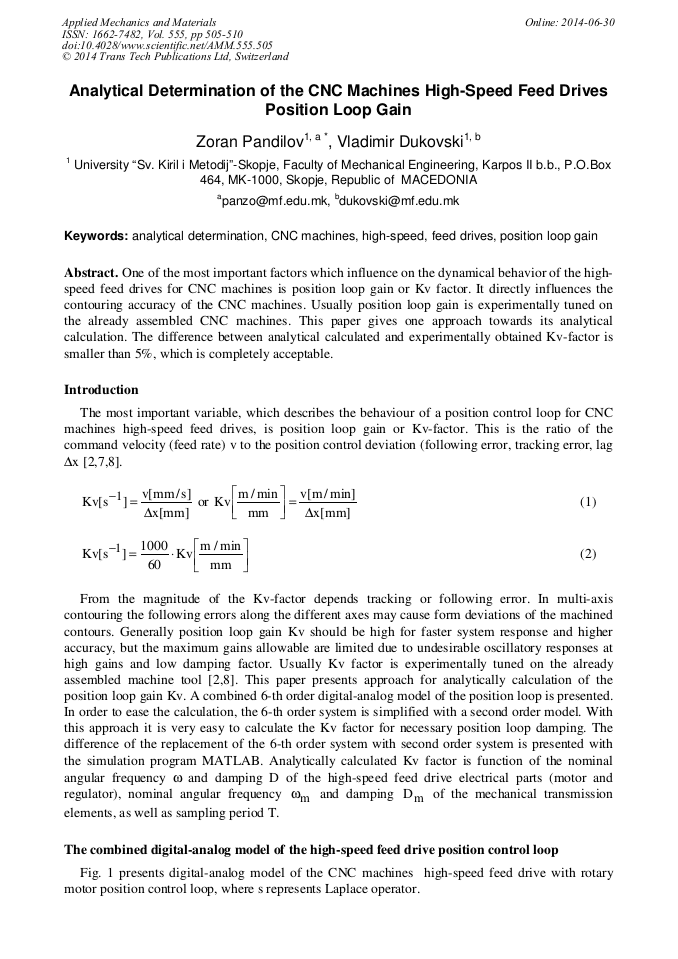

Analytical Determination of the CNC Machines High-Speed Feed Drives Position Loop Gain

Abstract:

One of the most important factors which influence on the dynamical behavior of the high-speed feed drives for CNC machines is position loop gain or Kv factor. It directly influences the contouring accuracy of the CNC machines. Usually position loop gain is experimentally tuned on the already assembled CNC machines. This paper gives one approach towards its analytical calculation. The difference between analytical calculated and experimentally obtained Kv-factor is smaller than 5%, which is completely acceptable.

You might also be interested in these eBooks

Modeling and Optimization of the Aerospace, Robotics, Mechatronics, Machines-Tools, Mechanical Engineering and Human Motricity Fields

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 555)

Pages:

505-510

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.555.505

Citation:

Cite this paper

Online since:

June 2014

Authors:

Zoran Pandilov*, Vladimir Dukovski

Keywords:

Analytical Determination, CNC Machines, Feed Drives, High-Speed, Position Loop Gain
