The Motion Characteristics and Pressure Analysis of Drive System of Monorail Crane

Abstract:

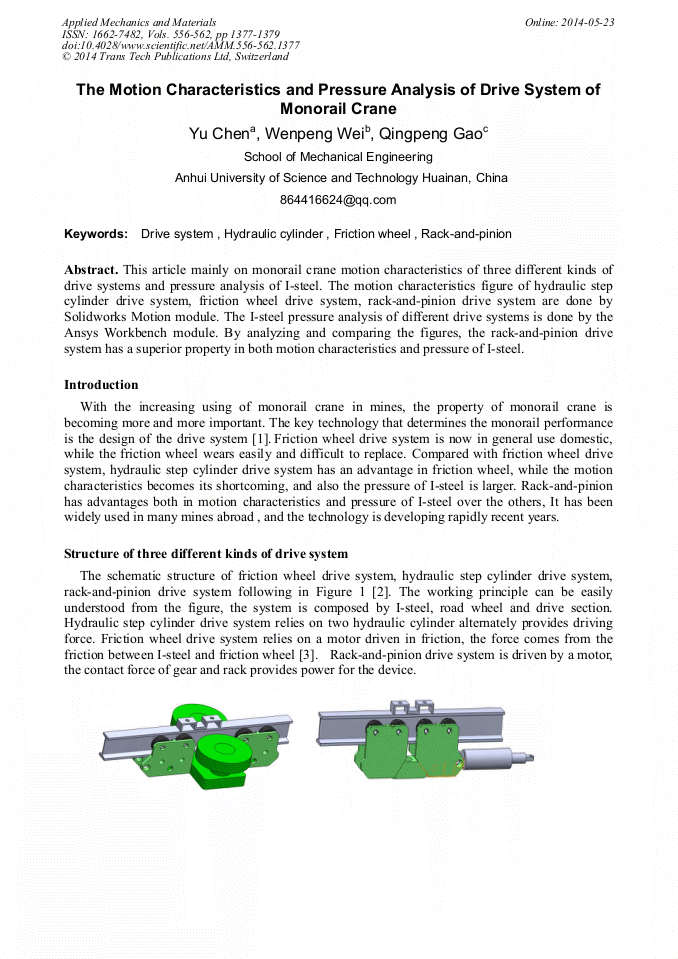

This article mainly on monorail crane motion characteristics of three different kinds of drive systems and pressure analysis of I-steel. The motion characteristics figure of hydraulic step cylinder drive system, friction wheel drive system, rack-and-pinion drive system are done by Solidworks Motion module. The I-steel pressure analysis of different drive systems is done by the Ansys Workbench module. By analyzing and comparing the figures, the rack-and-pinion drive system has a superior property in both motion characteristics and pressure of I-steel.
