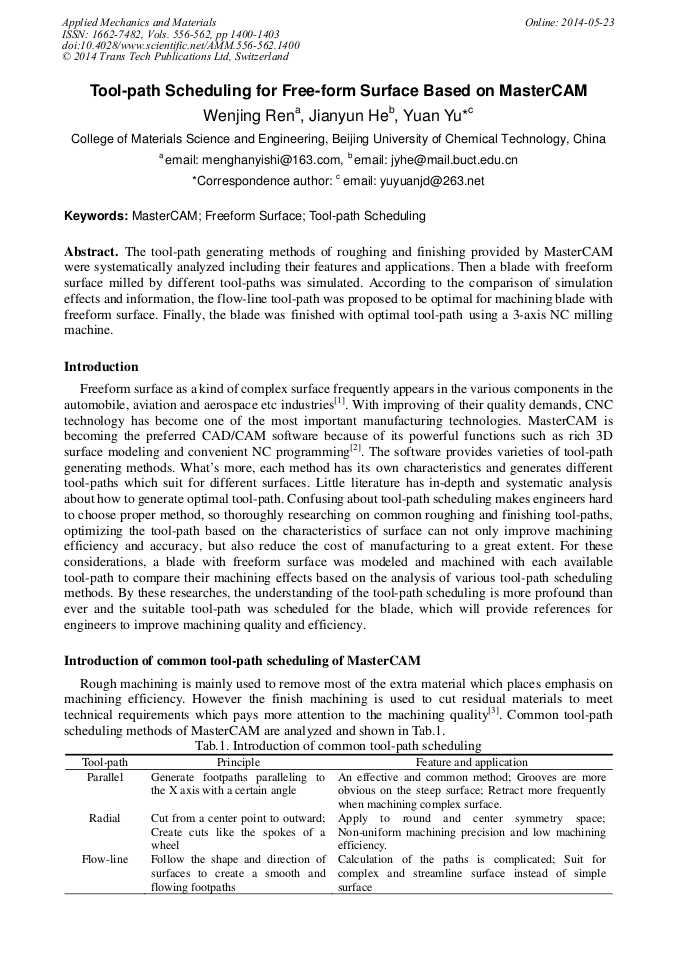

Tool-Path Scheduling for Free-Form Surface Based on MasterCAM

Abstract:

The tool-path generating methods of roughing and finishing provided by MasterCAM were systematically analyzed including their features and applications. Then a blade with freeform surface milled by different tool-paths was simulated. According to the comparison of simulation effects and information, the flow-line tool-path was proposed to be optimal for machining blade with freeform surface. Finally, the blade was finished with optimal tool-path using a 3-axis NC milling machine.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 556-562)

Pages:

1400-1403

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.556-562.1400

Citation:

Cite this paper

Online since:

May 2014

Authors:

Wen Jing Ren, Jian Yun He, Yuan Yu*

Keywords:

Freeform Surfaces, Mastercam, Tool-Path Scheduling
