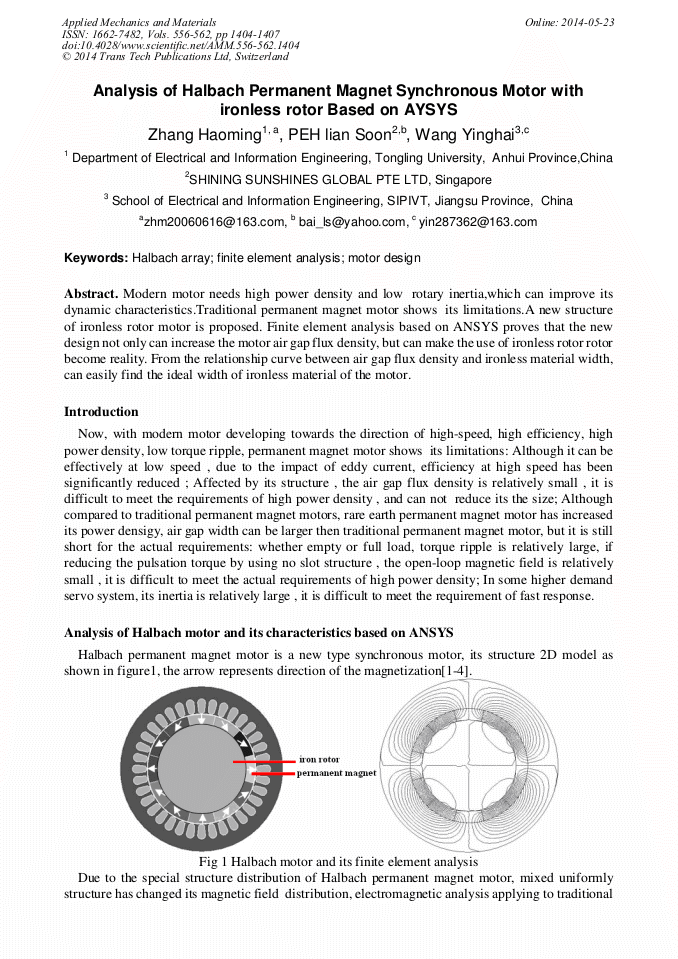

Analysis of Halbach Permanent Magnet Synchronous Motor with Ironless Rotor Based on AYSYS

Abstract:

Modern motor needs high power density and low rotary inertia,which can improve its dynamic characteristics.Traditional permanent magnet motor shows its limitations.A new structure of ironless rotor motor is proposed. Finite element analysis based on ANSYS proves that the new design not only can increase the motor air gap flux density, but can make the use of ironless rotor rotor become reality. From the relationship curve between air gap flux density and ironless material width, can easily find the ideal width of ironless material of the motor.

• Periodical: Applied Mechanics and Materials (Volumes 556-562)
• Pages: 1404-1407
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.556-562.1404
• Online since: May 2014
• Authors: Hao Ming Zhang*, Lian Soon Peh, Ying Hai Wang
• Keywords: Finite Element Analysis (FEA), Halbach Array, Motor Design
