Numerical Investigation of Convection Heat Transfer in Pipes with Sintered Porous Metal Rings

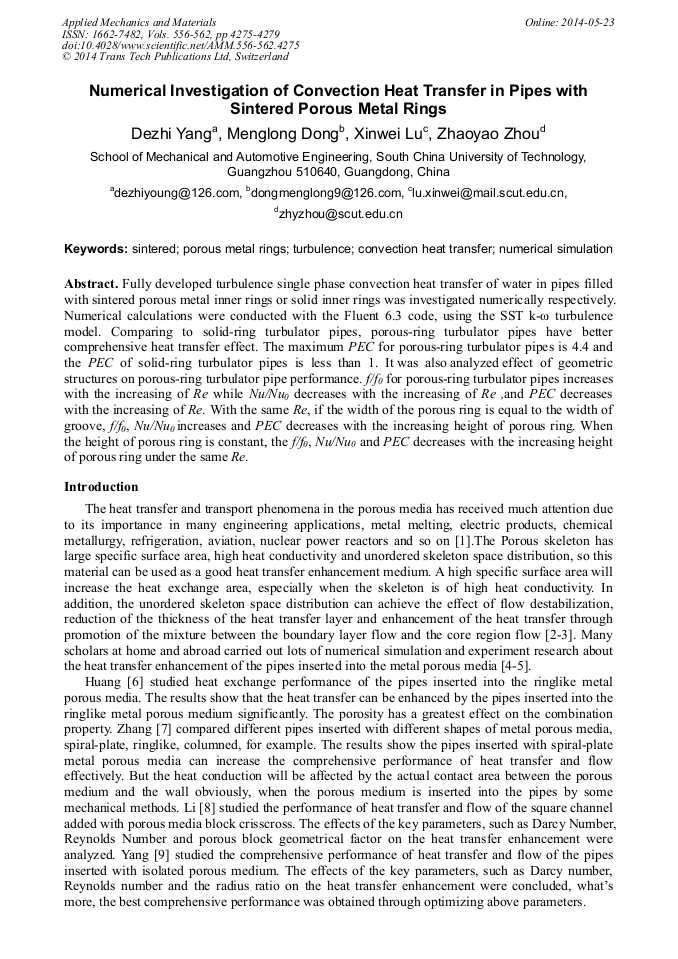

Article Preview

Abstract:

Fully developed turbulence single phase convection heat transfer of water in pipes filled with sintered porous metal inner rings or solid inner rings was investigated numerically respectively. Numerical calculations were conducted with the Fluent 6.3 code, using the SST k-ω turbulence model. Comparing to solid-ring turbulator pipes, porous-ring turbulator pipes have better comprehensive heat transfer effect. The maximum PEC for porous-ring turbulator pipes is 4.4 and the PEC of solid-ring turbulator pipes is less than 1. It was also analyzed effect of geometric structures on porous-ring turbulator pipe performance. f/f0 for porous-ring turbulator pipes increases with the increasing of Re while Nu/Nu0 decreases with the increasing of Re ,and PEC decreases with the increasing of Re. With the same Re, if the width of the porous ring is equal to the width of groove, f/f0, Nu/Nu0 increases and PEC decreases with the increasing height of porous ring. When the height of porous ring is constant, the f/f0, Nu/Nu0 and PEC decreases with the increasing height of porous ring under the same Re.

You might also be interested in these eBooks
Mechatronics Engineering, Computing and Information Technology View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 556-562)

Pages:

4275-4279

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.556-562.4275

Citation:

Cite this paper

Online since:

May 2014

Authors:

De Zhi Yang*, Meng Long Dong, Xin Wei Lu, Zhao Yao Zhou

Keywords:

Convection Heat Transfer, Numerical Simulation, Porous Metal Rings, Sintered, Turbulence

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] S. W Perng, H. W Wu, T. C Jue. Numerical investigation of heat transfer enhancement on a porous vortex-generator applied to a block-heated channel [J]. International Journal of Heat and Mass Transfer, 2012, 55: 3121-3137.

DOI: 10.1016/j.ijheatmasstransfer.2012.02.037

Google Scholar

[2] P. X Jiang, X. C Lu. Numerical simulation of fluid flow and convection heat transfer in sintered porous plate channels [J]. International Journal of Heat and Mass Transfer 2006, 49: 1685-1695.

DOI: 10.1016/j.ijheatmasstransfer.2005.10.026

Google Scholar

[3] T. M Jeng, S. C Tzeng. Experimental study of forced convection in metallic porous blocksubject to a confined slot jet [J]. International Journal of Thermal Sciences, 2007, 46: 1242–1250.

DOI: 10.1016/j.ijthermalsci.2007.01.007

Google Scholar

[4] P. X Jiang, M Li, T. J Lu, et al. Experimental research on convection heat transfer in sintered porous plate channels [J]. International Journal of Heat and Mass Transfer， 2004, 47: 2085–(2096).

DOI: 10.1016/j.ijheatmasstransfer.2003.12.004

Google Scholar

[5] K. S Chiem, Y Zhao. Numerical study of steady/unsteady flow and heat transfer in porous media using a characteristics-based matrix-free implicit FV method on unstructured grids [J]. International Journal of Heat and Fluid Flow, 2004, 25: 1015–1033.

DOI: 10.1016/j.ijheatfluidflow.2004.01.005

Google Scholar

[6] Z. F Huang, W Liu, Yang Kun. Study on heat transfer performance for pipe inserted with ring porous and its field synergy analysis [J]. Journal of Engineering Thermophysics, 2009, 30(5): 844-846.

Google Scholar

[7] X. Y Zhang, Z. C Liu, W Liu. Heat Transfer Performance for Pipe Inserted With Helical Screw-Tape Porous Media and Its Field Synergy Analysis [J]. Journal of Engineering Thermophysics, 2011， 32(8): 1371-1374.

Google Scholar

[8] H.Y. Li, K.C. Leong, L.W. Jin, et al. Analysis of fluid flow and heat transfer in a channel with staggered porous blocks [J]. International Journal of Thermal Sciences , 2010, 49: 950-962.

DOI: 10.1016/j.ijthermalsci.2010.01.006

Google Scholar

[9] Y. T Yang, M. L Hwang. Numerical simulation of turbulent fluid flow and heat transfer characteristics in heat exchangers fitted with porous media [J]. International Journal of Heat and Mass Transfer， 2009，52: 2956–2965.

DOI: 10.1016/j.ijheatmasstransfer.2009.02.024

Google Scholar

[10] Y. T Yang, C. Z Hwang. Calculation of turbulent flow and heat –transfer in a porous-baffled channel[J]. International Journal of Heat and Mass Transfer， 2003，46: 771–80.

DOI: 10.1016/s0017-9310(02)00360-5

Google Scholar

[11] K Vafai. Handbook of porous media [M]. New York: Marcel Dekker Inc, (2000).

Google Scholar

[12] S Wang, Z Y Guo, Z X Li. Heat Transfer Enhancement by Using Metallic Filament Insert in Channel Flow [J]. Journal of Heat and Mass Transfer, 2001, 44: 1373-1378.

DOI: 10.1016/s0017-9310(00)00173-3

Google Scholar
