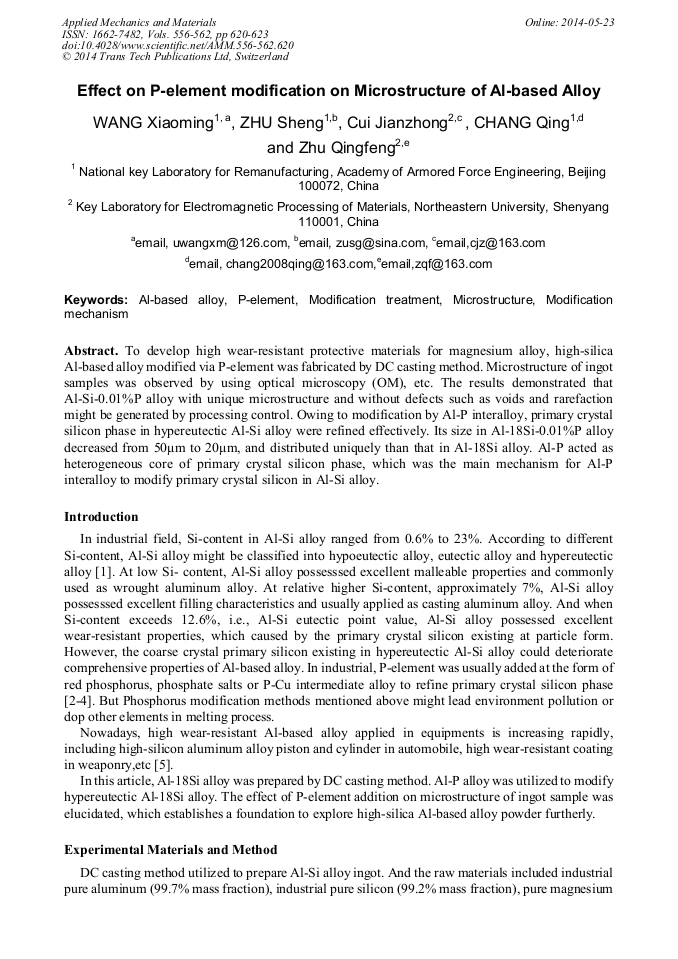

Effect on P-Element Modification on Microstructure of Al-Based Alloy

Abstract:

To develop high wear-resistant protective materials for magnesium alloy, high-silica Al-based alloy modified via P-element was fabricated by DC casting method. Microstructure of ingot samples was observed by using optical microscopy (OM), etc. The results demonstrated that Al-Si-0.01%P alloy with unique microstructure and without defects such as voids and rarefaction might be generated by processing control. Owing to modification by Al-P interalloy, primary crystal silicon phase in hypereutectic Al-Si alloy were refined effectively. Its size in Al-18Si-0.01%P alloy decreased from 50μm to 20μm, and distributed uniquely than that in Al-18Si alloy. Al-P acted as heterogeneous core of primary crystal silicon phase, which was the main mechanism for Al-P interalloy to modify primary crystal silicon in Al-Si alloy.

• Periodical: Applied Mechanics and Materials (Volumes 556-562)
• Pages: 620-623
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.556-562.620
• Online since: May 2014
• Authors: Xiao Ming Wang*, Sheng Zhu, Jian Zhong Cui, Qing Chang, Qing Feng Zhu
• Keywords: Al-Based Alloy, Microstructure, Modification Mechanism, Modification Treatment, P-Element

References

[1] X. Jin, L.X. Gao and D.Q. Zhang: Total Corrosion Control Vol. 24 (2010), p.17.

[2] F.X. Kong: Nonferrous Metals Vol. 12 (2011), p.46.

[3] X.M. Liu, L. Liu: Journal of Jiangxi University of Science and Technology Vol. 29 (2008), p.48.

[4] S.L. Lu, Y.P. Ma: Light Alloy Fabrication Technology Vol. 3(1996), p.42.

[5] B.L. Shen, X.D. L and J. Tang: Special Casting & Nonferrous Alloys Vol. 3 (1996), p.42.

[6] X.F. Liu, J.G. Qiao and Y.X. Liu: Acta Metall. Sin Vol. 40 (2004), p.471.
