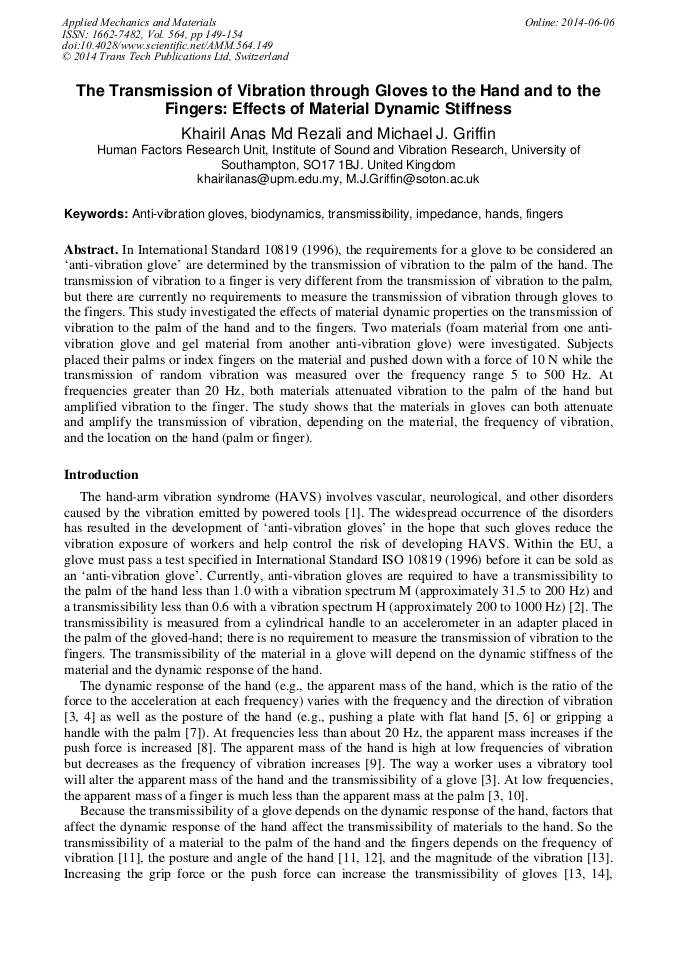

The Transmission of Vibration through Gloves to the Hand and to the Fingers: Effects of Material Dynamic Stiffness

Abstract:

In International Standard 10819 (1996), the requirements for a glove to be considered an anti-vibration glove are determined by the transmission of vibration to the palm of the hand. The transmission of vibration to a finger is very different from the transmission of vibration to the palm, but there are currently no requirements to measure the transmission of vibration through gloves to the fingers. This study investigated the effects of material dynamic properties on the transmission of vibration to the palm of the hand and to the fingers. Two materials (foam material from one anti-vibration glove and gel material from another anti-vibration glove) were investigated. Subjects placed their palms or index fingers on the material and pushed down with a force of 10 N while the transmission of random vibration was measured over the frequency range 5 to 500 Hz. At frequencies greater than 20 Hz, both materials attenuated vibration to the palm of the hand but amplified vibration to the finger. The study shows that the materials in gloves can both attenuate and amplify the transmission of vibration, depending on the material, the frequency of vibration, and the location on the hand (palm or finger).

• Periodical: Applied Mechanics and Materials (Volume 564)
• Pages: 149-154
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.564.149
• Online since: June 2014
• Authors: Khairil Anas Md Rezali*, Michael J. Griffin
• Keywords: Anti-Vibration Gloves, Biodynamics, Fingers, Hands, Impedance, Transmissibility

References

[1] Griffin MJ, Handbook of Human Vibration, Elsevier Academic Press, (1990).

[2] International Organization for Standardization, Mechanical vibration and shock - Hand-arm vibration - Method for the measurement and evaluation of the vibration transmissibility of gloves at the palm of the hand, 1996, International Standard, ISO10819: (1996).

DOI: 10.3403/00886525

[3] Dong RG, Welcome DE, Xueyan SX, Warren C, Mcdowell TW, Wu JZ and Rakheja S : Journal of Sound and Vibration Vol. 331 (2012) pp.1191-1206.

[4] Reynolds DD and Soedel W: Journal of Sound and Vibration Vol. 21 (1972) pp.339-353.

[5] Miwa T: Industrial Health Vol. 2 (1964) pp.95-105.

[6] Miwa T: Industrial Health Vol. 2 (1964) pp.106-123.

[7] Reynolds DD and Keith RH: Journal of Sound and Vibration Vol. 51(2) (1977) pp.237-253.

[8] O'Boyle M and Griffin MJ, Predicting the effects of push force on the transmission of vibration through glove materials to the palm of the hand, Las Vegas, Nevada, USA, 07-11 June (2004).

[9] Concettoni E and Griffin MJ: Journal of Sound and Vibration Vol. 325(3) (2009) pp.664-678.

[10] Rezali KAM and Griffin MJ, An impedance model of the transmissibility of gloves to the palm of the hand and to the fingers, Andreas Stihl Limited, Surrey, UK, England, 16-18 September (2013).

[11] Wu GL and Griffin MJ, Experimental investigation of the dynamic properties of some prototype anti-vibration gloves, 1989, ISVR Technical Memorandum 693, Institute of Sound and Vibration Research, University of Southampton.

[12] Adewusi SA, Rakheja S, Marcotte P: Journal of Sound and Vibration Vol. 329(14) (2010) pp.2953-2971.

DOI: 10.1016/j.jsv.2010.02.001

[13] Laszlo HE and Griffin MJ: Ergonomics 54(5) (2011) pp.488-496.

[14] Paddan GS and Griffin MJ, Standard test for the vibration transmissibility of gloves, 1999, Institute of Sound and Vibration Research, University of Southampton.

[15] Rezali KAM and Griffin MJ, The transmission of vibration through gloves to the hand and the fingers: effects of material thickness, ISVR, University of Southampton, Southampton, England, 17-19 September (2012).
