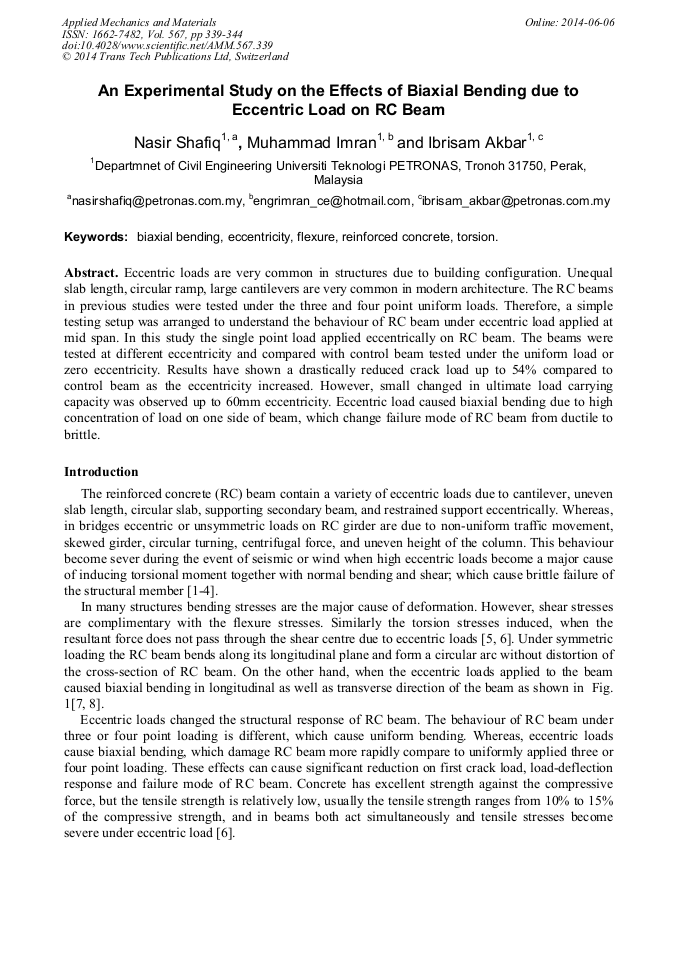

An Experimental Study on the Effects of Biaxial Bending due to Eccentric Load on RC Beam

Abstract:

Eccentric loads are very common in structures due to building configuration. Unequal slab length, circular ramp, large cantilevers are very common in modern architecture. The RC beams in previous studies were tested under the three and four point uniform loads. Therefore, a simple testing setup was arranged to understand the behaviour of RC beam under eccentric load applied at mid span. In this study the single point load applied eccentrically on RC beam. The beams were tested at different eccentricity and compared with control beam tested under the uniform load or zero eccentricity. Results have shown a drastically reduced crack load up to 54% compared to control beam as the eccentricity increased. However, small changed in ultimate load carrying capacity was observed up to 60mm eccentricity. Eccentric load caused biaxial bending due to high concentration of load on one side of beam, which change failure mode of RC beam from ductile to brittle.

• Periodical: Applied Mechanics and Materials (Volume 567)
• Pages: 339-344
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.567.339
• Online since: June 2014
• Authors: Nasir Shafiq*, Muhammad Imran, Ibrisam Akbar
• Keywords: Biaxial Bending, Eccentricity, Flexure, Reinforced Concrete, Torsion

References

[1] A. Ghobarah, M. N. Ghorbel, and S. E. Chidiac, Upgrading Torsional Resistance of Reinforced Concrete Beams Using Fiber-Reinforced Polymer, Journal of Composites for Construction, vol. 6, pp.257-263, (2002).

DOI: 10.1061/(asce)1090-0268(2002)6:4(257)

[2] M. Ameli, H. R. Ronagh, and P. F. Dux, Behavior of FRP strengthened reinforced concrete beams under torsion, Journal of Composites for Construction, vol. 11, pp.192-200, (2007).

DOI: 10.1061/(asce)1090-0268(2007)11:2(192)

[3] M. Imran, N. Shafiq, I. Akbar, and T. Ayub, A Review of RC Beams Strengthened for Flexure, Shear and Torsion Loading, presented at the ESTCON 2012, Kuala Lumpur, (2012).

[4] Muhammad Imran, Nasir Shafiq, and Ibrisam Akbar, Strengthening Techniques & Failure Modes of RC Beam Strengthened Using Fiber Reinforced Polymer. A Review , GSTF Journal of Engineering Technology, vol. 2, August 2013 (2013).

DOI: 10.5176/2251-3701_2.2.77

[5] A. S. Hall, The Mechanics of Solids SI Edition ed. Sydney John Wiley & Sons Australasia PTY LTD, (1973).

[6] E. G. Nawy, Reinforced concrete: Prentice-Hall Englewood Cliffs;, (1985).

[7] M. N. Hassoun and A. A. Al-Manaseer, Structural concrete: theory and design: J. Wiley, (2008).

[8] M. Imran, N. Shafiq, and I. Akbar, Effects of Eccentric Load on Un-Strengthen and CFRP Strengthened RC Beams, in The 3rd International Conference on Green Building Technologies and Materials, Kuala Lumpur, Malaysia, (2013).

DOI: 10.4028/www.scientific.net/amr.935.229

[9] S. H. Al-Tersawy, Effect of fiber parameters and concrete strength on shear behavior of strengthened RC beams, Construction and Building Materials, vol. 44, pp.15-24, 7/ (2013).

DOI: 10.1016/j.conbuildmat.2013.03.007

[10] A. C. 318, Building code requirements for structural concrete (ACI 318-05) and commentary (ACI 318R-05): American Concrete Institute, (2005).

DOI: 10.1061/(asce)1076-0431(1996)2:3(120.3)

[11] W. Radomski, Bridge Rehabilitation: Imperial College Press, (2002).

[12] M. M. Met, Spectacular Bicycle Park Oasis, in google image, ed, (2012).

[13] D. Battagello, Windsor manufacturer stands behind its parkway girders, ed: The Windsor Star (2011).

[14] S. STATS, Two directional car traffic on bridge in city, top view, SHUTTERSTOCK STATS, (2013).
