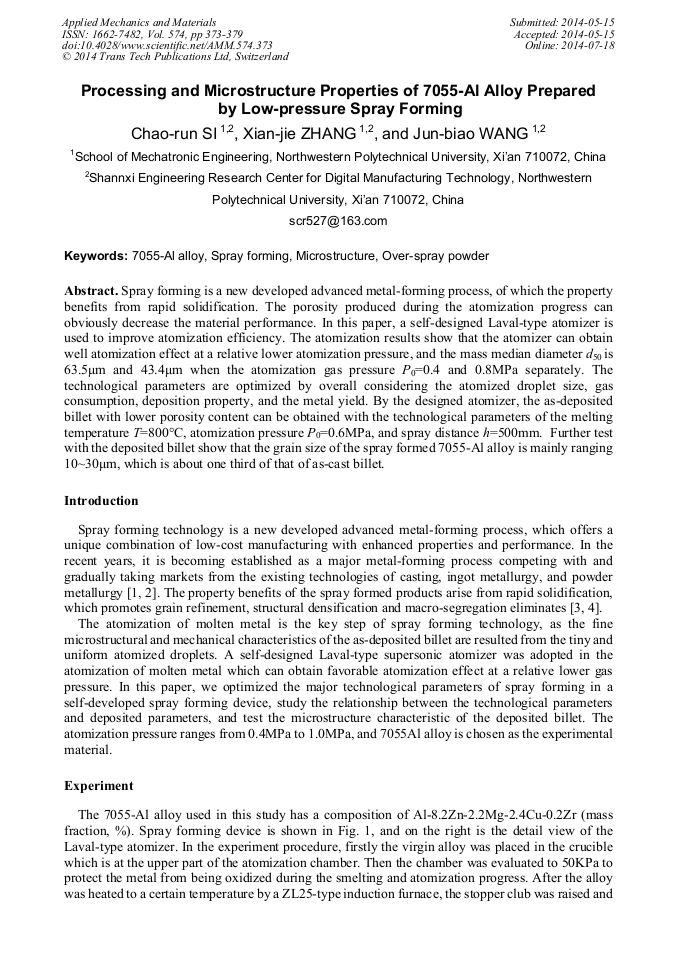

Processing and Microstructure Properties of 7055-Al Alloy Prepared by Low-Pressure Spray Forming

Abstract:

Spray forming is a new developed advanced metal-forming process, of which the property benefits from rapid solidification. The porosity produced during the atomization progress can obviously decrease the material performance. In this paper, a self-designed Laval-type atomizer is used to improve atomization efficiency. The atomization results show that the atomizer can obtain well atomization effect at a relative lower atomization pressure, and the mass median diameter d₅₀ is 63.5μm and 43.4μm when the atomization gas pressure P₀=0.4 and 0.8MPa separately. The technological parameters are optimized by overall considering the atomized droplet size, gas consumption, deposition property, and the metal yield. By the designed atomizer, the as-deposited billet with lower porosity content can be obtained with the technological parameters of the melting temperature T=800°C, atomization pressure P₀=0.6MPa, and spray distance h=500mm. Further test with the deposited billet show that the grain size of the spray formed 7055-Al alloy is mainly ranging 10~30μm, which is about one third of that of as-cast billet.

• Periodical: Applied Mechanics and Materials (Volume 574)
• Pages: 373-379
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.574.373
• Online since: July 2014
• Authors: Chao Run Si*, Xian Jie Zhang, Jun Biao Wang
• Keywords: 7055-Al Alloy, Microstructure, Over-Spray Powder, Spray Forming

References

[1] K. Raju, S.N. Ojha, A. Harsha, Spray forming of aluminum alloys and its application, J. Mater. Sci. 43 (2008) 2509-2521.

DOI: 10.1007/s10853-008-2464-x

[2] E.J. Lavernia, T.S. Srivatsan, The rapid solidification processing of materials: science, principles, technology, advances, and applications, J. Mater. Sci. 45 (2010) 287-325.

DOI: 10.1007/s10853-009-3995-5

[3] A. Leatham, Spray forming: Alloys, products and markets, Met. Powder Rep. 54 (1999) 8-23.

[4] C. Czisch, U. Fritsching, Atomizer design for viscous-melt atomization, Mater. Sci. Eng., A. 477 (2008) 21-25.

DOI: 10.1016/j.msea.2007.06.087

[5] H. Lubanska, Correlation of spray ring data for gas atomization of liquid metals, J. Met. 22 (1969) 45-53.

DOI: 10.1007/bf03355938

[6] Q. Xu, V.V. Gupta, E.J. Lavernia, Thermal behavior during droplet-based deposition, Acta Mater. 48 (2000) 835-849.

DOI: 10.1016/s1359-6454(99)00389-4

[7] W.D. Cai, E.J. Lavernia, Modeling of porosity during spray forming: Part I. Effects of processing parameters, Metall. Mater. Trans. B. 29 (1998) 1085-1096.

DOI: 10.1007/s11663-998-0078-y

[8] W.D. Cai, E.J. Lavernia, Modeling of porosity during spray forming: Part II. Effects of atomization gas chemistry and alloy compositions, Metall. Mater. Trans. B. 29 (1998)1097-1106.

DOI: 10.1007/s11663-998-0079-x
