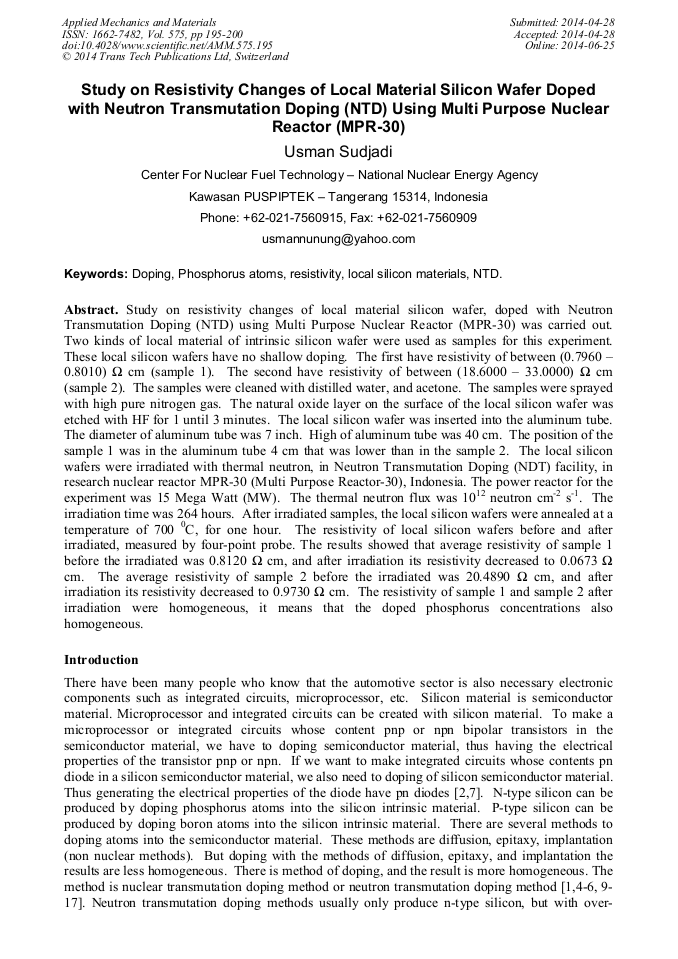

Study on Resistivity Changes of Local Material Silicon Wafer Doped with Neutron Transmutation Doping (NTD) Using Multi Purpose Nuclear Reactor (MPR-30)

Abstract:

Study on resistivity changes of local material silicon wafer, doped with Neutron Transmutation Doping (NTD) using Multi Purpose Nuclear Reactor (MPR-30) was carried out. Two kinds of local material of intrinsic silicon wafer were used as samples for this experiment. These local silicon wafers have no shallow doping. The first have resistivity of between (0.7960 – 0.8010) Ω cm (sample 1). The second have resistivity of between (18.6000 – 33.0000) Ω cm (sample 2). The samples were cleaned with distilled water, and acetone. The samples were sprayed with high pure nitrogen gas. The natural oxide layer on the surface of the local silicon wafer was etched with HF for 1 until 3 minutes. The local silicon wafer was inserted into the aluminum tube. The diameter of aluminum tube was 7 inch. High of aluminum tube was 40 cm. The position of the sample 1 was in the aluminum tube 4 cm that was lower than in the sample 2. The local silicon wafers were irradiated with thermal neutron, in Neutron Transmutation Doping (NDT) facility, in research nuclear reactor MPR-30 (Multi Purpose Reactor-30), Indonesia. The power reactor for the experiment was 15 Mega Watt (MW). The thermal neutron flux was 10¹² neutron cm^-2 s^-1. The irradiation time was 264 hours. After irradiated samples, the local silicon wafers were annealed at a temperature of 700 ⁰C, for one hour. The resistivity of local silicon wafers before and after irradiated, measured by four-point probe. The results showed that average resistivity of sample 1 before the irradiated was 0.8120 Ω cm, and after irradiation its resistivity decreased to 0.0673 Ω cm. The average resistivity of sample 2 before the irradiated was 20.4890 Ω cm, and after irradiation its resistivity decreased to 0.9730 Ω cm. The resistivity of sample 1 and sample 2 after irradiation were homogeneous, it means that the doped phosphorus concentrations also homogeneous.

• Periodical: Applied Mechanics and Materials (Volume 575)
• Pages: 195-200
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.575.195
• Online since: June 2014
• Authors: Usman Sudjadi*
• Keywords: Doping, Local Silicon Materials, NTD, Phosphorus Atoms, Resistivity

References

[1] Interatom. Neutron Physical Aspects of Design and Operation of the Silicon Doping Facility. 54. 07698. 8, (1988).

[2] Neamen, Donald, Microelectronics Circuit Analysis And Desain. Ny: Mc Graw-Hill, (2009).

[3] Sze,S. M, Semiconductor Devices Physics and Technology. USA: John Wiley & Sons, (2001).

[4] Bukowski, K, Examination of Properties and Development of Silicon Doped by The Neutron Transmutation Method. Institute for Technology of Electronic. Marsaw, Poland, (1990).

[5] M. Pawlowska, Investigation of Heterogenities in Neutron Transmutated Silicon Single Crystals, Institude for tecnology of Electronic Material. Marsaw, Poland, (1988).

[6] A. Bukowski, Investigation of The Abnormal Diffusion Effect of Gold in The NTD Silicon, Institude for technology of Electronic Material Marsaw, Poland, (1990).

[7] Ingolf Ruge, Dotierung durch Kernumwandlung, Halbleiter-Technologie, Springer Verlag Berlin, Heidelberg, printed in Germany, (1984).

[8] U. Sudjadi, S. Weiss, A. Bock, and R. Kassing, Investigation of a Pd-Au complex in n-type silicon with DLTFS techniques, Physica status solidi (a), Vol. 149, 649-658, (1995).

DOI: 10.1002/pssa.2211490215

[9] Soekarno, MPR-30 Silicon Doping Facility, internal report, National Nuclear Energy Agency, Indonesia, (1989).

[10] Sarwani, Irradiation of Silicon in the MPR-30 reactor, a nuclear reactor utilization proceedings of a seminar for the public welfare, the National Nuclear Energy Agency, Indonesia, (1990).

[11] Kuntoro and Hastowo, Experience with Neutron Transmutation Doping Facility Operation at the MPR-30 reactor, IAEA (International Atomic Energy Agency) Technical Reports Series No. 455, Vienna, (2007).

[12] H. Hendiyanto, Application of Nuclear Technique in Industry, National Nuclear Energy Agency Indonesia – JAERI Training Course, (2004).

[13] Anonymous, Practical Aspect of Operating a Neutron Activation Analysis Laboratory, IAEA-TECDOC-564, Technical document issued by IAEA, Vienna, (1990).

[14] Imam et al, Reports neutron flux measurement data in silicon doping facility power of 2 MW reactor terrace 67 MPR-30, Division of reactor operation, the National Nuclear Energy Agency, Indonesia, (2009).

[15] Anonymous, Neutron Transmutation Doping of Silicon at Research Reactors, IAEA-TECDOC-1681, subject classification: 0501-Radiation Processing, ISBN: 978-92-0-130010-2, (2012).

[16] Anonymous, Neutron Transmutation Doping of Silicon at the MIT Nuclear Reactor Laboratory, 138 Albany street, Cambridge, MA 02139, http: /web. mit. edu/nrl/www/research/ntd-silicon. htm, (2012).
