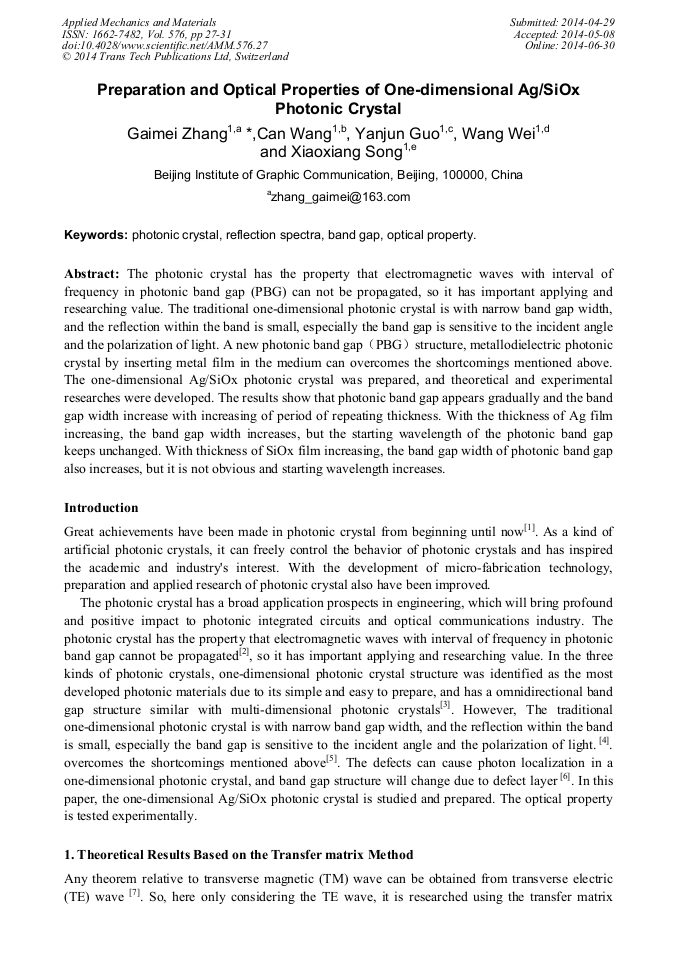

Preparation and Optical Properties of One-Dimensional Ag/SiOx Photonic Crystal

Abstract:

The photonic crystal has the property that electromagnetic waves with interval of frequency in photonic band gap (PBG) can not be propagated, so it has important applying and researching value. The traditional one-dimensional photonic crystal is with narrow band gap width, and the reflection within the band is small, especially the band gap is sensitive to the incident angle and the polarization of light. A new photonic band gap (PBG) structure, metallodielectric photonic crystal by inserting metal film in the medium can overcomes the shortcomings mentioned above. The one-dimensional Ag/SiOx photonic crystal was prepared, and theoretical and experimental researches were developed. The results show that photonic band gap appears gradually and the band gap width increase with increasing of period of repeating thickness. With the thickness of Ag film increasing, the band gap width increases, but the starting wavelength of the photonic band gap keeps unchanged. With thickness of SiOx film increasing, the band gap width of photonic band gap also increases, but it is not obvious and starting wavelength increases.

• Periodical: Applied Mechanics and Materials (Volume 576)
• Pages: 27-31
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.576.27
• Online since: June 2014
• Authors: Gai Mei Zhang*, Can Wang, Yan Jun Guo, Wang Wei, Xiao Xiang Song
• Keywords: Band Gap, Optical Property, Photonic Crystal (PC), Reflection Spectra

References

[1] J. Mao, X.X. Zhang, S. Hu, et al, Analysis of transfer characteristics of one-dimensional photonic crystal and its application with transfer matrix method. Infrared, Vol. 29(5)(2008), p.1~4.

[2] J. Xu, P. P. Du, Y. J. Li, Progress on the camouflage application of photonic crystals. Laser & Infrared. Vol. 39(11)(2009), p.1133~1136.

[3] D. P. Zhao, J.M. Shi, B.L. Liu, et al, Study on the spectrum of the one-dimenndional metallodielectric photonic crystal. Laser & Infrared. Vol. 38(7)(2008), p.688~691.

[4] Y. H. Luo, Y. S. Wang, D. G. Wang, et al, Optical properties of one-dimensional metallodielectric photonic crystals. Spectroscopy and Spectral Analysis, Vol. 28(2), p.256~259.

[5] P. Zhou, H.Y. You, S.Y. Wang, et al, Effect of the inserted metal layer on the characteristic of light transmission of one-dimensional photonic crystals. Acta Physica Sinica. Vol. 51(10)(2002), p.2276~2280.

[6] E. Yablonovitch, Inhibited spontaneous emission in solid-state physics an electronics [J], Phys Rev Lett. Vol. 67(17)(1991), p.2259~2262.

[7] Y. F. Wang, L. B. Yang, Q. Yue, MARLAB matrix decomposition algorithm for initial/boundary value problem of two-dimensional photonic crystal. Vol. 40 (2010), p.8.

[8] L.Q. Mei, W. M. Ye, C. Zen, et al, The Characteristic Properties of Transmission Research of 2- D Photonic Crystals Using the Transfer Matrix Method ( TMM). Acta sinica Quantum Optica, Vol. 9(2)(2003), p.88~92.

[9] H. Wang, Y. P. Li, An Eigen Matrix Method for Obtaining the Band Structure of Photonic Crystals. Acta Physica Sinica, Vol. 50(11)(2001), p.2172~2178.
