Design and Simulation of S-Band Low Noise Amplifier Based on ATF-54143

Abstract:

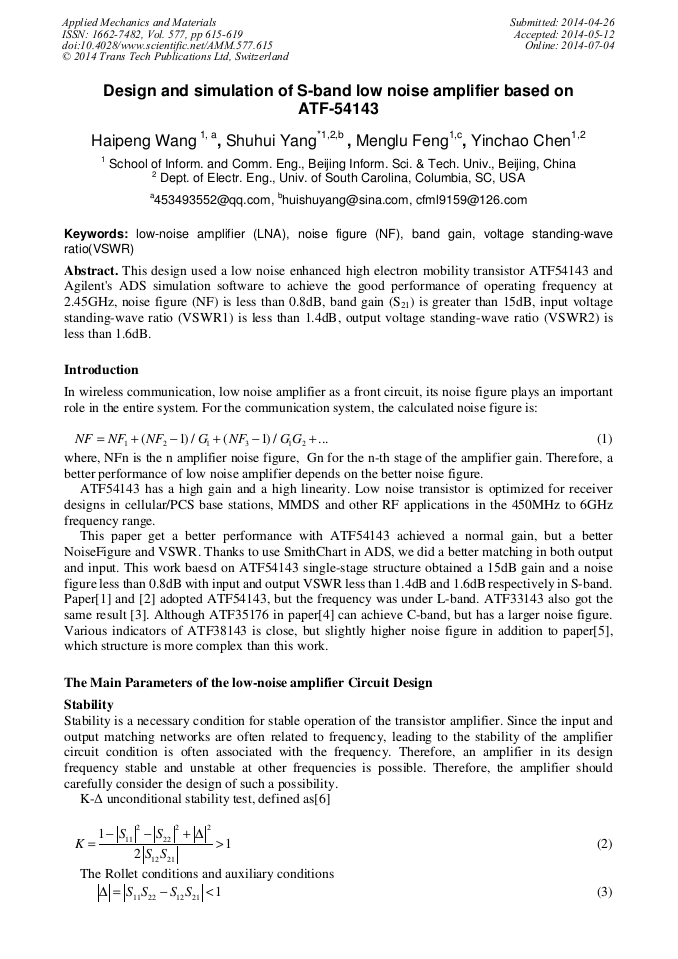

This design used a low noise enhanced high electron mobility transistor ATF54143 and Agilent's ADS simulation software to achieve the good performance of operating frequency at 2.45GHz, noise figure (NF) is less than 0.8dB, band gain (S₂₁) is greater than 15dB, input voltage standing-wave ratio (VSWR1) is less than 1.4dB, output voltage standing-wave ratio (VSWR2) is less than 1.6dB.
