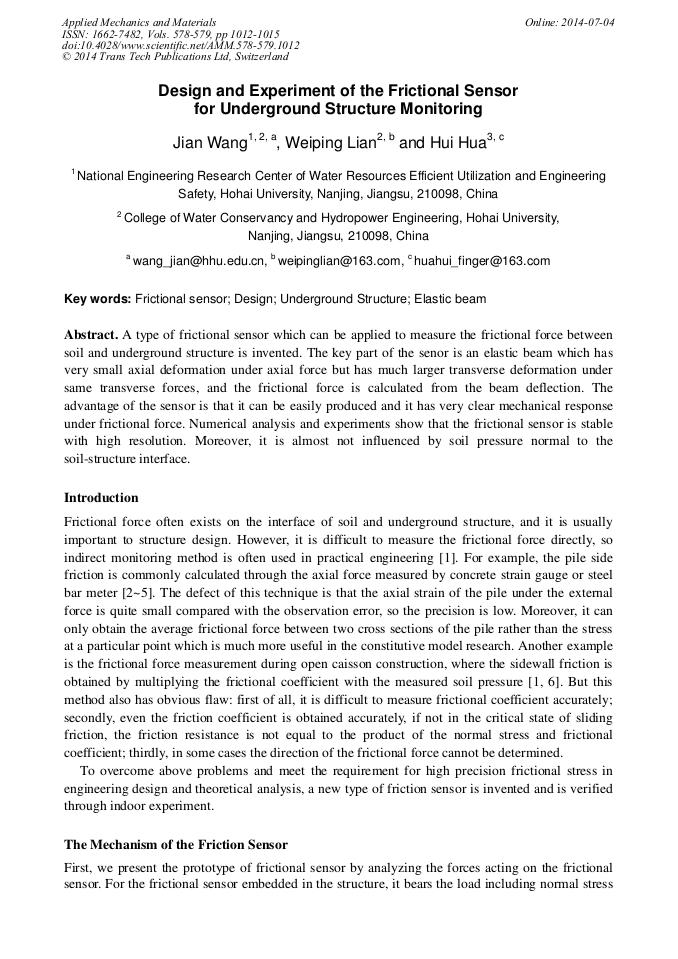

Design and Experiment of the Frictional Sensor for Underground Structure Monitoring

Abstract:

A type of frictional sensor which can be applied to measure the frictional force between soil and underground structure is invented. The key part of the senor is an elastic beam which has very small axial deformation under axial force but has much larger transverse deformation under same transverse forces, and the frictional force is calculated from the beam deflection. The advantage of the sensor is that it can be easily produced and it has very clear mechanical response under frictional force. Numerical analysis and experiments show that the frictional sensor is stable with high resolution. Moreover, it is almost not influenced by soil pressure normal to the soil-structure interface.

• Periodical: Applied Mechanics and Materials (Volumes 578-579)
• Pages: 1012-1015
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.578-579.1012
• Online since: July 2014
• Authors: Jian Wang*, Wei Ping Lian, Hui Hua
• Keywords: Design, Elastic Beam, Frictional Sensor, Underground Structure

References

[1] Jing Zhang, Quande Liu: Journal of the China Railway Society. Vol. 6 (1984), pp.78-87 (in Chinese).

[2] Jinrong Dong, Shengtian Lin, Yimin Dai: Chinese Journal of Geotechnical Engineering. Vol. 16 (1994), pp.123-131 (in Chinese).

[3] Qinghong Hu, Tuqiao Zhang, Xinyu Xie: China civil engineering journal. Vol. 40 (2007), pp.87-103 (in Chinese).

[4] Bing Xu, Guofu Cao: Chinese Journal of Geotechnical Engineering. Vol. 28 (2006), pp.56-58 (in Chinese).

[5] Shenggen Huang, Weiming Gong: Chinese Journal of Rock Mechanics and Engineering. Vol. 23 (2004), pp.3370-3375 (in Chinese).

[6] Xiaoping Chen, Pingyi Qian, Zhiyong Zhang: Chinese Journal of Geotechnical Engineering. Vol. 27 (2005), pp.148-152 (in Chinese).
