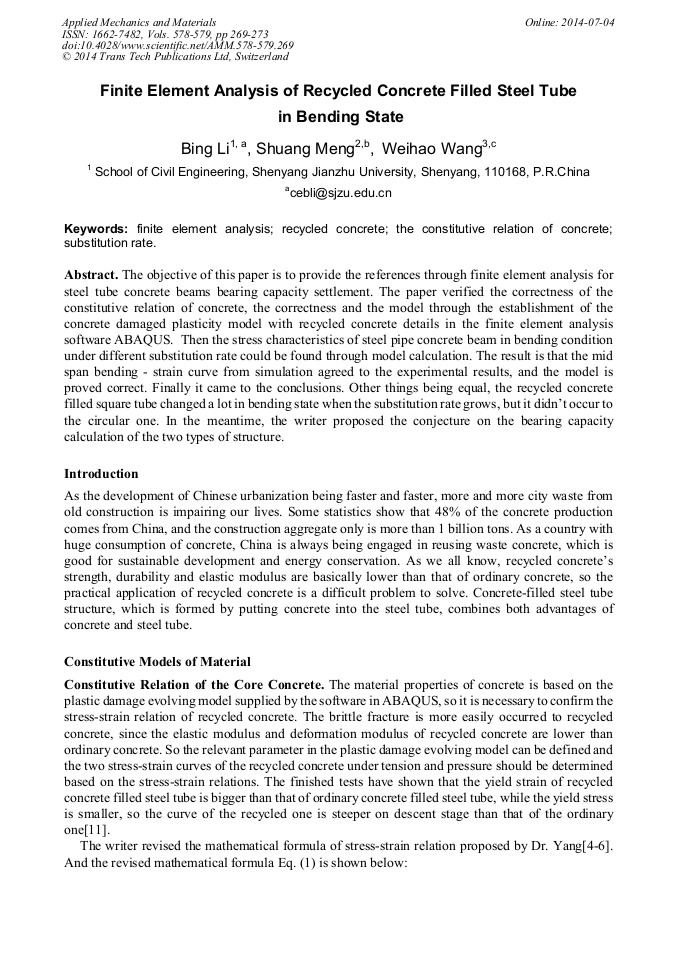

Finite Element Analysis of Recycled Concrete Filled Steel Tube in Bending State

Abstract:

The objective of this paper is to provide the references through finite element analysis for steel tube concrete beams bearing capacity settlement. The paper verified the correctness of the constitutive relation of concrete, the correctness and the model through the establishment of the concrete damaged plasticity model with recycled concrete details in the finite element analysis software ABAQUS. Then the stress characteristics of steel pipe concrete beam in bending condition under different substitution rate could be found through model calculation. The result is that the mid span bending - strain curve from simulation agreed to the experimental results, and the model is proved correct. Finally it came to the conclusions. Other things being equal, the recycled concrete filled square tube changed a lot in bending state when the substitution rate grows, but it didn’t occur to the circular one. In the meantime, the writer proposed the conjecture on the bearing capacity calculation of the two types of structure.

• Periodical: Applied Mechanics and Materials (Volumes 578-579)
• Pages: 269-273
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.578-579.269
• Online since: July 2014
• Authors: Bing Li*, Shuang Meng, Wei Hao Wang
• Keywords: Constitutive Relation of Concrete, Finite Element Analysis (FEA), Recycled Concrete, Substitution Rate

References

[1] L H Han, X K Lin. Tests on Cyclic Behavior of Concrete2Filled Hollow Structural Steel Columns After Exposure to the ISO2834 Standard Fire. Journal of Structural Engineering, ASCE, 2004, 130 (11) : 1807 – 1819.

DOI: 10.1061/(asce)0733-9445(2004)130:11(1807)

[2] Guichuan Yan. Calculation of The Model and The Reliability of The Flexural Capacity of Concrete Beam [D]. Harbin: Harbin Industrial University, (2008).

[3] Bin Li, Xiang Wen. Experimental Study on Flexural Behavior of Concrete Beams of Rectangular Steel Tube [J]. Building Structure, 2010（6）: 51-52.

[4] Zhaohua Du. Experimental Study on Flexural Behavior of Concrete Beams With Recycled Aggregate[J]. Concrete, 2012（3）: 44-46.

[5] Qingli Wang, Xiaochen Liu, Qinggang Li, Yue Wang. The Static Performance of Flexural Member of High Performance Steel[J]. Industrial Construction, 2013（3）13-17.

[6] Qingli Wang, Haibo Zhang, Dongfeng Pan, Chunxiao Yin. Circular CFRP-concrete filled steel tube in bending state[J]. Journal of Shenyang Jianzhu University. (2006).

[7] Jinghai Zhou, Dong Zhang, Yongsheng Yang. Tests on scrap fiber recycled concrete in bending state[J]. Journal of Shenyang Jianzhu University. (2013).

[8] Guochang Li, Zhaoqiang Wang, Yumei Shao. Analysis of coal gangue recycled concrete filled steel tube in bending state[J]. Journal of Shenyang Jianzhu University. (2005).

[9] Qingli Wang, Guilan Jiang, Yifu Gao. Tests on CFRP reinforced concrete filled circular steel tube in bending state[J]. Journal of Shenyang Jianzhu University. (2006).
