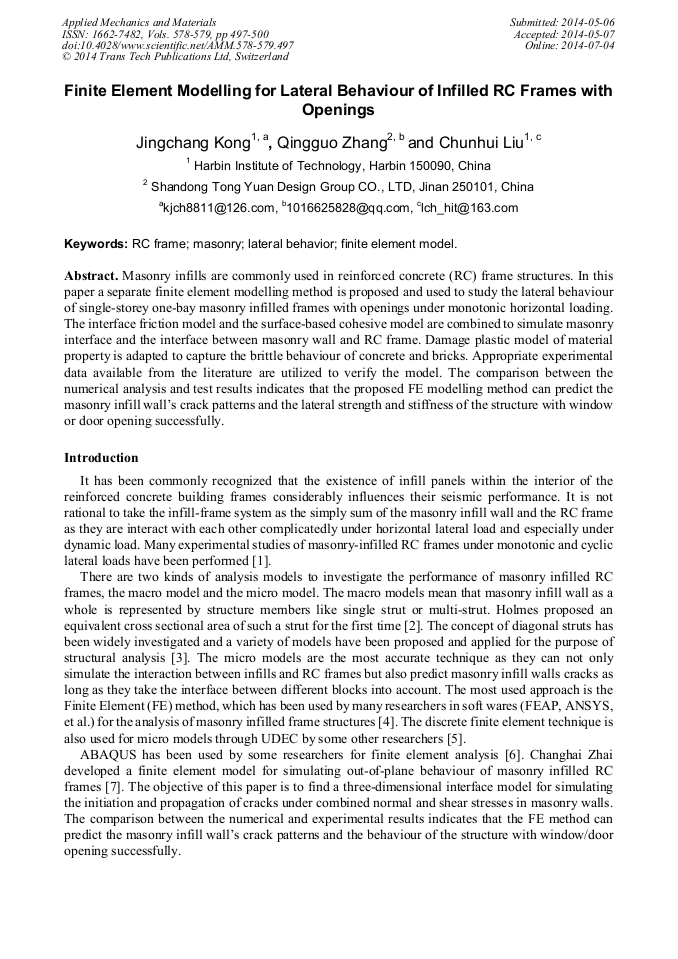

Finite Element Modelling for Lateral Behaviour of Infilled RC Frames with Openings

Abstract:

Masonry infills are commonly used in reinforced concrete (RC) frame structures. In this paper a separate finite element modelling method is proposed and used to study the lateral behaviour of single-storey one-bay masonry infilled frames with openings under monotonic horizontal loading. The interface friction model and the surface-based cohesive model are combined to simulate masonry interface and the interface between masonry wall and RC frame. Damage plastic model of material property is adapted to capture the brittle behaviour of concrete and bricks. Appropriate experimental data available from the literature are utilized to verify the model. The comparison between the numerical analysis and test results indicates that the proposed FE modelling method can predict the masonry infill wall’s crack patterns and the lateral strength and stiffness of the structure with window or door opening successfully.

• Periodical: Applied Mechanics and Materials (Volumes 578-579)
• Pages: 497-500
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.578-579.497
• Online since: July 2014
• Authors: Jing Chang Kong*, Qing Guo Zhang, Chun Hui Liu
• Keywords: Finite Element Model (FEM), Lateral Behavior, Masonry, RC Frame

References

[1] Angel, R., Abrams. D., Shapiro, D., Uzarski, J., Webster, M.: Behavior of Reinforced Concrete Frames with Masonry Infills. In: Research report. University of Illinois at Urbana-Champaign, (1994).

[2] Holmes, M.: Steel Frames with Brickwork and Concrete Infilling. In: Proceedings Institution of Civil Engineering, 19, (1961), p.473–478.

DOI: 10.1680/iicep.1961.11305

[3] Stafford, Smith, B.: Lateral stiffness of infilled frames. In: Journal of the Structural Division, 88, (1962), pp.183-199.

DOI: 10.1061/jsdeag.0000849

[4] Mallick, D. V, Severn, R.T.: The Behaviour of Infilled Frames under Static Loading. In: Pro-ceedings Institution of Civil Engineering, 38, (1967), pp.639-656.

DOI: 10.1680/iicep.1967.8192

[5] Mohebkhah, A., Tasnimi, A.A., Moghadam, H.A.: Nonlinear Analysis of Masonry Infilled Steel Frames with Openings Using Discrete Element Method. In: Journal of Constructional Steel Research, 64, (2008), pp.1463-1472.

DOI: 10.1016/j.jcsr.2008.01.016

[6] Moghadam, H.A., Goudarzi, N.: Transverse resistance of masonry infills. In: ACI Structural Journal, 107, (2010), pp.461-467.

[7] Zhai, C. H., Kong, J. C., Wang, X. H.: A finite element model for simulating out-of-plane behavior of masonry infilled RC frames. In: Applied Mechanics and Materials, 166-169, (2012), pp.849-852.

DOI: 10.4028/www.scientific.net/amm.166-169.849

[8] Stavridis, A.: Analytical and Experimental Study of Seismic Performance of Reinforced Concrete Frames Infilled with Masonry Walls. PhD diss. University of California at San Diego, (2009).
