Mechanical Property and Corrosion Resistance of Ti-15V-3Cr-3Sn-3Al Alloy Weldment with Ti-6Al-4V Filler Following a Gas Tungsten Arc Welding Process

Abstract:

In this study TIG welding was carried out in Ti-15V-3Cr-3Al-3Sn alloy by using Ti-6-4 alloy filler. The effect of two common industrial heat treatments (artificial aging treatment at 593°C/2hr /air cooling or a solution treatment at 788°C/30min/air cooling plus aging at 510°C/8hr/furnance cooling) on the microstructure, mechanical property and corrosion resistance of weldment were investigated. It appears that these post weld heat treatment result in enhanced mechanical property as well as its corrosion resistance. In addition, solution plus aging treatment presents the excellent mechanical property and corrosion resistance. TEM investigation is also carried out to observe the nano size precipitates in heat affected zone (HAZ) and fusion zone (FZ). The possible enhanced mechanisms are discussed.

You might also be interested in these eBooks

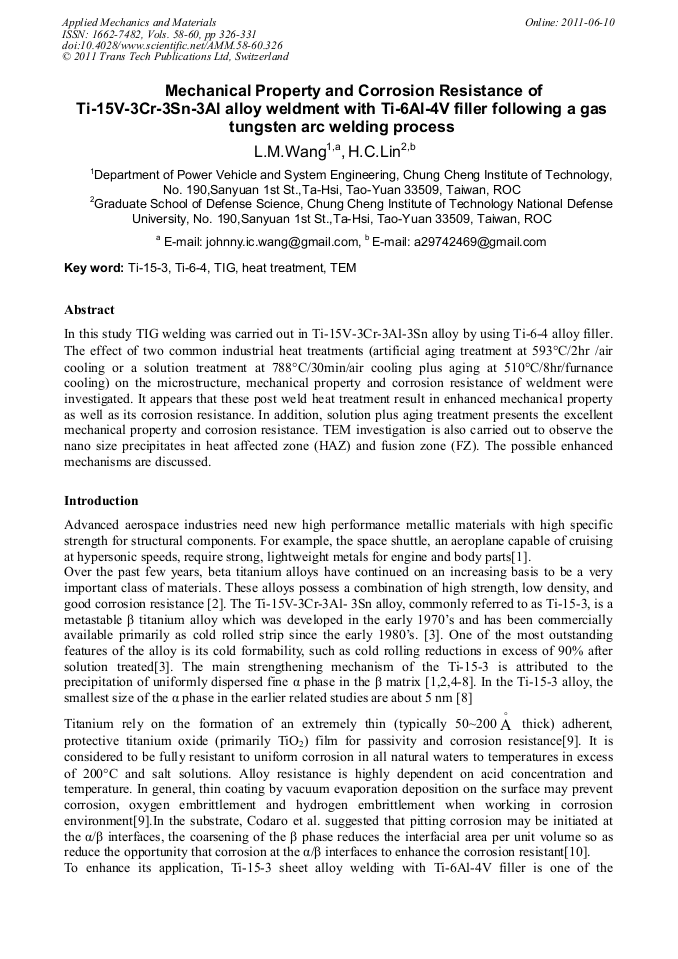

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 58-60)

Pages:

326-331

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.58-60.326

Citation:

Cite this paper

Online since:

June 2011

Authors:

L.M. Wang, H.C. Lin

Keywords:

Heat Treatment, TEM, Ti-15-3, Ti-6-4, TIG

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Niinomi, M. and Kobayashi, T., ISIJ Int. Vol. 31(1991), pp.848-855.

Google Scholar

[2] Ankem, S. and Greene, C. A., Mater. Sci. Eng., A263(1999), pp.127-131.

Google Scholar

[3] Bania, P. J., Conference on Titanium Products and Applications, pp.56-83, (1986).

Google Scholar

[4] N. Naotake, A. Akira, ISIJ Int. Vol. 31 (1991), p.856.

Google Scholar

[5] Furuhara, T., Maki, T., and Makino, T., J. Mater. Process. Technol., Vol. 117, pp.318-323, November (2001).

Google Scholar

[6] Weiss, I. and Semiatin, S. L., Mater. Sci. Eng., A243 (1998), pp.46-65.

Google Scholar

[7] Kawabe, Y. and Muneki S., ISIJ Int. Vol. 31, pp.785-791, May (1991).

Google Scholar

[8] H.C. Lin, L.M. Wang, Mater. Chem. Physs., Vol. 126 (2011), pp.891-897.

Google Scholar

[9] Schutz, R. W., Beta titanium alloys in the 1990's, Warrendale, Pennsylvania, pp.75-91, (1993).

Google Scholar

[10] Codaro, E. N., Nakazato, R. Z., Horovistiz, A. L., Ribeiro L. M. F., Ribeiro, R. B., and Hein, L. R. O., Mater. Sci. Eng., A341 (1003), pp.202-210.

Google Scholar

[11] S. Kalpakjian and S. R. Schmid, Manufacturing engineering and technology, fifth edition in SI units, Pearson education offices in Asia, 2007, p.946.

Google Scholar

[12] J. W. Elmer, T. A. Palmer, S. S. Babu, W. Zhang and T. Debroy, J. Appl. Phys., Vol. 95(2004), p.8327.

Google Scholar

[13] Fujii, H. and Suzuki, G., Beta titanium alloys in the 1990's, Warrendale, Pennsylvania, pp.249-259, (1993).

Google Scholar
