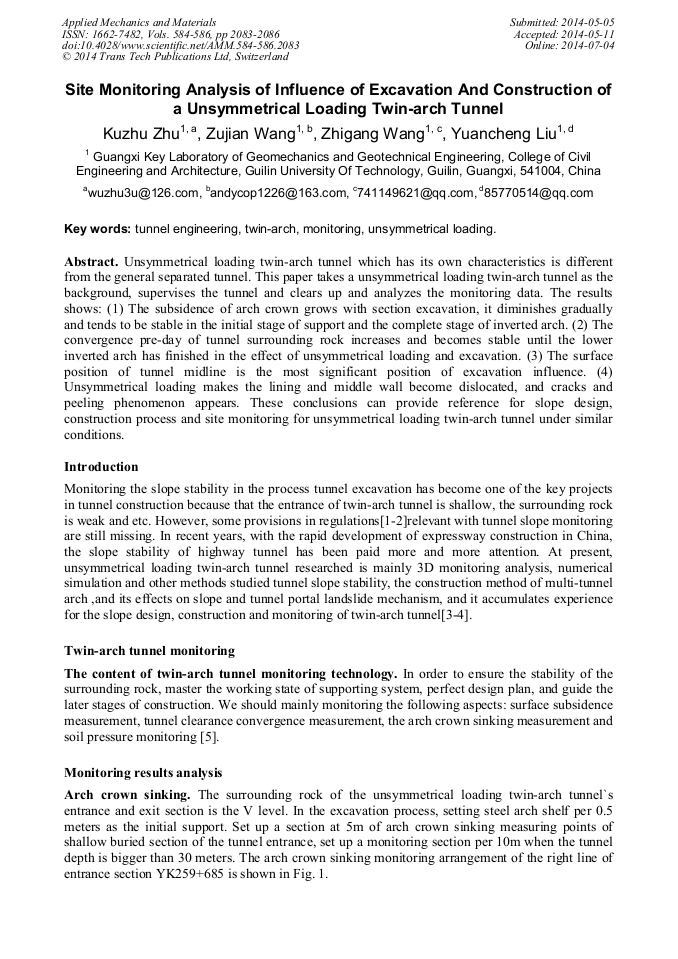

Site Monitoring Analysis of Influence of Excavation and Construction of a Unsymmetrical Loading Twin-Arch Tunnel

Abstract:

Unsymmetrical loading twin-arch tunnel which has its own characteristics is different from the general separated tunnel. This paper takes a unsymmetrical loading twin-arch tunnel as the background, supervises the tunnel and clears up and analyzes the monitoring data. The results shows: (1) The subsidence of arch crown grows with section excavation, it diminishes gradually and tends to be stable in the initial stage of support and the complete stage of inverted arch. (2) The convergence pre-day of tunnel surrounding rock increases and becomes stable until the lower inverted arch has finished in the effect of unsymmetrical loading and excavation. (3) The surface position of tunnel midline is the most significant position of excavation influence. (4) Unsymmetrical loading makes the lining and middle wall become dislocated, and cracks and peeling phenomenon appears. These conclusions can provide reference for slope design, construction process and site monitoring for unsymmetrical loading twin-arch tunnel under similar conditions.

• Periodical: Applied Mechanics and Materials (Volumes 584-586)
• Pages: 2083-2086
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.584-586.2083
• Online since: July 2014
• Authors: Ku Zhu Zhu*, Zu Jian Wang, Zhi Gang Wang, Yuan Cheng Liu
• Keywords: Monitoring, Tunnel Engineering, Twin-Arch, Unsymmetrical Loading

References

[1] The Professional Standards Compilation Group of People's Republic of China. JTJ Code for design of highway tunnel [s]. D70-2004 Beijing: China Communications Press, 2004. (In Chinese).

[2] The Professional Standards Compilation Group of People's Republic of China. JTG F60-2009 Code for construction of road tunnel [s]. Beijing: China Communications Press, 2009. ( In Chinese).

[3] Dingheng Zhou, Liqiao Cao, Hongwei Yang, et al. In-situ monitoring and analysis of 3D slope deformation in twin-arch tunnel [J]. Chinese Journal of Rock Mechanics and Engineering, 2010, 29 (Supp. 2): 3785-3791. (In Chinese).

[4] Jianxiu Wang, Yiqun Tang, Hehua Zhu, et al. 3D monitoring and analysis of landslide deformation caused by twin-arch tunnel [J]. Chinese Journal of Rock Mechanics and Engineering,  2006, 25 (11): 2 226-2 232. (In Chinese).

[5] Minghui Jia. Research on the slop stability and control technique at the tunnel entrance[M. S. Thesis][D]. Shanghai: Tongji University, 2007. (In Chinese).
