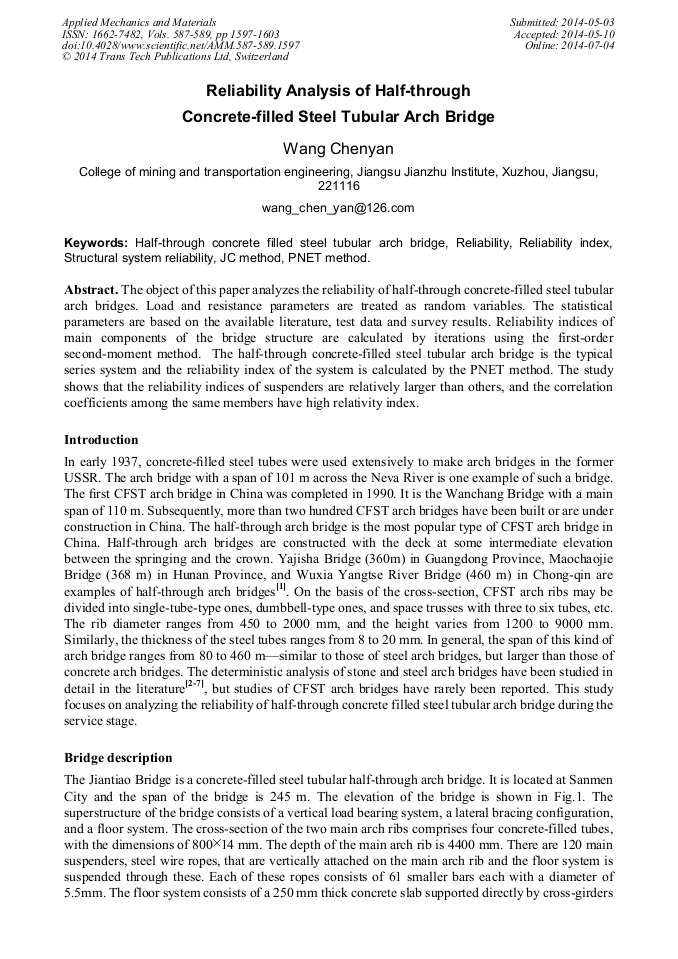

Reliability Analysis of Half-Through Concrete-Filled Steel Tubular Arch Bridge

Abstract:

The object of this paper analyzes the reliability of half-through concrete-filled steel tubular arch bridges. Load and resistance parameters are treated as random variables. The statistical parameters are based on the available literature, test data and survey results. Reliability indices of main components of the bridge structure are calculated by iterations using the first-order second-moment method. The half-through concrete-filled steel tubular arch bridge is the typical series system and the reliability index of the system is calculated by the PNET method. The study shows that the reliability indices of suspenders are relatively larger than others, and the correlation coefficients among the same members have high relativity index.

• Periodical: Applied Mechanics and Materials (Volumes 587-589)
• Pages: 1597-1603
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.587-589.1597
• Online since: July 2014
• Authors: Chen Yan Wang
• Keywords: Half-Through Concrete Filled Steel Tubular Arch Bridge, JC Method, PNET Method, Reliability, Reliability Index, Structural System Reliability

References

[1] Ding DJ. Development of Concrete-filled Tubular Arch Bridges, China. Structural Engineering International (SEI), IABSE Vol. 11, (2001)p.265.

[2] Chen BC. Nonlinear Characteristics and Ultimate Load-carrying Capacity of Concrete-filled Tubular arch. A Thesis Submitted to Kyushu University, in Accordance with the Requirements for the Degree of Doctor of Engineering, Department of Civil and Structural Engineering, Japan. (2003).

[3] Clemente P. Introduction to Dynamics of Stone Arches. Earthquake Engineering and Structural Dynamics. Vol. 27 (1998), p.513.

DOI: 10.1002/(sici)1096-9845(199805)27:5<513::aid-eqe740>3.0.co;2-o

[4] Roeder CW, Macrae G, Crocker P et al. Dynamic Response and Fatigue of Steel Tied-arch Bridge. Journal of Bridge Engineering, ASCE; Vol. 5(2000), p.14.

DOI: 10.1061/(asce)1084-0702(2000)5:1(14)

[5] Nonaka T, Ali A. Dynamic Response of Half-through Steel Arch Bridge Using Fiber Model. Journal of Bridge Engineering, ASCE; Vol. 6(2001), p.482.

DOI: 10.1061/(asce)1084-0702(2001)6:6(482)

[6] Calcada R, Cunha A, Delgado R. Dynamic Analysis of Metallic Arch Railway Bridge. Journal of Bridge Engineering, ASCE; Vol. 7(2002), p.214.

DOI: 10.1061/(asce)1084-0702(2002)7:4(214)

[7] Ren W-X, Zhao T, Harik IE. Experimental and Analytical Modal Analysis of a Steel Arch Bridge. Journal of Structural Engineering, ASCE; Vol. 130(2004), p.1.

DOI: 10.1061/(asce)0733-9445(2004)130:7(1022)

[8] Unified Standard for Reliability Design of Highway Engineering Structures(GB/T 50283-1999). Beijing: China Planning Press. (1999).

[9] Chaw K W. Reliability and Performance-based Design by Artificial Neural Network. Advances in Engineering Software. Vol. 38(2007), p.145.

[10] Yu Zhi-wu, He Sa-sa. Reliability Analysis of Ultimate Bearing Capacity of Concrete-filled Tubular Steel Stub Columns. Engineering mechanics. Vol. 23 (2006), p.139.

[11] Xu Fuyou, Zhang Jianren, Hao Haixia. Reliability Analysis of Stability of Arch Rib of Concrete-filled Steel Tubular Arch Bridge. Journal of Changsha Jiaotong University. Vol. 20 (2004), p.6.

[12] Nowak AS. Calibration of LRFD Bridge Code. ASCE Journal of Structural Engineering; Vol. 121(1995), p.1245.

[13] Li Yanghai, Bao Weigang, Guo Xiuwu. Structure Reliability and Probabilistic Limit State Design of High-way Bridge. China Communications Press. (1997).

[14] Gao Qian, Wu Shunchuan. Reliability Theory and Application in Civil Engineering. China Building Industry Press. (2007).
