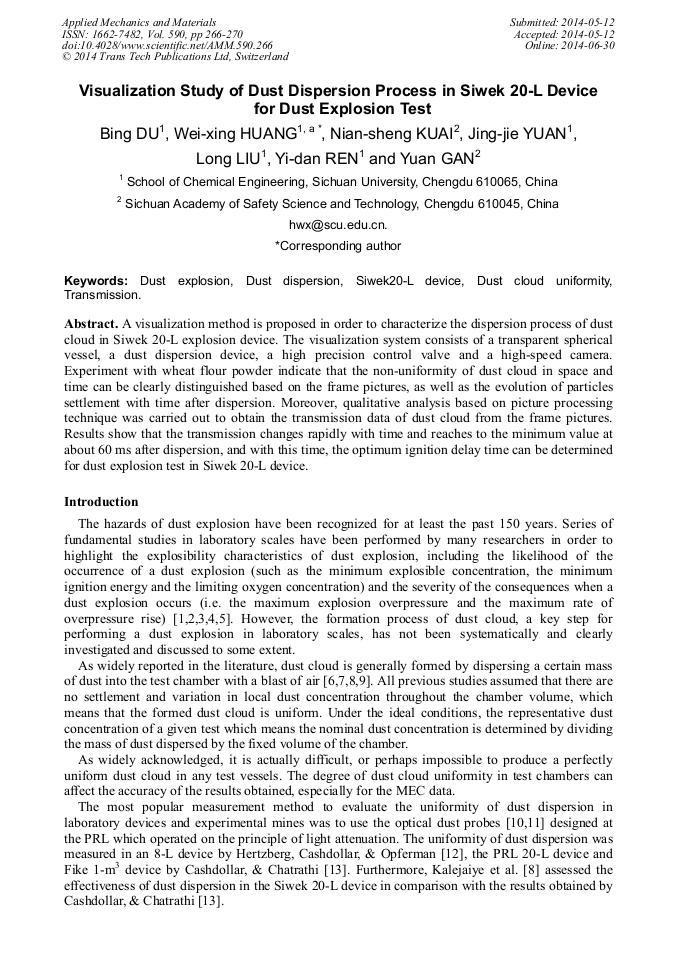

Visualization Study of Dust Dispersion Process in Siwek 20-L Device for Dust Explosion Test

Abstract:

A visualization method is proposed in order to characterize the dispersion process of dust cloud in Siwek 20-L explosion device. The visualization system consists of a transparent spherical vessel, a dust dispersion device, a high precision control valve and a high-speed camera. Experiment with wheat flour powder indicate that the non-uniformity of dust cloud in space and time can be clearly distinguished based on the frame pictures, as well as the evolution of particles settlement with time after dispersion. Moreover, qualitative analysis based on picture processing technique was carried out to obtain the transmission data of dust cloud from the frame pictures. Results show that the transmission changes rapidly with time and reaches to the minimum value at about 60 ms after dispersion, and with this time, the optimum ignition delay time can be determined for dust explosion test in Siwek 20-L device.

• Periodical: Applied Mechanics and Materials (Volume 590)
• Pages: 266-270
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.590.266
• Online since: June 2014
• Authors: Bing Du, Wei Xing Huang*, Nian Sheng Kuai, Jing Jie Yuan, Long Liu, Yi Dan Ren, Yuan Gan
• Keywords: Dust Cloud Uniformity, Dust Dispersion, Dust Explosion, Siwek20-L Device, Transmission

References

[1] K.L. Cashdollar, Overview of dust explosion characteristics, J. Loss Prev. Process Ind. 13(2000) 183-199.

[2] J.E. Going, K. Chatrathi, K.L. Cashdollar, Flammability limit measurements for dusts in 20-L and 1-m3 vessels, J. Loss Prev. Process Ind. 13 (2000) 209-219.

DOI: 10.1016/s0950-4230(99)00043-1

[3] R. Pilão, E. Ramalho, C. Pinho, Influence of initial pressure on the explosibility of cork dust/air mixtures, J. Loss Prev. Process Ind. 17 (2004) 87-96.

DOI: 10.1016/j.jlp.2003.09.008

[4] P.R. Amyotte, Solid inertants and their use in dust explosion prevention and mitigation, J. Loss Prev. Process Ind. 19 (2006) 161-173.

DOI: 10.1016/j.jlp.2005.05.008

[5] N.S. Kuai, J.M. Li, Z. Chen, W.X. Huang, J.J. Yuan, W.Q. Xu, Experiment-based investigations of magnesium dust explosion characteristics. J. Loss Prev. Process Ind. 24 (2011) 302-313.

DOI: 10.1016/j.jlp.2011.01.006

[6] K.L. Cashdollar, Coal dust explosibility, J. Loss Prev. Process Ind. 9 (1996) 65-76.

[7] R. Soundararajan, P.R. Amyotte, M.J. Pegg, Explosibility hazard of iron sulphide dusts as a function of particle size, J. Hazard. Mater. 51 (1996) 225-239.

DOI: 10.1016/s0304-3894(96)01825-0

[8] O. Kalejaiye, P.R. Amyotte, M.J. Pegg, K.L. Cashdollar, Effectiveness of dust dispersion in the 20-L Siwek chamber, J. Loss Prev. Process Ind. 23 (2010) 46-59.

DOI: 10.1016/j.jlp.2009.05.008

[9] N.S. Kuai, W.X. Huang, J.J. Yuan, B. Du, Z.S. Li, Y. Wu, Experimental investigations of coal dust-inertant mixture explosion behaviors, Procedia Engineering, 26, (2011). 1337-1345.

DOI: 10.1016/j.proeng.2011.11.2309

[10] K.L. Cashdollar, I. Liebman, R.S. Conti, Three bureau of mines optical dust probes, U.S. Bureau of Mines RI 8542, (1981).

[11] I. Liebman, R. Conti, K.L. Cashdollar, Dust cloud concentration probe, Review of Scientific Instruments, 48 (1977) 1314–1316.

DOI: 10.1063/1.1134872

[12] M. Hertzberg, K.L. Cashdollar, J.J. Opferman, The flammability of coal dust–air mixtures, U.S. Bureau of Mines RI 8360, (1979).

[13] K.L. Cashdollar, K. Chatrathi, Minimum explosible dust concentrations measured in 20-L and 1-m3 chambers, Combust. Sci. Technol. 87 (1992) 157–171.

DOI: 10.1080/00102209208947213

[14] ASTM, Standard test method for pressure and rate of pressure rise for combustible dusts -E 1226, West Conshohocken: ASTM international, (2007).

[15] CEN/TC305, Determination of explosion characteristics of dust clouds, Brussels: European Committee for Standardization, (2004).

[16] MCI, Determination for minimum explosive concentration of dust cloud, Beijing: State Administration for Quality Supervision and Inspection and Quarantine of China, (1996).

[17] W.E.K. Middleton, Bouger, Lambert, and the theory of horizontal visibility, Isis, 51 (1960) 145–149.
