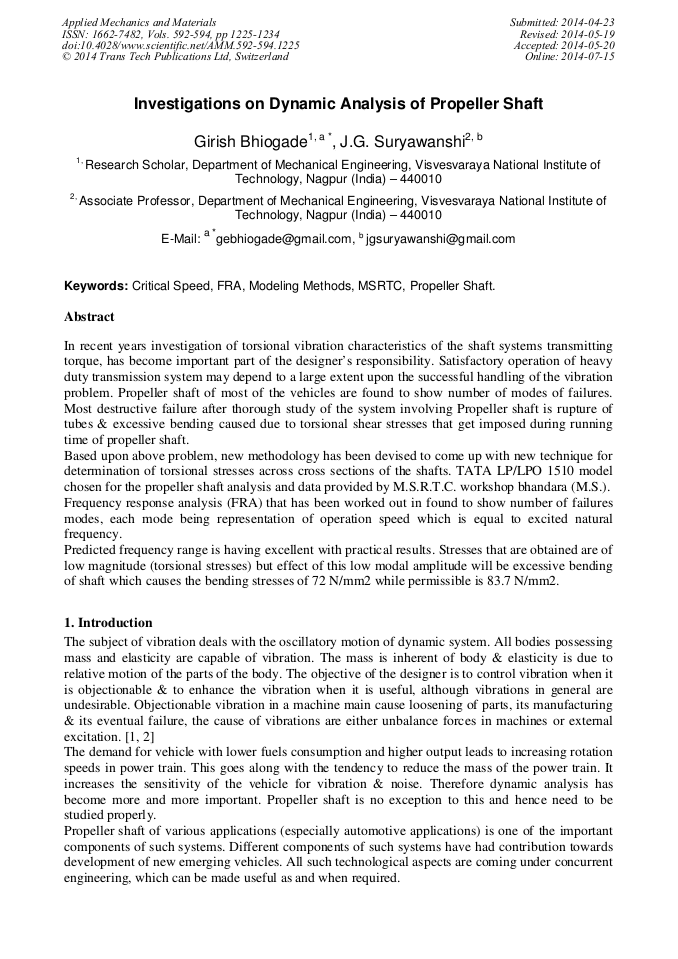

Investigations on Dynamic Analysis of Propeller Shaft

Abstract:

In recent years investigation of torsional vibration characteristics of the shaft systems transmitting torque, has become important part of the designer’s responsibility. Satisfactory operation of heavy duty transmission system may depend to a large extent upon the successful handling of the vibration problem. Propeller shaft of most of the vehicles are found to show number of modes of failures. Most destructive failure after thorough study of the system involving Propeller shaft is rupture of tubes & excessive bending caused due to torsional shear stresses that get imposed during running time of propeller shaft. Based upon above problem, new methodology has been devised to come up with new technique for determination of torsional stresses across cross sections of the shafts. TATA LP/LPO 1510 model chosen for the propeller shaft analysis and data provided by M.S.R.T.C. workshop bhandara (M.S.). Frequency response analysis (FRA) that has been worked out in found to show number of failures modes, each mode being representation of operation speed which is equal to excited natural frequency. Predicted frequency range is having excellent with practical results. Stresses that are obtained are of low magnitude (torsional stresses) but effect of this low modal amplitude will be excessive bending of shaft which causes the bending stresses of 72 N/mm2 while permissible is 83.7 N/mm2.

• Periodical: Applied Mechanics and Materials (Volumes 592-594)
• Pages: 1225-1234
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.592-594.1225
• Online since: July 2014
• Authors: Girish Bhiogade*, Jiwak G. Suryawanshi
• Keywords: Critical Speed, FRA, Modeling Methods, MSRTC, Propeller Shaft

References

[1] Hinkle. R.T. Morse, and Tse F. S, Mechanical Vibration Theory and Applications, CBS Publishers and Distributors, New Delhi. (2003).

[2] Den Hartog, J. P Mechanical Vibration, McGraw-Hill Book company, (1956).

[3] M. J Nunney, Light and Heavy Vehicle Technology, v Elsevier Ltd (2007).

[4] Harold T. Glenn, Auto mechanics, C.A. Bennett Company, (1962).

[5] Dr. Kirpal Singh, Automobile Engineering, VOL-I, Standard Publishers Distributors, (2004).

[6] R.B. Gupta, Automobile Engineering, 3rd edition, Satya Prakashan, (1982).

[7] S. S Rao, Mechanical Vibration, Pearson education Pvt. Ltd, Singapore, (2004).

[8] Wilson W. K, Practical Solution of Torsional Vibration Problem, Amplitude Calculation, London (1968).

[9] Jin kook kim et. al Investigation of adhesively bonded joints for composites of propeller shafts, journal of composite material, vol 35, pp.999-1021, (2001).

DOI: 10.1106/j5qd-b843-qexc-18eb

[10] Cho D.H. and Lee D.G. Manufacturing of co-curing aluminum composite shaft with compression during operation to reduce thermal stresses, Journal of composite materials, 32 : 1221-1241, (1997).

DOI: 10.1177/002199839803201205

[11] Shokrich M.M., Hasani K. and Lessard L. B, shear buckling of a composite drive shaft under torsion, Composite structure, 64: 63-69, (2004).

DOI: 10.1016/s0263-8223(03)00214-9

[12] Rangaswamy et. al. Optimal design and analysis of automotive composite drive shaft , International symposium of research student on material science and engineering, 2004, 19.

[13] Wilson W. K, Practical Solution of Torsional Vibration Problem, Frequency Calculation, London (1956).

[14] I.Y. Shen and Y.C. Pao, Torsional Vibration control of shaft through active constrained layer damping treatments., (1997).

DOI: 10.1115/1.2889752

[15] M. Arun and K. S. Vinoth Design and development of laminated aluminum glass fiber drive shaft for light duty vehicles, International journal of innovative technology and exploring engineering, ISSN : 2278-3075, vol -2, (2013).

[16] Service manual of TATA LP/LPO 1510, and Dynamic analysis of transmission shaft under guidance of M.E. (O) ST, Bhandara.
