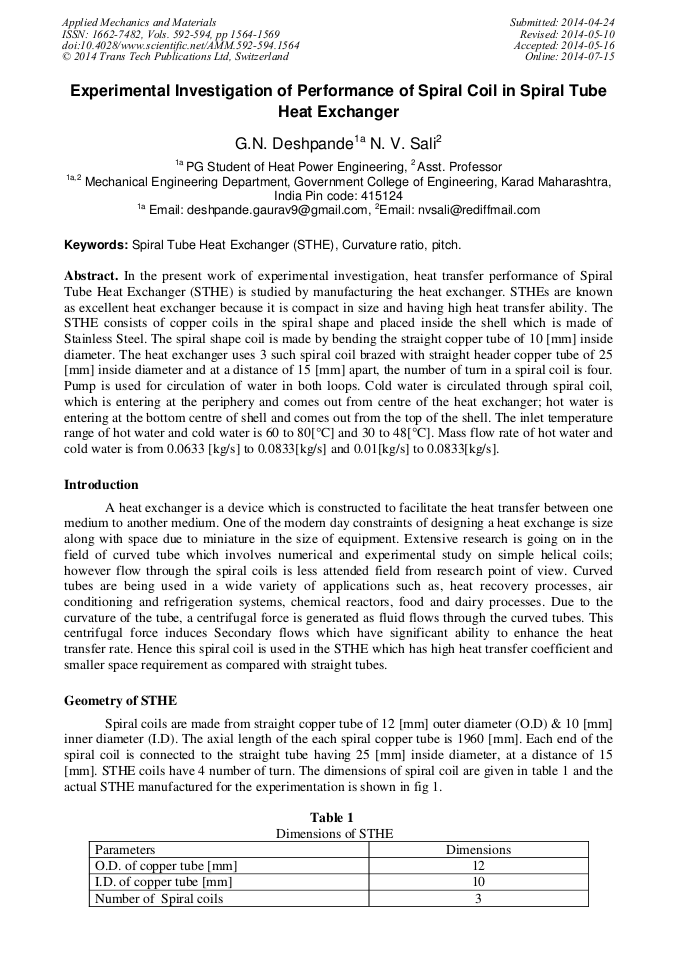

Experimental Investigation of Performance of Spiral Coil in Spiral Tube Heat Exchanger

Abstract:

In the present work of experimental investigation, the heat transfer performance of Spiral Tube Heat Exchanger (STHE) is studied by manufacturing the heat exchanger. STHEs are known as excellent heat exchanger because it is compact in size and having high heat transfer ability. The STHE consists of copper coils in the spiral shape and placed inside the shell which is made of Stainless Steel. The spiral shape coil is made by bending the straight copper tube of 10 mm inside diameter. The heat exchanger uses 3 such spiral coil brazed with straight header tube of 25 mm inside diameter and at a distance of 15mm apart, the number of turn in a spiral coil is four. Pump is used for circulation of water in both circuits. Cold water is circulated through spiral coil which entered at the periphery and comes out from centre; hot water is entered at the bottom centre of shell and comes out from the top of the shell. The inlet temperature range of hot water and cold water is 50 to 80°C and 30 to 48°C. Mass flow rate range of hot water and cold water is from 0.0633 kg/s to 0.0833kg/s and 0.01 kg/s to 0.0833kg/s.

• Periodical: Applied Mechanics and Materials (Volumes 592-594)
• Pages: 1564-1569
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.592-594.1564
• Online since: July 2014
• Authors: G.N. Deshpande*, Nitin V. Sali
• Keywords: Curvature Ratio, Pitch, Spiral Tube Heat Exchanger (STHE)

References

[1] P.N. Martín, T.P. Graham, M.R. Guillermo: Applied Thermal Engineering Elsevier Journal 1-8 (2013).

[2] G.E. Kondhalkar, V.N. Kapatkat : International Journal of Modern Engineering Research Vol. 2, Issue. 3, pp-930-936 (May-June 2012).

[3] M. A. Hossain, M I. Islam, S A. Ratul M.T. U. R. Erin: Global Science and Technology Journal Vol. 1. No. 1. Issue. Pp. 12-22 (July 2013).

[4] P. Naphon, J. Suwagrai : International Journal of Heat and Mass Transfer Science Direct 50 441-451(2007).

[5] P. Naphon, S. Wongwises: International Communications in Heat and Mass Transfer Pergamon Journal Vol. 29, No. 6, pp.797-809 (2002).

[6] P. Naphon, S. Wongwises: Engineering Physcis Thermophyscise 76: 71–9 (2003).

[7] P. Naphon, S. Wongwises: 2nd International Conference on Heat Transfer, Fluid Mechanics, and Thermodynamics, (24–26 June, 2003).

[8] H. Shokouhmand, M.R. Salimpour, M.A. Akhavan-BehabadiG: International Communication in Heat and Mass Transfer Science Direct 35 84–92 (2008).

[9] P. Naphon, S. Wongwises: Experimental Thermal and Fluid Science Elseveir Journal 29 511–521 (2005).

[10] P. Naphon: International Communications in Heat and Mass Transfer Elseveir Journal 34 321–330 (2007).

[11] M.A. A. Behabadi, M. F. Pakdaman, M. Ghazvini: International Communications in Heat and Mass Transfer Elseveir Journal 39 556–564 (2012).

DOI: 10.1016/j.icheatmasstransfer.2012.02.008

[12] H.A. Mohammed, K. Narrein: International Communications in Heat and Mass Transfer Elseveir Journal 39 1375–1383 (2012).

[13] M. F. Pakdaman, M.A.A. Behabadi, P. Razi: Experimental Thermal and Fluid Science Elseveir Journal 40 103–111 (2012).

[14] S.S. Pawar, V.K. Sunnapwar: Experimental Thermal and Fluid Science Elseveir Journal 44 792–804 (2013).

[15] H. Dhaou, N. B. Khedher, S. Mellouli, A. Souahlia, F. Askri, A. Jemni, S. B. Nasrallah: International Journal of Thermal Sciences Elseveir Journal 50 2536e2542 (2011).

DOI: 10.1016/j.ijthermalsci.2011.05.016
