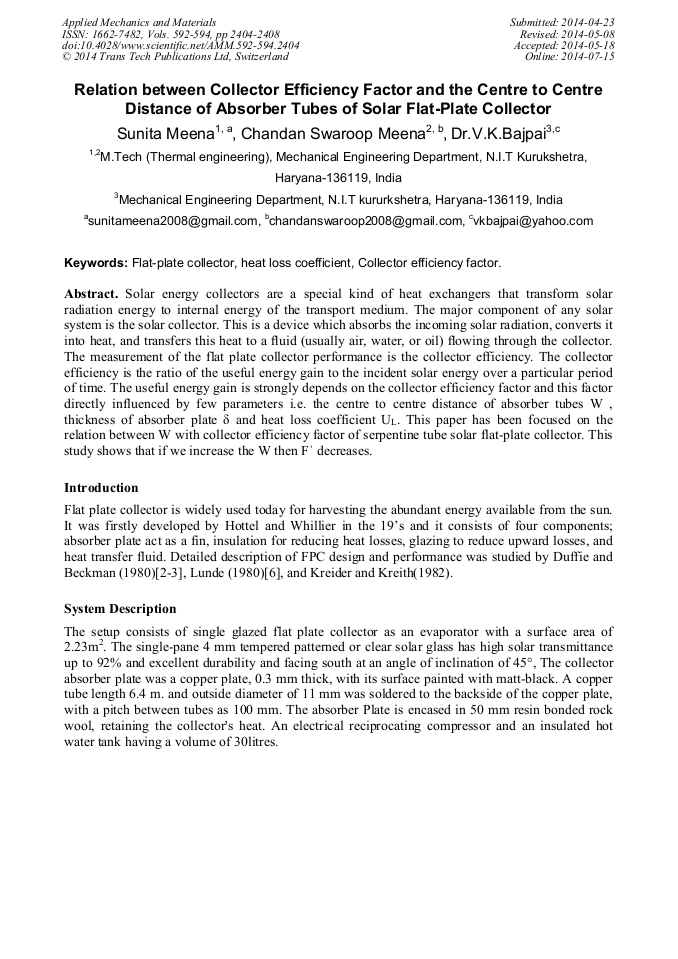

Relation between Collector Efficiency Factor and the Centre to Centre Distance of Absorber Tubes of Solar Flat-Plate Collector

Abstract:

Solar energy collectors are a special kind of heat exchangers that transform solar radiation energy to internal energy of the transport medium. The major component of any solar system is the solar collector. This is a device which absorbs the incoming solar radiation, converts it into heat, and transfers this heat to a fluid (usually air, water, or oil) flowing through the collector. The measurement of the flat plate collector performance is the collector efficiency. The collector efficiency is the ratio of the useful energy gain to the incident solar energy over a particular period of time. The useful energy gain is strongly depends on the collector efficiency factor and this factor directly influenced by few parameters i.e. the centre to centre distance of absorber tubes W , thickness of absorber plate δ and heat loss coefficient U_L. This paper has been focused on the relation between W with collector efficiency factor of serpentine tube solar flat-plate collector. This study shows that if we increase the W then Fˈ decreases.

• Periodical: Applied Mechanics and Materials (Volumes 592-594)
• Pages: 2404-2408
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.592-594.2404
• Online since: July 2014
• Authors: Sunita Meena*, Chandan Swaroop Meena, V.K. Bajpai
• Keywords: Collector Efficiency Factor, Flat-Plate Collector, Heat Loss Coefficient

References

[1] Zhang, H. -F. and Lavan, Z., Thermal performance of a serpentine absorber plate. Solar Energy, 1985, 34(2), 175-177.

DOI: 10.1016/0038-092x(85)90175-6

[2] Duffie, J.A., Beckman, W.A., 1991. Solar Engineering of Thermal Processes, second ed. Wiley Interscience, New York. p.268–272.

[3] Duffie, J. A. and Beckman, W. A., Solar Engineering of Thermal Processes. Wiley & Sons, New York, (1980).

[4] Hottel, H. C. and Whillier, A., Evaluation of flat plate collector performance. Trans. of the Conference on the Use of Solar Energy, Vol. 2. University of Arizona Press, (1958).

[5] Bliss, R. W., The derivations of several plate efficiency factors useful in the design of flat plate solar heat collectors. Solar Energy, 1959, 3, 55.

DOI: 10.1016/0038-092x(59)90006-4

[6] Lund, K.O., 1989. General thermal analysis of serpentine-flow flat plate solar collector absorbers. Solar Energy 42, 133– 142.

DOI: 10.1016/0038-092x(89)90140-0

[7] Huang B. J. and Chyng J. P. (1999) Integral type solar-assisted heat pump water heater. Renewable Energy 16, 731–734.

DOI: 10.1016/s0960-1481(98)00264-x

[8] Technical guide – Solar thermal systems, Viessmann GmbH, (2009).
