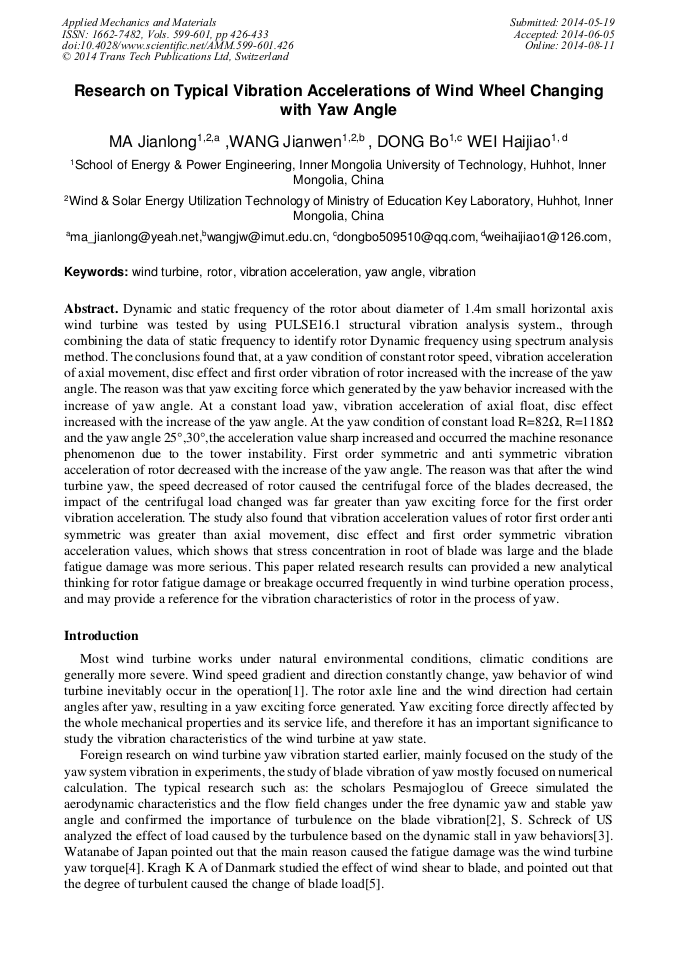

Research on Typical Vibration Accelerations of Wind Wheel Changing with Yaw Angle

Abstract:

Dynamic and static frequency of the rotor about diameter of 1.4m small horizontal axis wind turbine was tested by using PULSE16.1 structural vibration analysis system., through combining the data of static frequency to identify rotor Dynamic frequency using spectrum analysis method. The conclusions found that, at a yaw condition of constant rotor speed, vibration acceleration of axial movement, disc effect and first order vibration of rotor increased with the increase of the yaw angle. The reason was that yaw exciting force which generated by the yaw behavior increased with the increase of yaw angle. At a constant load yaw, vibration acceleration of axial float, disc effect increased with the increase of the yaw angle. At the yaw condition of constant load R=82Ω、R=118Ω and the yaw angle 25°,30°,the acceleration value sharp increased and occurred the machine resonance phenomenon due to the tower instability. First order symmetric and anti symmetric vibration acceleration of rotor decreased with the increase of the yaw angle. The reason was that after the wind turbine yaw, the speed decreased of rotor caused the centrifugal force of the blades decreased, the impact of the centrifugal load changed was far greater than yaw exciting force for the first order vibration acceleration. The study also found that vibration acceleration values of rotor first order anti symmetric was ​​greater than axial movement, disc effect and first order symmetric vibration acceleration values, which shows that stress concentration in root of blade was large and the blade fatigue damage was more serious. This paper related research results can provided a new analytical thinking for rotor fatigue damage or breakage occurred frequently in wind turbine operation process, and may provide a reference for the vibration characteristics of rotor in the process of yaw.

• Periodical: Applied Mechanics and Materials (Volumes 599-601)
• Pages: 426-433
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.599-601.426
• Online since: August 2014
• Authors: Jian Long Ma*, Jian Wen Wang, Bo Dong, Hai Jiao Wei
• Keywords: Rotor, Vibration, Vibration Acceleration, Wind Turbine (WT), Yaw Angle

References

[1] Li Benli, in: Wind turbine structural dynamics, edtied by Beijing University of Aeronautics & Astronautics, Beijing (1999), in press.

[2] S.D. Pesmajoglou, J.M.R. Graham. Prediction of aerodynamic forces on horizontal axis wind turbines in free yaw and turbulence, J. Journal of Wind Engineering and Industrial Aerodynamics, 88, 1 (2000),P. 1-14.

DOI: 10.1016/s0167-6105(99)00125-7

[3] S. Schreck, M. Robinson, M. Hand, at al. HAWT Dynamic Stall Response Asymmetries under Yawed Flow Conditions,J. Wind Energy, 3(2000), pp.215-232.

DOI: 10.1002/we.40

[4] F. Watanabe, T. Takahashi,H. Tokuyama, at al. Modelling passive yawing motion of horizontal axis small wind turbine: Derivation of new simplified equation for maximum yaw rate ,J. Wind Engineering, 36, 4(2012), pp.433-442.

DOI: 10.1260/0309-524x.36.4.433

[5] K.A. Kragh, M.H. Hansen. Load alleviation of wind turbines by yaw misalignment,J. Wind Energy, 2013, pp.1-16.

DOI: 10.1002/we.1612

[6] Liu Bo, Zhang Zhihao, He Shanfeng, at al. Primary research for crosswind factor resulting in vibration of wind turbine ,J. Acta Energiae Solaris Sinica, 8, 3(1987), pp.227-232.

[7] Yang Jun, Qin Da-tong. Influence of side wind on aerodynamic performance of wind turbine,J. Acta Energiae Solaris Sinica, 32, 4(2011), pp.537-542.

[8] Chen Jiahui, Wang Tongguang. Aeroelastic responses calculation of wind turbine blade in yaw condition ,J. Journal of Nanjing University of Aeronautics & Astronautics, 34, 5(2011), pp.629-634.

[9] Dong Li, Liao Mingfu. Calculation of dynamic load for wind turbine,J. Mechanical Science and Technology for Aerospace Engineering, 31, 5(2012), pp.827-841.

[10] MA Jianlong, WANG Jianwen, DONG Bo, at al. Experimental modal analysis on low-frequency vibration characteristics of wind turbine,J. Journal of Vibration and Shock, 32, 16(2013), pp.164-170.
