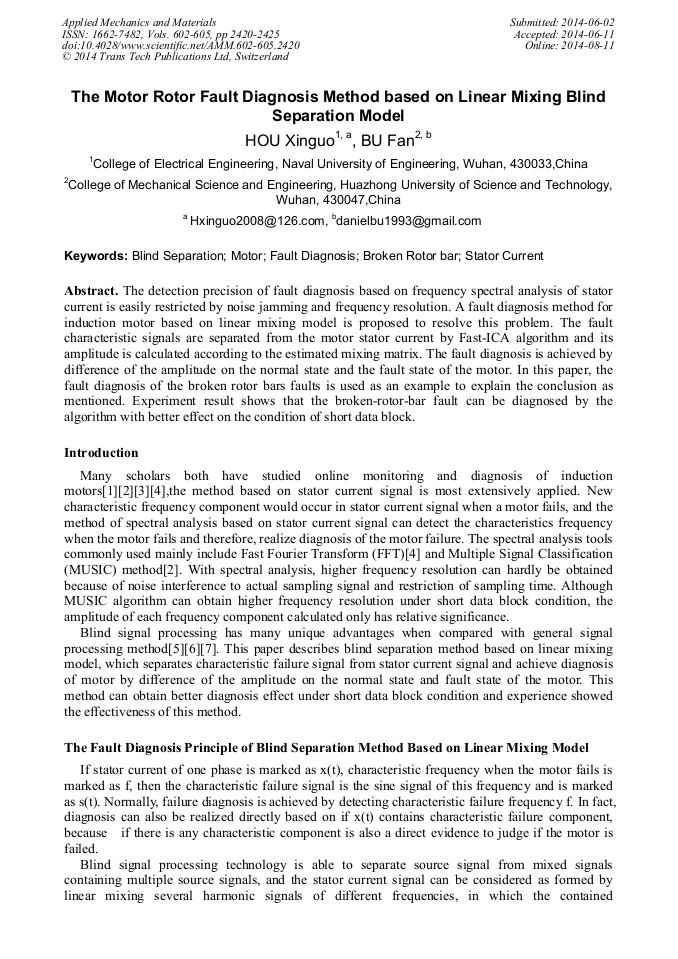

The Motor Rotor Fault Diagnosis Method Based on Linear Mixing Blind Separation Model

Abstract:

The detection precision of fault diagnosis based on frequency spectral analysis of stator current is easily restricted by noise jamming and frequency resolution. A fault diagnosis method for induction motor based on linear mixing model is proposed to resolve this problem. The fault characteristic signals are separated from the motor stator current by Fast-ICA algorithm and its amplitude is calculated according to the estimated mixing matrix. The fault diagnosis is achieved by difference of the amplitude on the normal state and the fault state of the motor. In this paper, the fault diagnosis of the broken rotor bars faults is used as an example to explain the conclusion as mentioned. Experiment result shows that the broken-rotor-bar fault can be diagnosed by the algorithm with better effect on the condition of short data block.

• Periodical: Applied Mechanics and Materials (Volumes 602-605)
• Pages: 2420-2425
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.602-605.2420
• Online since: August 2014
• Authors: Xin Guo Hou*, Fan Bu
• Keywords: Blind Separation, Broken Rotor Bar, Fault Diagnosis, Motor, Stator Current

References

[1] Hou Xinguo, Liu Kaipei; Stator Fault Diagnosis of Induction Motor by Using Pixel Coding Technology; Journal of Vibration, Measurement & Diagnosis, 2009, , 29(2): 171-174.

[2] Hou Xinguo, Wu Zhengguo, Xia Li; Rotor Fault Diagnosis Method of Asynchronous Motor Via Park's Vector Modulus Square Function; Journal of Chinese Electrical Engineering, 2003, 23(9): 137-140.

[3] LI Yu, HOU Xin-guo, HU Wen-biao, et al. Application of Discrete Spectrum Correction Technology for Induction Machine Rotor Fault Diagnosis[J]. Journal of Naval University of Engineering, 2013, 25(4): 41-45.

[4] Burnett R, Watson J F, Elder S, Application of modern signal processing techniques for use in rotor fault detection and location within three-phase induction motors[J]. Proceedings, Integrating Instrumentation and Control., IEEE 1995, pp.426-431.

DOI: 10.1109/imtc.1995.515308

[5] Fang Fang, Yang Shiyuan, Hou Xinguo，Feature Extracting Method for Rotor Fault of Induction Motor Based on Independent Component Analysis[J], Journal of Data Acquisition & Processing. 2007，22（4）: 496-500.

[6] XIANG Dong-yang, WU Zheng-guo, HU Wen-biao, et al，A composite fault diagnosis method of induction motor based on blind signal processing[J], Power system Protection and Control, 2010，38（23）：103—107.

DOI: 10.1109/cmce.2010.5610266

[7] Liu Zhenxing, Zhang Zhe, Yin Xianggen; A Summary of On-line Condition Monitoring and Fault Diagnostics for 3-phase Induction Motors; Journal of Wuhand University of Science and Technology, 2000，24 (3): 28-288.

[8] ZHANG Jing-chun, GU Ai-yu, WANG Zhan-meng, Electric Motor Fault Diagnosis Based on Blind Source Separation[J], Proceedings of the CUS-EPSA，2006，18（4）：67-70.

[9] Yang Fusheng, Hong Bo; Principle and Application of Independent Component Analysis; Qinghua University Publishing House, (2006).
