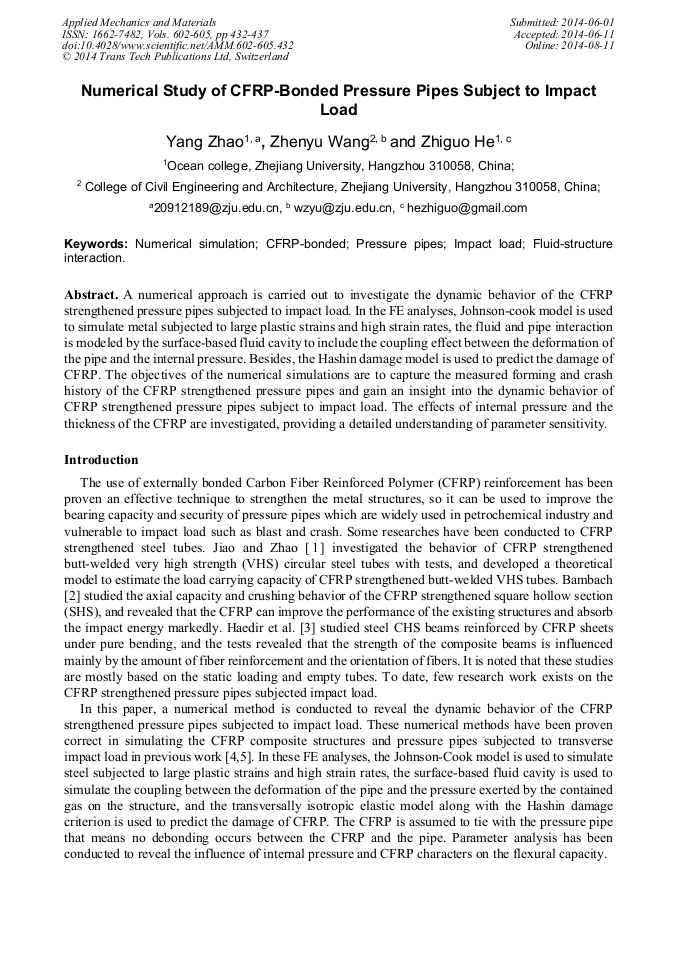

Numerical Study of CFRP-Bonded Pressure Pipes Subject to Impact Load

Abstract:

A numerical approach is carried out to investigate the dynamic behavior of the CFRP strengthened pressure pipes subjected to impact load. In the FE analyses, Johnson-cook model is used to simulate metal subjected to large plastic strains and high strain rates, the fluid and pipe interaction is modeled by the surface-based fluid cavity to include the coupling effect between the deformation of the pipe and the internal pressure. Besides, the Hashin damage model is used to predict the damage of CFRP. The objectives of the numerical simulations are to capture the measured forming and crash history of the CFRP strengthened pressure pipes and gain an insight into the dynamic behavior of CFRP strengthened pressure pipes subject to impact load. The effects of internal pressure and the thickness of the CFRP are investigated, providing a detailed understanding of parameter sensitivity.

• Periodical: Applied Mechanics and Materials (Volumes 602-605)
• Pages: 432-437
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.602-605.432
• Online since: August 2014
• Authors: Yang Zhao*, Zhen Yu Wang, Zhi Guo He
• Keywords: CFRP-Bonded, Fluid Structure Interaction (FSI), Impact Load, Numerical Simulation, Pressure Pipes

References

[1] CFRP strengthened butt-welded very highstrength (VHS) circular steel tubes. Thin-Walled Structures, 42(2004), pp.963-978.

DOI: 10.1016/j.tws.2004.03.003

[2] M.R. Bambach. Axial capacity and crushing behavior of metal-fiber square tubes - Steel, stainless steel and aluminum with CFRP. Composites: Part B, 41(2010), pp.550-559.

DOI: 10.1016/j.compositesb.2010.06.002

[3] Haedir, J., Bambach, M. R., Zhao, X. L., and Grzebieta, R. H. , Strength of circular hollow sections (CHS) tubular beams externally reinforced by carbon FRP sheets in pure bending, Thin Wall Struct, 47(2009), No 10, pp.1136-1147.

DOI: 10.1016/j.tws.2008.10.017

[4] Zhenyu Wang, Yang Zhao, Xu Liang, and Zhiguo He, Analysis of the Dynamic Response in Blast-Loaded CFRP-Strengthened Metallic Beams, Advances in Materials Science and Engineering, Volume 2013 (2013).

DOI: 10.1155/2013/521404

[5] Yang Zhao, Guowei Ma, Zhenyu Wang, Numerical study on high-velocity impact behavior of the pressure pipes, International Journal of Pressure Vessels and Piping, in review.

[6] Johnson GR, Cook WH. A constitutive model and data for metals subjected to large strains, high strain rates and high temperatures. In: Proceedings of the Seventh Symposium on Ballistic, Hague, Netherlands, 1983, pp.541-547.

[7] Johnson GR, Cook WH. Fracture characteristics of three metals subjected to various strains, strain rates, temperatures and pressures. Engineering Fracture Mechanics, 21(1985), pp.31-48.

DOI: 10.1016/0013-7944(85)90052-9

[8] Pantale O, Bacaria JL, Dalverny O, Rakotomalala R, Caperaa S. 2D and 3D numerical models of metal cutting with damage effects. Computer Methods in Applied Mechanics and Engineering, Vol. 193(2004), No. 39-41, pp.4383-4399.

DOI: 10.1016/j.cma.2003.12.062

[9] ABAQUS (2012). Abaqus 6. 12 User Documentation. Dessault Systems.

[10] Rezaei A, Verhelst R, Van Paepege W, Degrieck J. Finite element modelling and experimental study of oblique soccer ball bounce. J Sports Sci, 29, (2011), No. 11, pp.1201-1213.

DOI: 10.1080/02640414.2011.587443

[11] M.R. Bambach, X.L. Zhao, and H. Jama, Energy absorbing characteristics of aluminium beams strengthened with CFRP subjected to transverse blast load. International Journal of Impact Engineering, 37(2010) No. 1, pp.37-49.

DOI: 10.1016/j.ijimpeng.2009.06.007

[12] Chase MW, Jr. NIST-JANAF Thermochemical Tables. 4th ed. Journal of Physical and Chemical Reference Data, 1998, Monograph 9(4).
