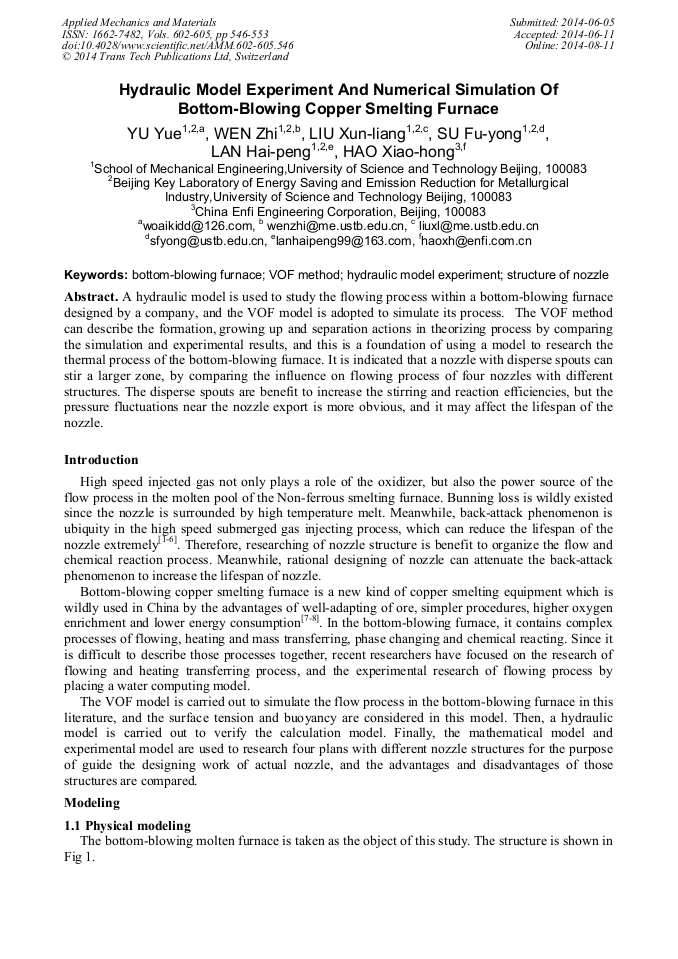

Hydraulic Model Experiment and Numerical Simulation of Bottom-Blowing Copper Smelting Furnace

Abstract:

A hydraulic model is used to study the flowing process within a bottom-blowing furnace designed by a company, and the VOF model is adopted to simulate its process. The VOF method can describe the formation, growing up and separation actions in theorizing process by comparing the simulation and experimental results, and this is a foundation of using a model to research the thermal process of the bottom-blowing furnace. It is indicated that a nozzle with disperse spouts can stir a larger zone, by comparing the influence on flowing process of four nozzles with different structures. The disperse spouts are benefit to increase the stirring and reaction efficiencies, but the pressure fluctuations near the nozzle export is more obvious, and it may affect the lifespan of the nozzle.

• Periodical: Applied Mechanics and Materials (Volumes 602-605)
• Pages: 546-553
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.602-605.546
• Online since: August 2014
• Authors: Yue Yu*, Zhi Wen, Xun Liang Liu, Fu Yong Su, Hai Peng Lan, Xiao Hong Hao
• Keywords: Bottom-Blowing Furnace, Hydraulic Model Experiment, Structure of Nozzle, VOF Method

References

[1] Taylor I F, Wright J K, Philp D K. Transient pressure and vibration events resulting from high speed gas injection into liquids[J]. Canadian Metallurgical Quarterly, 1988, 27(4): 293-301.

DOI: 10.1179/cmq.1988.27.4.293

[2] Wei J H, Ma J C, Fan Y Y, et al. Back-attack phenomena of gas jets with submerged horizontally blowing and effects on erosion and wear of refractory lining[J]. ISIJ international, 1999, 39: 779-786.

DOI: 10.2355/isijinternational.39.779

[3] Martin M, Diaz M. Gas-liquid and gas-liquid-liquid reactors with top and bottom blowing: I. Fluid dynamic regimes[J]. Chemical Engineering Communications, 2002, 189(4): 543-570.

DOI: 10.1080/00986440212088

[4] Fabritius T M J, Mure P T, Härkki J J. The determination of the minimum and operational gas flow rates for sidewall blowing in the AOD-Converter[J]. ISIJ international, 2003, 43(8): 1177-1184.

DOI: 10.2355/isijinternational.43.1177

[5] Tang J N, Wang N F, Shyy W. Flow structures of gaseous jets injected into water for underwater propulsion[J]. ActaMechanicaSinica, 2011, 27(4): 461-472.

DOI: 10.1007/s10409-011-0474-4

[6] Shi H H, Guo Q, Wang C, et al. Oscillation flow induced by underwater supersonic gas jets[J]. Shock Waves, 2010, 20(4): 347-352.

DOI: 10.1007/s00193-010-0270-2

[7] QU Sheng-li, LI Tian-gang, DONG Zhu-qin, et al. Plant practice of and design discussion on oxygen enriched bottom blowing smelting [J]. Nonferrous Metals (Extractive Metallurgy), 2012 (3): 10-13.

[8] CHEN Zhi-ruo. The application of oxygen bottom-blown bath smelting of copper [J]. China Academic Journal Electronic Publishing House, 2009, 10(5): 16-22.

[9] CHENG Shuai. Experimental study on three-dimensional underwater supersonic gas jets [D]. Zhejiang Sci-Tech University, (2012).

[10] SHI Hong-hui, GUO Qiang, WANG Chao, et al. Experiments on the relationship between bulging and back-attack of submerged supersonic gas jets[J]. Chinese Journal of Theoretical and Applied Mechanics, 2010, 6: 027.
