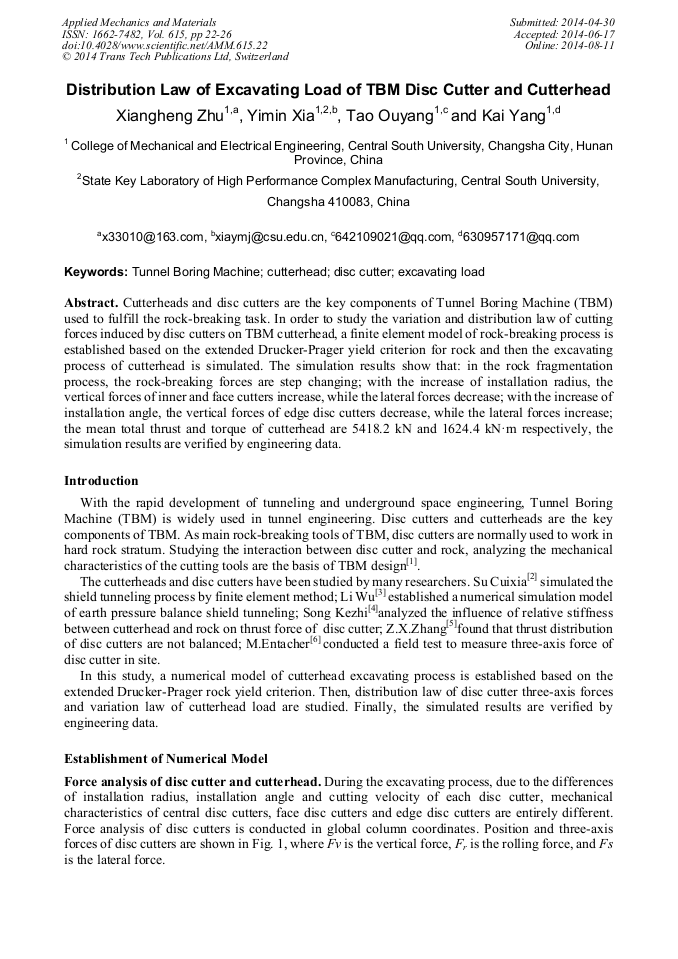

Distribution Law of Excavating Load of TBM Disc Cutter and Cutterhead

Abstract:

Cutterheads and disc cutters are the key components of Tunnel Boring Machine (TBM) used to fulfill the rock-breaking task. In order to study the variation and distribution law of cutting forces induced by disc cutters on TBM cutterhead, a finite element model of rock-breaking process is established based on the extended Drucker-Prager yield criterion for rock and then the excavating process of cutterhead is simulated. The simulation results show that: in the rock fragmentation process, the rock-breaking forces are step changing; with the increase of installation radius, the vertical forces of inner and face cutters increase, while the lateral forces decrease; with the increase of installation angle, the vertical forces of edge disc cutters decrease, while the lateral forces increase; the mean total thrust and torque of cutterhead are 5418.2 kN and 1624.4 kN·m respectively, the simulation results are verified by engineering data.

• Periodical: Applied Mechanics and Materials (Volume 615)
• Pages: 22-26
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.615.22
• Online since: August 2014
• Authors: Xiang Heng Zhu*, Yi Min Xia, Tao Ouyang, Kai Yang
• Keywords: Cutterhead, Disc Cutter, Excavating Load, Tunnel Boring Machine
