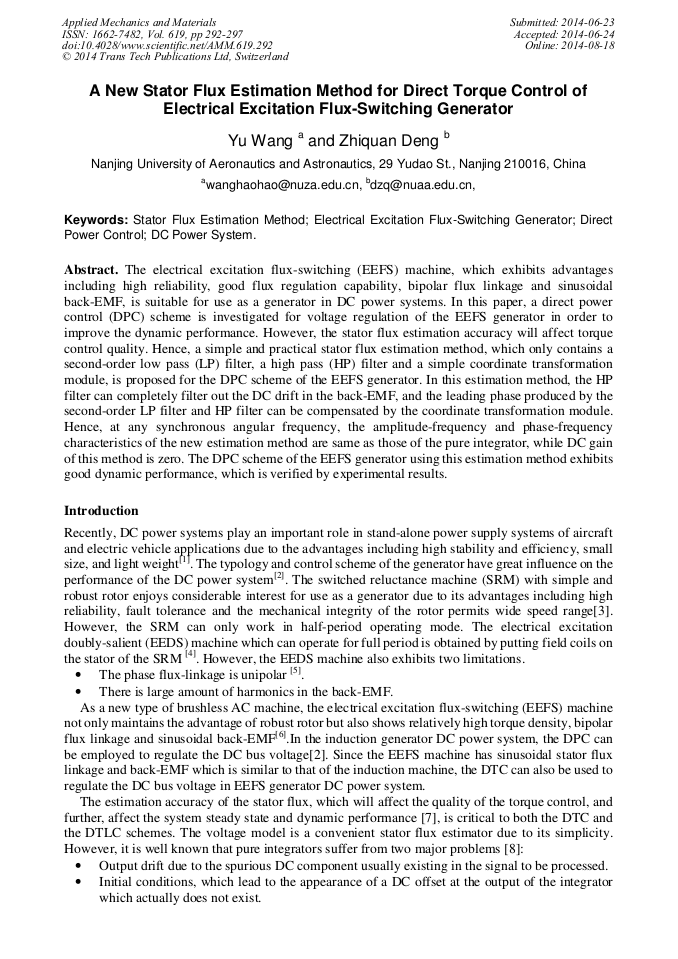

A New Stator Flux Estimation Method for Direct Torque Control of Electrical Excitation Flux-Switching Generator

Abstract:

The electrical excitation flux-switching (EEFS) machine, which exhibits advantages including high reliability, good flux regulation capability, bipolar flux linkage and sinusoidal back-EMF, is suitable for use as a generator in DC power systems. In this paper, a direct power control (DPC) scheme is investigated for voltage regulation of the EEFS generator in order to improve the dynamic performance. However, the stator flux estimation accuracy will affect torque control quality. Hence, a simple and practical stator flux estimation method, which only contains a second-order low pass (LP) filter, a high pass (HP) filter and a simple coordinate transformation module, is proposed for the DPC scheme of the EEFS generator. In this estimation method, the HP filter can completely filter out the DC drift in the back-EMF, and the leading phase produced by the second-order LP filter and HP filter can be compensated by the coordinate transformation module. Hence, at any synchronous angular frequency, the amplitude-frequency and phase frequency characteristics of the new estimation method are same as those of the pure integrator, while DC gain of this method is zero. The DPC scheme of the EEFS generator using this estimation method exhibits good dynamic performance, which is verified by experimental results.

• Periodical: Applied Mechanics and Materials (Volume 619)
• Pages: 292-297
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.619.292
• Online since: August 2014
• Authors: Yu Wang*, Zhi Quan Deng
• Keywords: DC Power System, Direct Power Control, Electrical Excitation Flux-Switching Generator, Stator Flux Estimation Method

References

[1] Y. Amara, L. Vido, M. Gabsi, and E. Hoang, A. Hamid Ben Ahmed, M. Lecrivain, Hybrid Excitation Synchronous Machines: Energy-Efficient Solution for Vehicles Propulsion, IEEE Trans. Vehicu. Technol., vol. 58, no. 5, pp.2137-2149, Jun. (2009).

DOI: 10.1109/tvt.2008.2009306

[2] Yuwen Hu, Wenxin Huang, and Yong Li, A Novel Instantaneous Torque Control Scheme for Induction Generator Systems, IEEE Trans. on Energy Convers., vol. 25, no. 3, pp.795-803, Sep. (2010).

DOI: 10.1109/tec.2009.2025327

[3] H. Hannoun, M. Hilairet, and C. Marchand, Design of an SRM Speed Control Strategy for a Wide Range of Operating Speeds, IEEE Trans. Ind. Electron., vol. 57, no. 9, pp.2911-2921, Sept. (2010).

DOI: 10.1109/tie.2009.2038396

[4] Z.R. Zhang, Y.G. Yan, Y.Y. Tao and B. Zhou, Influence of winding inductance on output characteristic of low speed doubly salient wind power generator, " in Proc. IEEE ICEMS, 09, Tokyo, Japan, pp.1-4, Nov. (2009).

DOI: 10.1109/icems.2009.5382681

[5] Z.Q. Zhu and J.T. Chen, Advanced flux-switching permanent magnet brushless machine, IEEE Trans. Magn., vol. 46, no. 6, p.1447–1452, Jun. (2010).

DOI: 10.1109/tmag.2010.2044481

[6] J.T. Chen, Z.Q. Zhu, S. Iwasaki, and R. Deodhar, Low cost flux-switching brushless AC machines, " in Proc. IEEE VPPC, 10, Lille, North France, pp.1-6, Sep. (2010).

DOI: 10.1109/vppc.2010.5728984

[7] N.R.N. Idris and A.H.M. Yatim, An improved stator flux estimation in steady-state operation for direct torque control of induction machines, IEEE Trans. Ind. Appl., vol. 38, no. 1, pp.110-116, Jan. /Feb. (2002).

DOI: 10.1109/28.980364

[8] Myoung-Ho Shin, Dong-Seok Hyun, Soon-Bong Cho, and Song-Yul Choe, An improved stator flux estimation for speed sensorless stator flux orientation control of induction motors, IEEE Trans. Power Electron., vol. 15, no. 2, pp.312-318, Mar. (2000).

DOI: 10.1109/63.838104

[9] Hu J, and Wu B, New integration algorithms for estimating motor flux over a wide speed range, IEEE Trans. Power Electron., vol. 13, no. 5, pp.969-977, Sep. (1998).

DOI: 10.1109/63.712323

[10] M. Cirrincione, M. Pucci, G. Cirrincione and G.A. Capolino, A new adaptive integration methodology for estimating flux in induction machine drives, IEEE Trans. Power Electron., vol. 19, no. 1, pp.25-34, Jan. (2004).

DOI: 10.1109/tpel.2003.820565

[11] B.K. Bose and N.R. Patel, A programmable cascaded low-pass filter-based flux synthesis for a stator flux-oriented vector-controlled induction motor drive, IEEE Trans. Ind. Electron., vol. 44, no. 1, p.140–143, Feb. (1997).

DOI: 10.1109/41.557511
