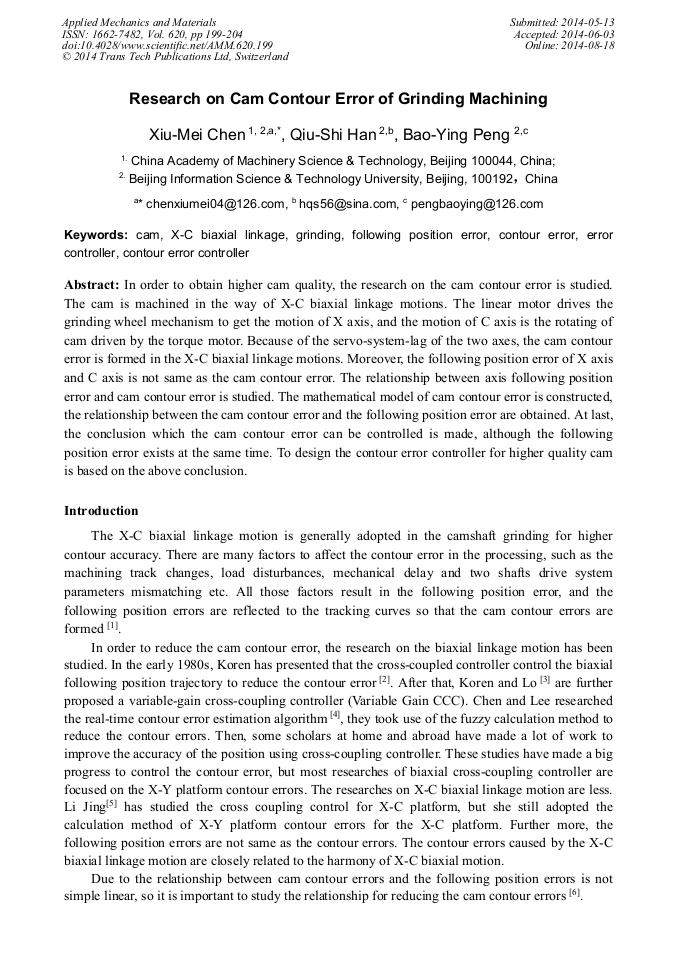

Research on Cam Contour Error of Grinding Machining

Abstract:

In order to obtain higher cam quality, the research on the cam contour error is studied. The cam is machined in the way of X-C biaxial linkage motions. The linear motor drives the grinding wheel mechanism to get the motion of X axis, and the motion of C axis is the rotating of cam driven by the torque motor. Because of the servo-system-lag of the two axes, the cam contour error is formed in the X-C biaxial linkage motions. Moreover, the following position error of X axis and C axis is not same as the cam contour error. The relationship between axis following position error and cam contour error is studied. The mathematical model of cam contour error is constructed, the relationship between the cam contour error and the following position error are obtained. At last, the conclusion which the cam contour error can be controlled is made, although the following position error exists at the same time. To design the contour error controller for higher quality cam is based on the above conclusion.

• Periodical: Applied Mechanics and Materials (Volume 620)
• Pages: 199-204
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.620.199
• Online since: August 2014
• Authors: Xiu Mei Chen*, Qiu Shi Han, Bao Ying Peng
• Keywords: CAM, Contour Error, Contour Error Controller, Error Controller, Following Position Error, Grinding, X-C Biaxial Linkage

References

[1] Bao-Ying Peng. Embedded direct-drive Functional Components servo Control Strategy for High-Grade CNC Machine Tools[D]. Beijing, Beijing University of Technology, (2013).

[2] Y. Koren. Cross-coupled biaxial computer for manufacturing systems. ASME Journal of Dynamic Systems, Meas Control, 1980, 102(4): 265~272.

DOI: 10.1115/1.3149612

[3] Y. Koren, C.C. Lo. Variable-gain cross-coupling controller for contouring. Ann CIRP, 1991, 40: 371~374.

DOI: 10.1016/s0007-8506(07)62009-5

[4] M.Y. Cheng, C.C. Lee Motion controller design for contour following tasks based on real-time contour error estimation, IEEE Transactions on Industrial Electronics. 2007, 54 (3): 1686~1695.

DOI: 10.1109/tie.2007.894691

[5] Li Jing, He Yong-Yi, FANG Minglun, etc. YAO Jun, Cross-coupled Contour Control with Variable Parameters Based on Differential Evolution Algorithm in Crankshaft Non-circular Grinding[J]. JOURNAL OF MECHANICAL ENGINEERING, 2011, 47(9): 139-145.

DOI: 10.3901/jme.2011.09.139

[6] Sun Tao, Liu Qiang. Study on Contour Error Compensation Method. MACHINE TOOL & HYDRAULICS[J], 2010(5), Vol. 38, No. 9: 37-39.

[7] Zhang Qiu-Ju. Cross-coupled contouring control of multi-axial CNC machine tools. Modular Machine Tool ＆ Automatic Manufacturing Technique [J], 2001(12): 19-22.

[8] Mathematics Department of Tongji University. Higher Mathematics[M]. Beijing: Higher education press, 2007(4): 170-174.

[9] Cheng M Y, Lee C⁃C C. Motion controller design for contour-following tasks based on real-Time contour error estimation. IEEE Trans Ind Electron, 2007, 54(3): 1686-1695.

DOI: 10.1109/tie.2007.894691

[10] Sun D, Tong M C. A synchronization approach for the minimization of contouring errors of CNC machine tools. IEEE Trans Auto SciEng, 2009, 6(4): 720-729.

DOI: 10.1109/tase.2009.2021970

[11] Zhang H, Landers R. G. Precision motion control methodology for complex contours. ASME J Manuf Sci Eng, 2007, 129(6): 1060-1068.

DOI: 10.1115/1.2769728

[12] Xiao Benxian, The Research of Contour Following Error Control and Compensating Methods for Multi-axes Motion[D]. Anhui: Hefei University of Technology, (2004).

[13] Wu GangHua, Research on the key technique on Noncircular Crankshaft Grinding[D]. Shanghai: SHANGHAI UNIVERSITY Doctoral Dissertation, (2006).
