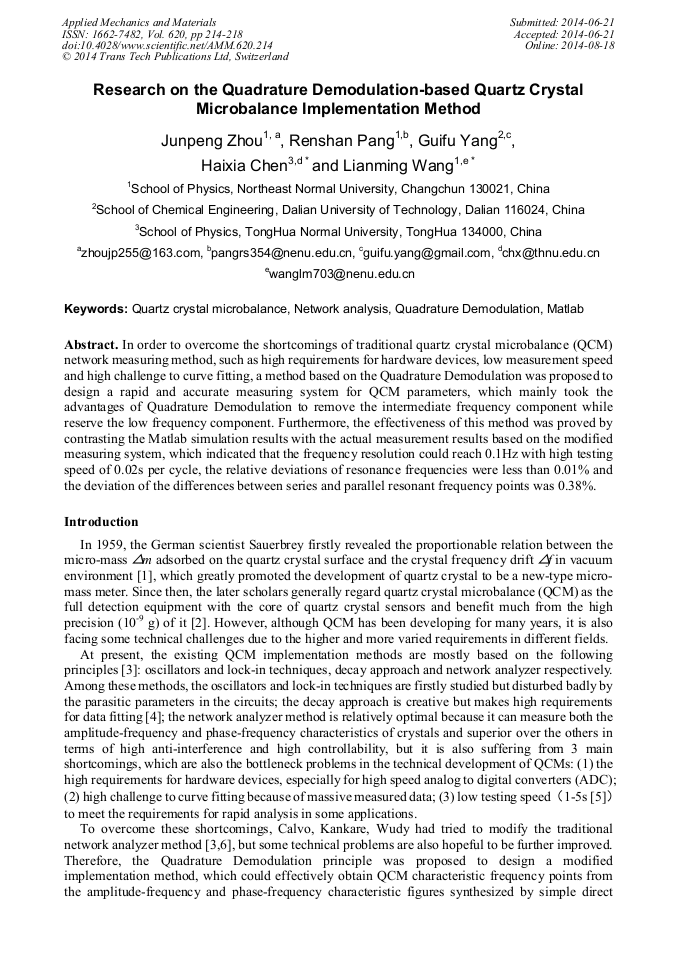

Research on the Quadrature Demodulation-Based Quartz Crystal Microbalance Implementation Method

Abstract:

In order to overcome the shortcomings of traditional quartz crystal microbalance (QCM) network measuring method, such as high requirements for hardware devices, low measurement speed and high challenge to curve fitting, a method based on the Quadrature Demodulation was proposed to design a rapid and accurate measuring system for QCM parameters, which mainly took the advantages of Quadrature Demodulation to remove the intermediate frequency component while reserve the low frequency component. Furthermore, the effectiveness of this method was proved by contrasting the Matlab simulation results with the actual measurement results based on the modified measuring system, which indicated that the frequency resolution could reach 0.1Hz with high testing speed of 0.02s per cycle, the relative deviations of resonance frequencies were less than 0.01% and the deviation of the differences between series and parallel resonant frequency points was 0.38%.

• Periodical: Applied Mechanics and Materials (Volume 620)
• Pages: 214-218
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.620.214
• Online since: August 2014
• Authors: Jun Peng Zhou, Ren Shan Pang, Gui Fu Yang, Hai Xia Chen, Lian Ming Wang*
• Keywords: MATLAB, Network Analysis, Quadrature Demodulation, Quartz Crystal Microbalance

References

[1] G. Sauerbrey, Verwendung von Schwingquarzen zur Wagung dunner Schichten und zur Microwagang, Z. Phys. 155 (1959) 206-212.

DOI: 10.1007/bf01337937

[2] M.A. Cooper, V.T. Singleton, A survey of the 2001 to 2005 quartz crystal microbalance biosensor literature, J. Mol. Recognit. 20 (2007) 154-184.

DOI: 10.1002/jmr.826

[3] A. Arnau, A Review of Interface Electronic Systems for AT-cut Quartz Crystal Microbalance Applications in Liquids, Sensors. 8 (2008) 370-411.

DOI: 10.3390/s8010370

[4] M. Rodahl, B. Kasemo, A simple setup to simultaneously measure the resonant frequency and the absolute dissipation factor of a quartz crystal microbalance, Rev. Sci. Instrum. 67 (1996) 3238-3241.

DOI: 10.1063/1.1147494

[5] J. Schröder, R. Borngräber, R. Lucklum, P. Hauptmann, Network analysis based interface electronics for quartz crystal microbalance, Rev. Sci. Instr. 72 (2001) 2750-2755.

DOI: 10.1063/1.1370560

[6] E.J. Calvo, R. Etchenique, P.N. Barlett, Quartz crystal impedance studies at 10 MHz of viscoelastic liquids and films, Faraday Discuss. 107 (1997) 141-157.

DOI: 10.1039/a703551i

[7] Information on http: /www. gamry. com /application-notes.

[8] K.K. Kanazawa, J.G. Gordon, The oscillation frequency of a quartz resonator in contact with a liquid, Anal. Chem. 175 (1985) 99-105.

DOI: 10.1016/s0003-2670(00)82721-x
