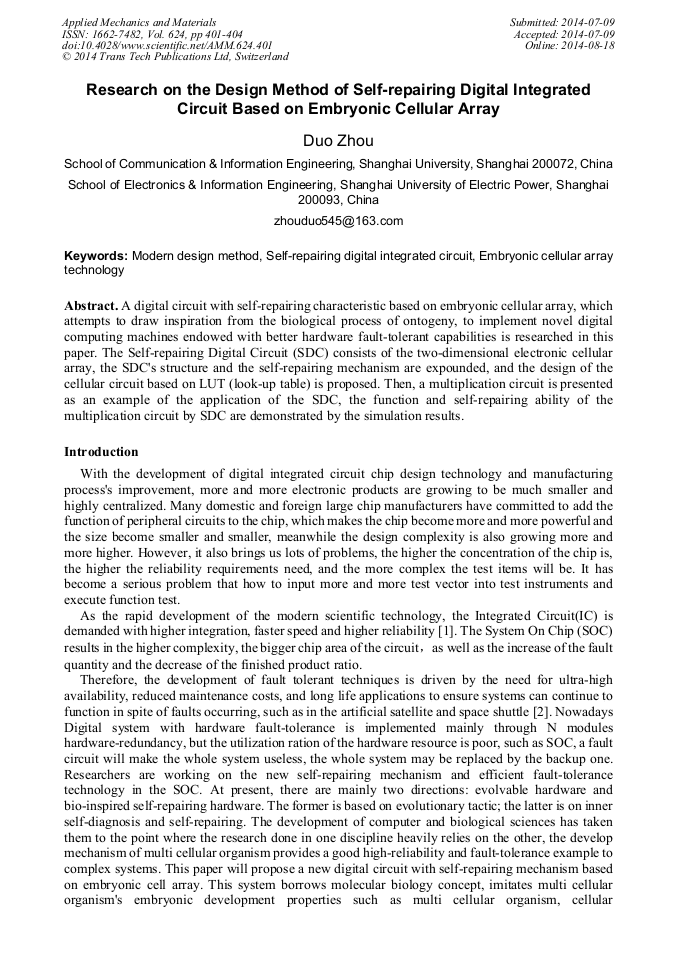

Research on the Design Method of Self-Repairing Digital Integrated Circuit Based on Embryonic Cellular Array

Abstract:

A digital circuit with self-repairing characteristic based on embryonic cellular array, which attempts to draw inspiration from the biological process of ontogeny, to implement novel digital computing machines endowed with better hardware fault-tolerant capabilities is researched in this paper. The Self-repairing Digital Circuit (SDC) consists of the two-dimensional electronic cellular array, the SDC's structure and the self-repairing mechanism are expounded, and the design of the cellular circuit based on LUT (look-up table) is proposed. Then, a multiplication circuit is presented as an example of the application of the SDC, the function and self-repairing ability of the multiplication circuit by SDC are demonstrated by the simulation results.

• Periodical: Applied Mechanics and Materials (Volume 624)
• Pages: 401-404
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.624.401
• Online since: August 2014
• Authors: Duo Zhou
• Keywords: Embryonic Cellular Array Technology, Modern Design Method, Self-Repairing Digital Integrated Circuit

References

[1] Gianluca Tempesti, Pierre-Andr'e Mudry, and Ralph Hoffmann: A Move Processor for Bio-Inspried Systems. The seventh NASA/DoD workshop on Evolvable Hardware. p.262, (2005).

DOI: 10.1109/eh.2005.3

[2] Levi. HereBoy: a fast evolutionary algorithm Evolvable Hardware. The Second NASA/DoD Workshop on Evolvable Hardware, p.17, (2000).

DOI: 10.1109/eh.2000.869338

[3] C. Ortega an A.M. Tyrrell. A Hardware Implementation an Embryonic Architecture using Virtex FPGAs. The 3rd International Conference on Evolvable Systems. Edinburgh, p.155, (2000).

DOI: 10.1007/3-540-46406-9_16
