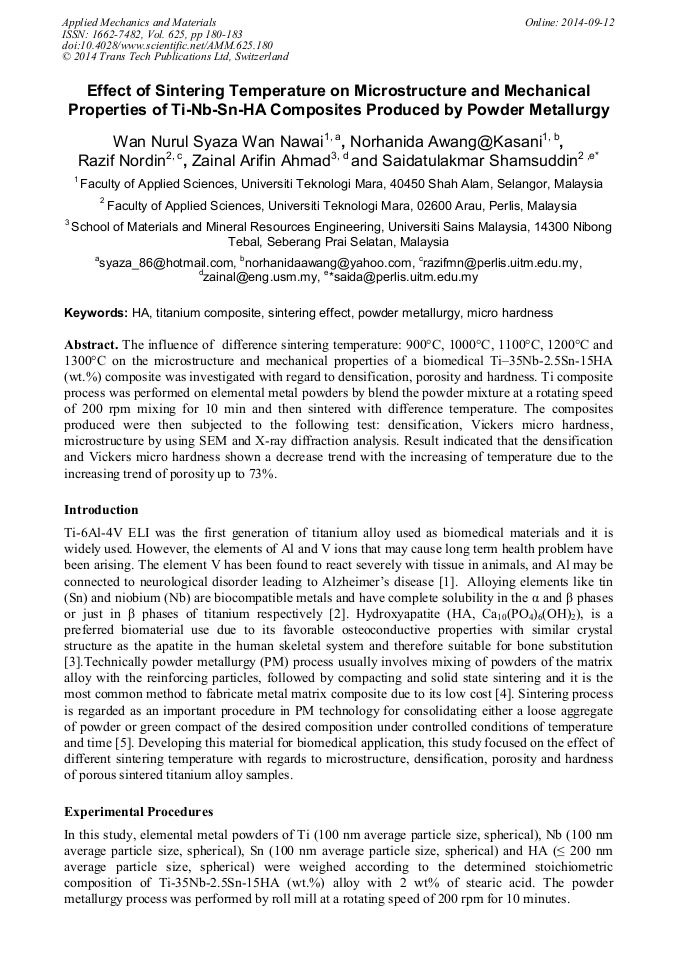

Effect of Sintering Temperature on Microstructure and Mechanical Properties of Ti-Nb-Sn-HA Composites Produced by Powder Metallurgy

Abstract:

The influence of difference sintering temperature: 900°C, 1000°C, 1100°C, 1200°C and 1300°C on the microstructure and mechanical properties of a biomedical Ti–35Nb-2.5Sn-15HA (wt.%) composite was investigated with regard to densification, porosity and hardness. Ti composite process was performed on elemental metal powders by blend the powder mixture at a rotating speed of 200 rpm mixing for 10 min and then sintered with difference temperature. The composites produced were then subjected to the following test: densification, Vickers micro hardness, microstructure by using SEM and X-ray diffraction analysis. Result indicated that the densification and Vickers micro hardness shown a decrease trend with the increasing of temperature due to the increasing trend of porosity up to 73%.

• Periodical: Applied Mechanics and Materials (Volume 625)
• Pages: 180-183
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.625.180
• Online since: September 2014
• Authors: Wan Nurul Syaza Wan Nawai, Norhanida Awang Kasani, Razif Nordin, Zainal Arifin Ahmad, Saidatulakmar Shamsuddin*
• Keywords: HA, Microhardness, Powder metallurgy, Sintering Effect, Titanium Composite

References

[1] H.C. Hsu, S.C. Wu, S.K. Hsu, J.Y. Syu, W.F. Ho. The structure and mechanical properties of as-cast Ti-25Nb-xSn alloys for biomedical applications, Materials Science & Engineering A, 568 (2013) 1-7.

DOI: 10.1016/j.msea.2013.01.002

[2] A. Nouri, P.D. Hodgson, C.E. Wen. Effect of process control agent on the porous structure and mechanical properties of biomedical Ti-Sn-Nb alloy prodeuce by powder metallurgy, Acta Biomaterialia, 6 (2010) 1630-1639.

DOI: 10.1016/j.actbio.2009.10.005

[3] E. Mohseni, E. Zalnezhad, A.R. Bushroa. Comparative investigation on the adhesion of hydroxyapatite coating on Ti–6Al–4V implant: A review paper, International Journal of Adhesion and Adhesives, 48 (2014) 238–257.

DOI: 10.1016/j.ijadhadh.2013.09.030

[4] S. Shamsuddin, S.B. Jamalauddin., Z. Hussain, Z.A. Ahmad. Compressive and wear resistance of alumina reinforced Fe-Cr matrix composites. Advances Materials Research., 620 (2013) 362-367.

DOI: 10.4028/www.scientific.net/amr.620.362

[5] P.C. Angelo & R. Subramanian. Powder Metallurgy Science, Technology and Applications, PHI Learning Private Limited, New Delhi, (2009) p.126.

[6] X. Wang, Y. Chen, L. Xu, Z. Liu, K.D. Woo. Effect of Sn content on the microstructure, mechanical properties and biocompatibility of Ti-Nb-Sn/hydroxyapatite biocomposites synthesized by powder metallurgy. J Materials and Design, 49 (2013) 511-519.

DOI: 10.1016/j.matdes.2013.01.012

[7] F. Xie, X. He, S. Cao, M. Mei, X. Qu. Influence of pore characteristics on microstructure, mechanical properties and corrosion resistance of selective laser sintered porous Ti-Mo alloys for biomedical application, Electrochimica Acta, 105 (2013).

DOI: 10.1016/j.electacta.2013.04.105

[8] F.F. Lange. Densification of powder compacts: An unfinished story, Journal of European Ceramics Society, 28 (2008) 1509-1516.

DOI: 10.1016/j.jeurceramsoc.2007.12.016

[9] V. V. Akimov, M. V. Akimov,M. S. Korytov,M. V. Plastinina. Effect of porosity on elastic characteristics of TiC/TiNi hard alloys, Journal of Applied Mechanics and Technical Physics, 50 (2009) 658-660.

DOI: 10.1007/s10808-009-0088-9

[10] N. Kurgan. Effect of porosity and density on the mechanical and microstructural properties of sintered 316L stainless steel implant materials, Materials and Design, 55 (2014) 235-241.

DOI: 10.1016/j.matdes.2013.09.058

[11] B. Yalcin. Effect of porosity on the mechanical properties and wear performance of 2% copper reinforced sintered steel used in shock absorber piston production, J. Mater. Sci. Technol, 25 (2009) 577-582.
