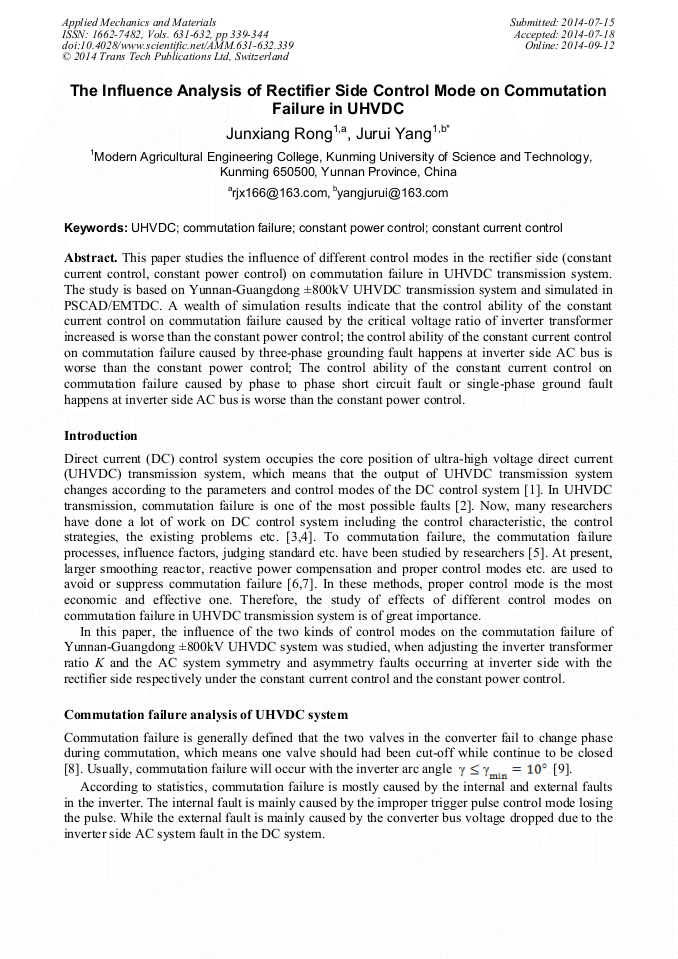

The Influence Analysis of Rectifier Side Control Mode on Commutation Failure in UHVDC

Abstract:

This paper studies the influence of different control modes in the rectifier side (constant current control, constant power control) on commutation failure in UHVDC transmission system. The study is based on Yunnan-Guangdong ±800kV UHVDC transmission system and simulated in PSCAD/EMTDC. A wealth of simulation results indicate that the control ability of the constant current control on commutation failure caused by the critical voltage ratio of inverter transformer increased is worse than the constant power control; the control ability of the constant current control on commutation failure caused by three-phase grounding fault happens at inverter side AC bus is worse than the constant power control; The control ability of the constant current control on commutation failure caused by phase to phase short circuit fault or single-phase ground fault happens at inverter side AC bus is worse than the constant power control.

• Periodical: Applied Mechanics and Materials (Volumes 631-632)
• Pages: 339-344
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.631-632.339
• Online since: September 2014
• Authors: Jun Xiang Rong, Ju Rui Yang
• Keywords: Commutation Failure, Constant Current Control, Constant Power Control, UHVDC

References

[1] Dong Jun, Shu Hongchun, Tang Lan, et al. Stable operation and control of yunnan power grid in 2010[J]. Power System Technology, 2005, 29(10): 20-24.

[2] REN Zhen, CHEN Yongjin, LIANG Zhensheng, et al. Probability analysis of commutation failure in HVDC transmission systems[J]. Automation of Electric Power Systems, 2004, 28(24): 19-22.

[3] DONG Manling, LI Xiaolin, HE Junjia．Electromagnetic transient response characteristics of internal faults in UHVDC converter station and corresponding control strategy[J]．Power System Technology, 2010, 34(3): 5-10.

[4] CHEN Wenbin, YAN Bin, ZHANG Yao, LIN Lingxue. Simulation of fault in UHVDC AC side based on EMTDC[J]. Power System Protection and Control, 2009, 37(11): 15-18.

[5] LIN Lingxue, ZHANG Yao, et al. A survey on commutation failure in multi-infeed HVDC transmission systems[J]. Power System Technology, 2006, 30(17): 40-46.

[6] CHEN Shuyong, LI Xinnian, YU Jun, et al. A method based on the sin-cos components detection mitigates commutation failure in HVDC[J]. Proceedings of the CSEE, 2005, 25(14): 1-6.

[7] HE Chaorong, LI Xingyuan, JIn Xiaoming, et al. Simulation analysis on commutation failure criteria for HVDC transmission systems[J]. Power System Technology, 2007, 31(1): 20-24.

[8] OU Kaijian, REN Zhen, JING Yong, et al. Research on commutation in HVDC transmission system part 1: commutation failure factors analysis [J]. Electric Power Automation Equipment, 2003, 23(5): 5-8.

DOI: 10.1109/icpst.2002.1053600

[9] WANG Gang, LI Zhikeng, HUANG Min, et al. Influence of initial fault voltage angle on commutation failure identification in a HVDC system[J]. Automation of Electric Power Systems, 2010, 34(4): 49-54, 102.

[10] CHEN Shilong, SHU Hongchun, ZHEN Ying. Study of commutation failure and control ofYunnan-Guangdong UHVDC transmission system which runs in negative pole state[J]. Electric Power Automation Equipment, 2013, 33(6): 128-133.

[11] Xu Zheng. Analysis of dynamic behavior of AC / DC power system[M]. Beijing: China Machine Press, (2004).

[12] Li Xingyuan. The operation and control of HVDC transmission system[M]. Beijing: Science Press, (1998).
